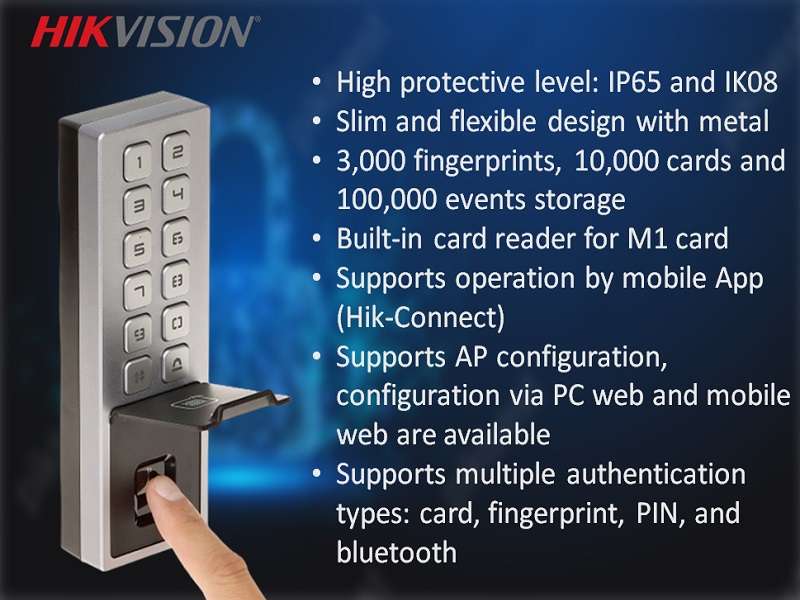

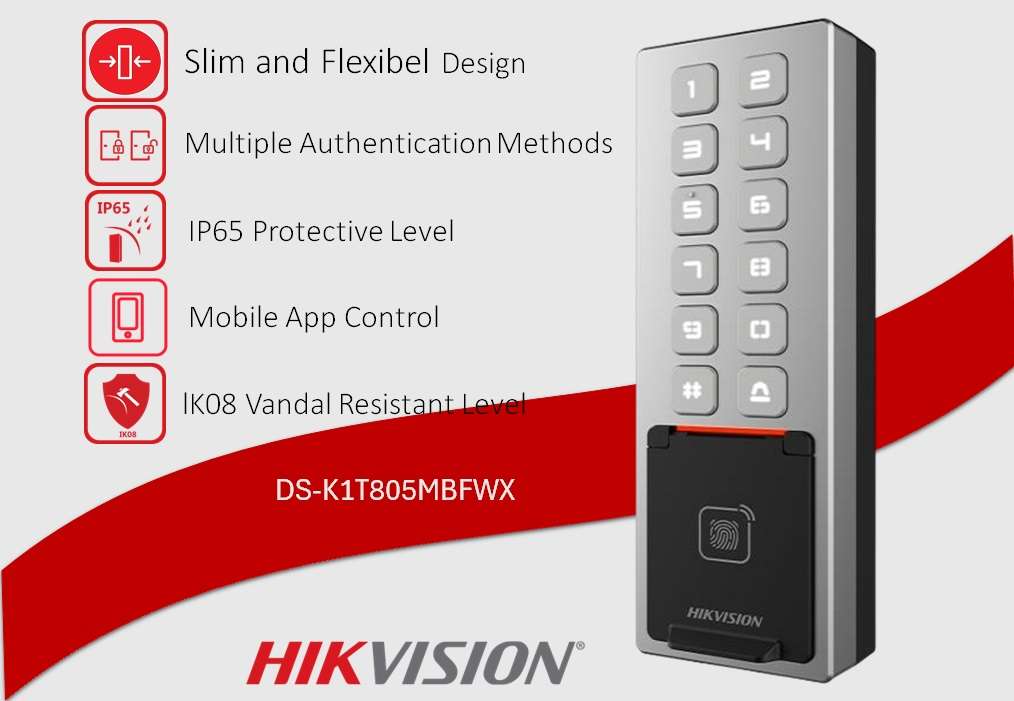

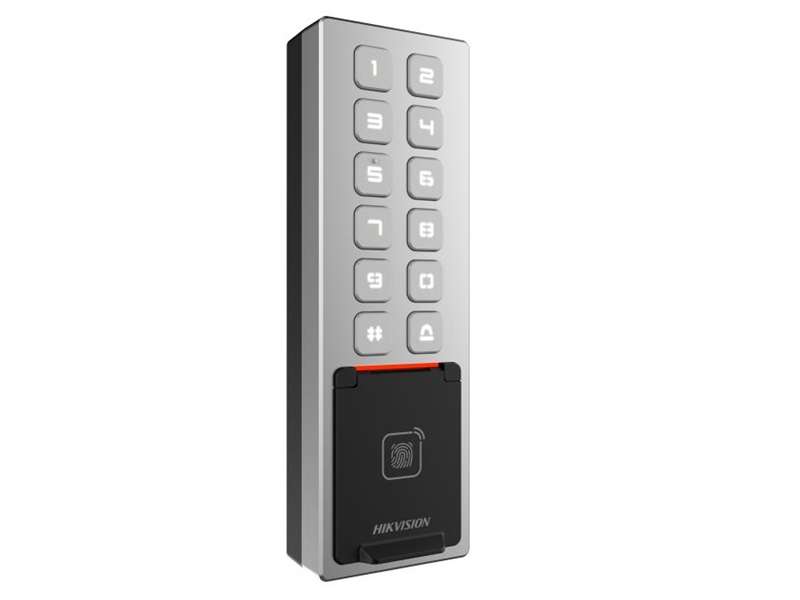

Access Control Terminal
High protective level: IP65 and IK08
Slim and flexible design with metal
3,000 fingerprints, 10,000 cards and 100,000 events storage
Built-in card reader for M1 card
Supports operation by mobile App (Hik-Connect)
Supports AP configuration, configuration via PC web and mobile web are available
Supports multiple authentication types: card, fingerprint, PIN, and bluetooth
System
Operating System
Linux
Audio
Audio Output
1 built-in buzzer
Network
Bluetooth
Support
Wired Network
10/100 Mbps self-adaptive
Wi-Fi
2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i
Interface
RS-485
1, supports OSDP
Network Interface
1
Wiegand
Wiegand 26/34
Lock Control
1
Exit Button
1
Door Contact Input
1
Alarm Input
2
Alarm Output
1
TAMPER
1
Capacity
Card Capacity
10,000
Fingerprint Capacity
3000
Event Capacity
100,000
Authentication
Card Type
M1 card
Card Reading Distance
0 to 4 cm
Card Reading Duration
`a3`bc 1 s
Fingerprint Module
Optical fingerprint module
Fingerprint Comparing Mode
1:1 and 1:N
Fingerprint Recognition Duration
`a3`bc 1 s
General
Power Supply
12 VDC/1 A
Working Temperature
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
Working Humidity
0% to 90% (no condensing)
Dimensions
57.7 mm `d7 177 mm `d7 34.6 mm (2.3" `d7 7.0" `d7 1.4")
Power Consumption
12 W
Language
English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
Function
Hik-Connect
Support
Configuration Via Web Browser
Support PC web configuration and mobile web operation
