| Brand | HIKVISION |
|---|

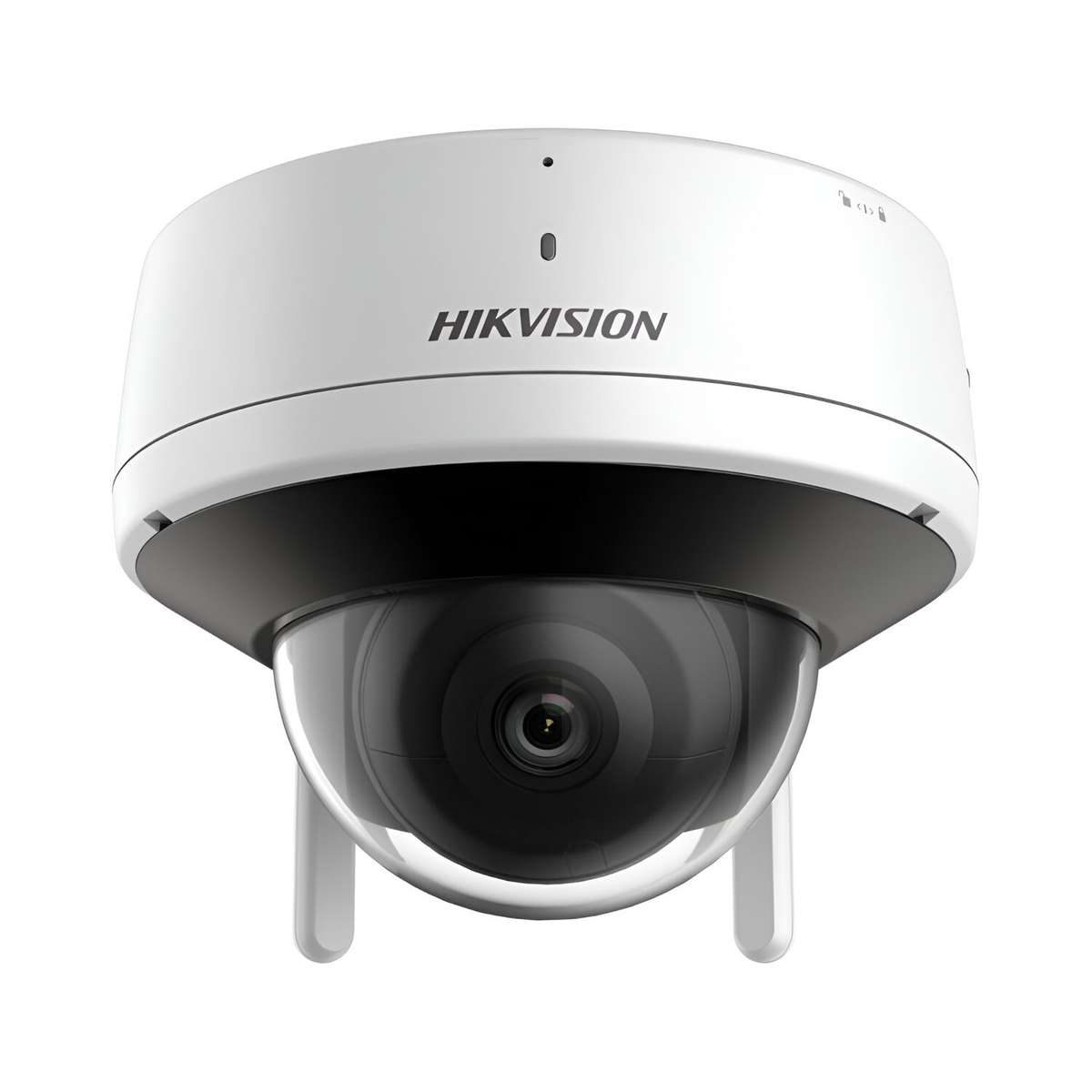

| Model | Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 2MP |
|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|
| Max. Resolution | 1920 × 1080 (2MP) |
|---|
| Min. Illumination | Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR |
|---|
| Shutter Time | 1/3 s to 1/10,000 s |
|---|
| Day & Night | IR cut filter |
|---|
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
|---|
| Lens Type | Fixed focal lens (4mm) |
|---|
| Focal Length & Field of View (FOV) | Horizontal FOV 75°, Vertical FOV 41°, Diagonal FOV 89° |
|---|
| Aperture | F1.6 |
|---|
| Iris Type | Fixed |
|---|
| Lens Mount | M12 |
|---|
| Depth of Field | 4mm: 2m to |
|---|
| 4mm | Detection (D): 52m, Observation (O): 21m, Recognition (R): 11m, Identification (I): 5m |
|---|
| Supplement Light Type | IR |
|---|
| IR Wavelength | 850nm |
|---|
| Supplement Light Range | Up to 30m |
|---|
| Smart Supplement Light | Yes |
|---|
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
|---|
| Sub-Stream | 50Hz: 25fps (768 × 432, 512 × 288) 60Hz: 30fps (768 × 432, 512 × 288) |
|---|
| Video Compression | Main Stream: H.264 Sub-Stream: H.264 |
|---|
| Video Bit Rate | 32 Kbps to 8 Mbps |
|---|
| H.264 Type | Baseline Profile/Main Profile/High Profile |
|---|
| Audio Compression | G.711 / AAC-LC |
|---|
| Audio Bit Rate | 64Kbps (G.711)/1664Kbps (AAC-LC) |
|---|
| Audio Sampling Rate | 8kHz / 16kHz |
|---|
| Environment Noise Filtering | Yes |
|---|
| Protocols Supported | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS |
|---|
| Simultaneous Live View | Up to 6 channels |
|---|
| API | ONVIF, SDK |
|---|
| Client | Hik-Connect, iVMS-4200, Hik-Partner-Pro |
|---|
| Security Features | Password protection, HTTPS encryption, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface |
|---|
| Transfer Rate | 11b: Up to 54 Mbps, 11g: Up to 54 Mbps, 11n: Up to 150 Mbps |
|---|
| Wi-Fi Protocols | IEEE 802.11b/g/n |
|---|
| Frequency Range | 2.412 GHz to 2.472 GHz |
|---|
| Channel Bandwidth | 20 MHz |
|---|
|
