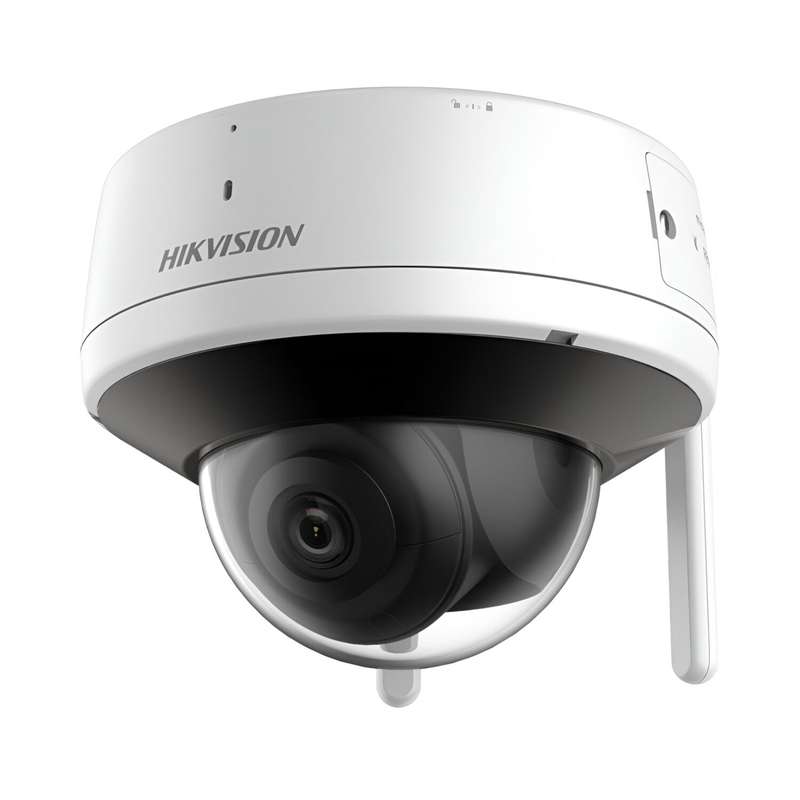

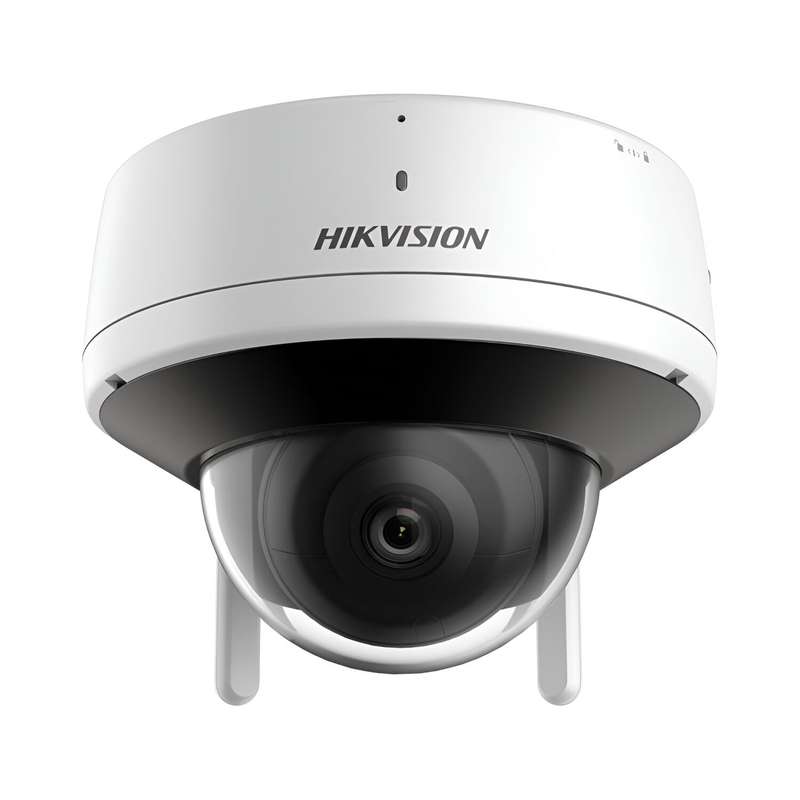

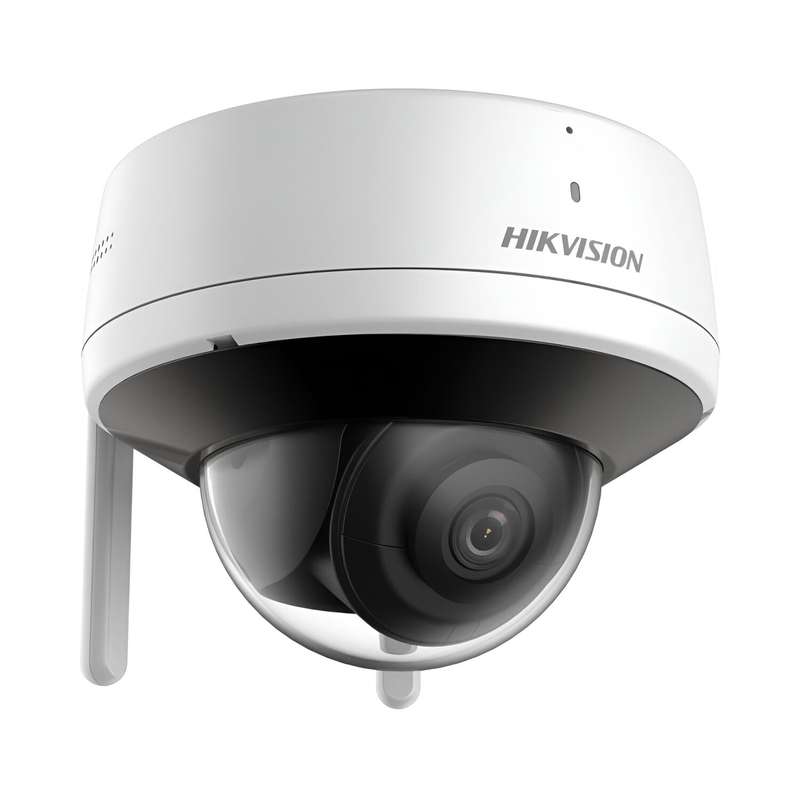

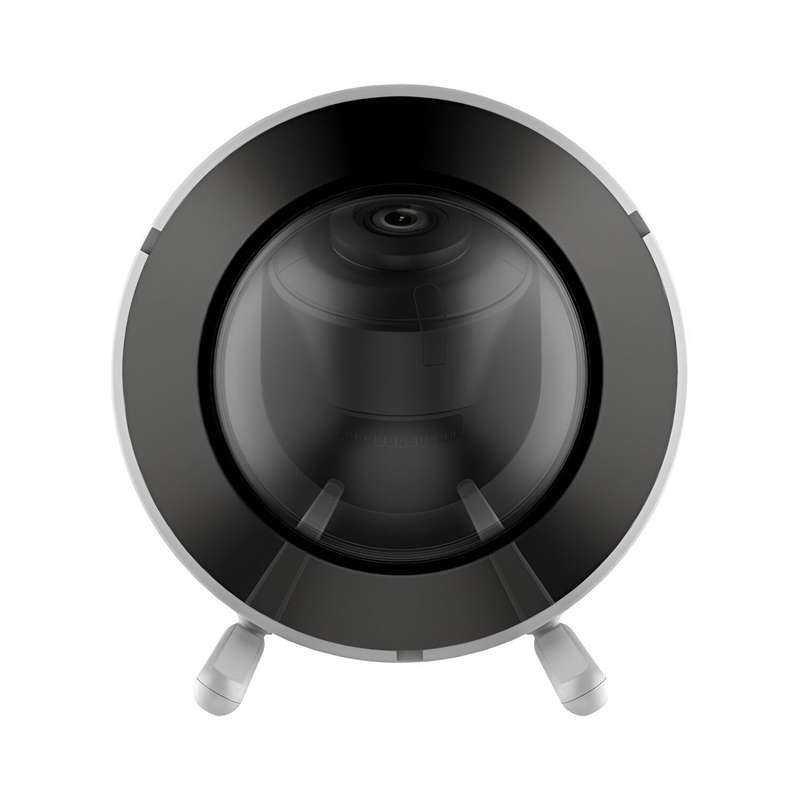

Enhance your security with the Hikvision Fixed Dome Outdoor Security Camera, designed for homes, businesses, and surveillance professionals seeking a reliable, high-definition security solution. With its 4MP resolution and advanced EXIR 2.0 infrared technology, this camera delivers clear, detailed images even in low-light conditions, ensuring round-the-clock monitoring.
Seamlessly connect via Wi-Fi for a hassle-free installation, eliminating the need for complex wiring. The built-in two-way audio allows real-time communication, making it ideal for remote monitoring of homes, offices, retail stores, or warehouses. With H.265 video compression, the camera reduces bandwidth usage and storage requirements without compromising image quality.
Designed to withstand harsh environments, this dome camera is IP66-rated, providing resistance against water and dust. The adjustable viewing angles ensure flexible coverage for different monitoring needs. For added security, the built-in microSD card slot supports up to 512GB of local storage, ensuring your footage is always accessible.
Compatible with Hik-Connect, iVMS-4200, and major security platforms, this camera offers remote access from anywhere, allowing users to monitor live feeds and receive alerts in real-time. Whether you're safeguarding your home or managing a security network for a business, the Hikvision Fixed Dome Outdoor Security Camera is a powerful, feature-packed surveillance solution.
FEATURES:
- High-quality imaging with 4 MP resolution
- Wi-Fi connection and easy installation
- Provides real-time security via built-in two-way audio
- Efficient H.265 compression technology
- EXIR 2.0, advanced infrared technology with long IR distance
- Water and dust resistant (IP66)
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
SPECIFICATIONS:
- Camera
- Image Sensor_ 1/3 Progressive Scan CMOS
- Max. Resolution_ 2560 × 1440 (4MP)
- Min. Illumination_Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
- Shutter Time_ 1/3 s to 1/10,000 s
- Day & Night_ IR cut filter
- Angle Adjustment_Pan: 0° to 355°, Tilt_ 0° to 75°, Rotate_ 0° to 355°
- Lens
- Lens Type_ Fixed focal lens (4mm)
- Focal Length & Field of View (FOV): Horizontal FOV 79°, Vertical FOV 40°, Diagonal FOV 94°
- Aperture: F1.6
- Iris Type_ Fixed
- Lens Mount_ M12
- Depth of Field_ 4mm_ 1.5m to
- DORI
- 4mm: Detection (D): 78m, Observation (O): 31m, Recognition_ 15m, Identification_ 7m
- Illuminator
- Supplement Light Type_ IR
- IR Wavelength_ 850nm
- Supplement Light Range_ Up to 30m
- Smart Supplement Light_ Yes
- Video
- Main Stream_ 50 Hz_ 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720), 60 Hz_ 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720
- Sub-Stream: 50 Hz_ 25 fps (1280 x 720, 640 × 480, 640 × 360), 60 Hz_ 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Video Compression_ Main Stream_ H.264 Sub-Stream: H.264
- Video Bit Rate_ 32 Kbps to 8 Mbps
- H.264 Type_ Baseline Profile/Main Profile/High Profile
- Audio
- Audio Compression_ G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate_64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate_ 8kHz / 16kHz
- Environment Noise Filtering_ Yes
- Network
- Protocols Supported_ TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
- Simultaneous Live View_ Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- Client: Hik-Connect (Wired), iVMS-4200 (Wireless)
- Security Features_ Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
- Wi-Fi
- Transfer Rate_ 11n_ up to 300 Mbps
- Wi-Fi Protocols_ IEEE 802.11b/g/n
- Frequency Range_ 2.412 GHz to 2.472 GHz
- Channel Bandwidth_ 20 MHz
- Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
- Wireless Range_ Up to 120m (varies based on environment)
- Antenna: 2 antennas
- Image
- Image Settings_ Rotate mode, saturation, brightness, contrast, sharpness
- Day/Night Switch_ Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): 120 dB
- SNR: 52 dB
- Image Enhancement_ BLC, 3D DNR
- Interface
- Built-in Microphone_ Yes
- Built-in Speaker_ Yes
- On-Board Storage_ Supports microSD/microSDHC/microSDXC cards (up to 512GB)
- Reset Key_ Yes
- Ethernet Interface_ 1 × RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Events_ Motion detection (human and vehicle classification), exception alerts
- Linkage Methods_ Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
- General
- Power Supply_ 12V DC ±10%, 0.5A, max. 6W, Ø 5.5mm coaxial power plug, reverse polarity protection
- Operating Temperature_ -30°C to 60°C (-22°F to 140°F), Humidity 95% (non-condensing)
- Storage Temperature_ -30°C to 60°C (-22°F to 140°F), Humidity 95% (non-condensing)
- Material:Base: Metal, Front Cover_ Polycarbonate, Back Cover_ Polycarbonate
- Dimensions: Ø 12.6 × 9.61 cm
- Weight: Approx. 590g
- Certifications & Compliance
- EMC Compliance_ FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032_ 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014);
IC VoC (ICES-003: Issue 6, 2016); KC (KN 32_ 2015, KN 35_ 2015) - RF Compliance_ FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328
V2.1.1(BT or 2.4G); EN 62311_2008(BT or 2.4G)); MIC (JPN) - Safety Compliance_ UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1_2009 + Am 2_2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1_2009 + Am 2_2013, IEC 62368-1:2014); - CE-LVD (EN 62368-1: 2014/A11:2017)
- Environmental Compliance_ CE-RoHS: 2011/65/EU, WEEE_ 2012/19/EU, Reach_ Regulation (EC) No 1907/2006 WEEE (2012/19/EU)
- Protection Rating_ IP66 (IEC 60529-2013)
WHAT'S IN THE BOX_
- Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 4MP x1
- User Manual x1
Lenght: 17
Width: 17
Height: 15
Colour:
Warranty: 12 Months
