G+P Lens Type | 5V DC, 2 A | Mini USB(4G) Extension Interface | Micro Power Interface
- Up to 2160P high resolution, with horizontal 124°wide angle, diagonal 135°.
- F1.75 super large aperture offer a perfect night image.
- Display: 3 inch touch screen, Resolution: 960*480.
- Support built-in MIC and speaker for audio in and out.
- Built-in WIFI module and WIFI AP function supported.
- Built-in G-Sensor module, support video recording linkage at car crash or strong vibration. (Linkage video record can be configured be no-overwritten)
- Support GPS module with speed display and route tracking playback.
- TF+eMMC Card for video recording, eMMC: 64GB, TF Card: 32 GB to 128 GB.
- Phone App: live view, record playback and parameter configuration.
- Voice recognition supported : Snapshot, Recording on, Recording off.
- ADAS supported: "Traffic light turn green", "Speed limit recognition", "Front car start remind".
- Easy installation and user friendly, plug and play. (Automatically recording after power on)
- Low power consumption and high performance.
FEATURES:
Camera
Image Sensor - SONY IMX415
Angle Adjustment - adjustable up 35° and down 15°
Powee-Off Memory - YES
Lens
Lens Type - G+P
Aperture - Front camera: F1.75, Rear camera: F2.0
Wi-Fi
Frequency Range - 2412-2472MHZ , 5725-5875MHZ
Channel Bandwidth - 20MHZ/40MHZ/80MHZ
Wide Dynamic Range (WDR) - NO
Image Enhancement - YES
HDR - YES
Interface
Built-In Microphone - YES
Built-In Speaker - YES
Extension Interface - Mini USB(4G)
General
GPS - YES
WiFi - 2.4G/5G
Wi-Fi Support - YES
Resolution - 2160p@30fps+1080P@25FPS, 1080P@60fps+1080P@25FPS
Max. Resolution - 2160p@30fps
Video Compression - H.265
FOV - 135° (D), 124° (H)
Camera Dimension - 100 mm × 85 mm × 38 mm (3.6 × 3.5 × 2.8)
Camera Weight - 150g (0.33 lb)
Software Reset - YES
Online Upgrade - YES
Power Consumption And Current - Approx. 6 W
Power Supply - 5V DC, 2 A
Power Interface - Micro
Working Temperature - -20 °C to 65 °C (-4 °F to 158 °F)
Working Humidity - 95%(Max)
Storage - eMMC+TF card: eMMC: 64GB, TF Card: 32GB to 128GB

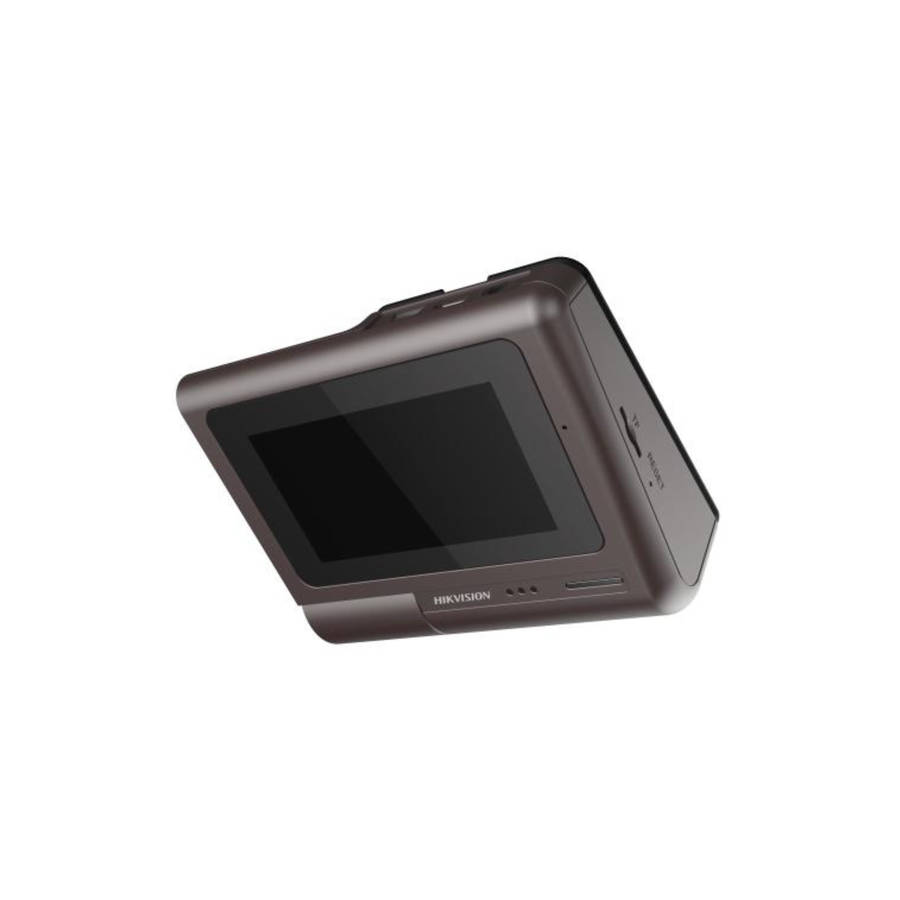

Display - 3 inches (960*480)
OSD - Display time, date, etc.
Image Format -JPEG
Local Storage - YES
ADAS -YES
Speech Recognition - YES
