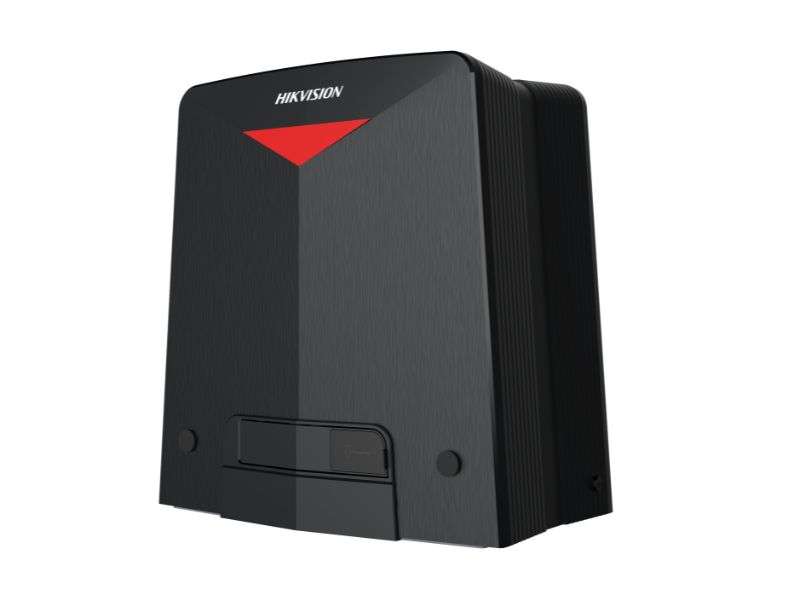

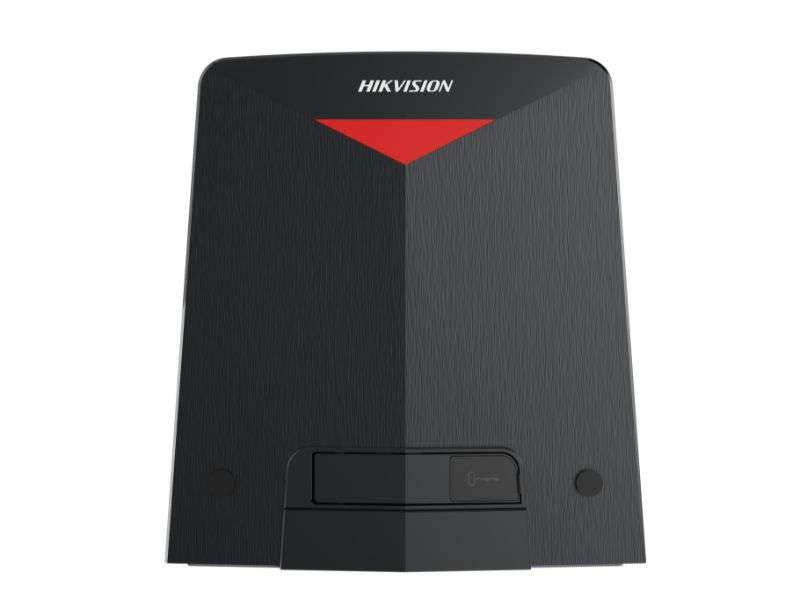

HikVision H6 Sliding gate opener

Sliding gate opener
Support built-in WIFI and LAN interfaces, easy for remote management system.
Battery-driven, max open speed at 0.6 m/second, @17 Kgf (2 x 12V 7AH batteries are essential for normal operation, max dimension (W `d7 H `d7 D): 151mm x 94mm x 65mm).
Support Mobile web configuration with AP mode by a simple touch on NFC tags.
Support component status self- diagnostics
Support built-in access system, could achieve the functions of opening doors via PIN code, card, and QR code with external AC card reader.
The system supports linkage function, enabling integrated applications with intercom, alarm, and access control systems.
The product supports low-power mode, which allows for excellent power consumption management after a power outage, achieving longer standby times and more door opening and closing cycles.

System
Motor
Brush motor
MCBF
0.8 million times
Gate mass - maximum
600 Kg
Open speed
Up to 0.6 m/second, @17 Kgf
Battery
12V 7AH x 2 (Not included in the box, purchase separately)
Motor Push Force - Starting
30 Kgf
Motor Push Force - Rated
17 Kgf
Gate Length - Maximum
20 m
Remote Keyfob Capacity
3,000
Network
Wired network
10/100 Mbps self-adaptive Ethernet
Wi-Fi
Support
4G
Optional
Interface
Network interface
1
Exit button
2
Alarm output
2
TAMPER
1
RS-485
1
Case input
2
IR connection
2
Emergency Input
1
Power Supply Output
12V/0.2A*2
Hardware
Buzzer
Support
Expansion screw
M12 X 150mm
Capacity
Card capacity
250,000
Event capacity
500,000
Function
Configuration via PC Web
Support
Configuration via mobile Web
Support
Hik-Connect
Support
Multi-factor authentication
Support
AP mode
Support
Communication protocol
TCP/IP,ISAPI
Keyfob
Support, 868 MHz, within 200 m (Open area)
Pedestrian Mode
Support
Reopen
Support
Soft Start & Stop
Support
Flashing light
Support
General
Power consumption
Standby: 5 W

Working: 280 W

Peak: 400 W

Power supply method
Power supply: 100 to 240 VAC~, 50/60 Hz, Rated current: 0.8A, Peak current: 4A
Working temperature
-15 `b0C to 55 `b0C (5 `b0F to 131 `b0F)
Working humidity
10% to 95% (No condensing)
Protective level
IPX5
Dimensions
Without package: 309.72 mm `d7 225.66 mm `d7 330 mm (12.2" `d7 8.9" `d7 13.0")

With package: 360 mm `d7 275 mm `d7 450 mm (14.17 `d7 10.83" `d7 17.72")"

Net: 7.45 kg (16.3 lb)

Gross: 10 kg (22 lb)

Approval
CE/CB/RoHS/REACH/WEEE
Language
English, Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Latin America), Spanish (Europe), Thai, Russian, Ukrainian, Uzbek, Vietnamese, Korean
