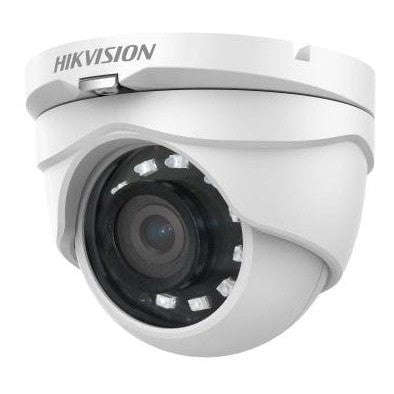

2.8mm Hikvision HD 1080P Infrared Hybrid Turbo Turret Camera. 2-MP high-performance CMOS; Analogue HD output; 41 Feature TVIAHDCVICVBS; Up to 20m IR distance; Full metal body; IP66
Product Overview
The HIKVISION Turbo HD 2MP CMOS Camera delivers high-definition surveillance with a maximum resolution of 1920 x 1080 pixels and a minimum illumination of just 0.01 Lux, ensuring clear images even in low light conditions. Its versatile lens options (2.8 mm, 3.6 mm, and 6 mm) provide various fields of view, while the camera's robust design features an IP67 rating for weather resistance and a wide operating temperature range of -40 °C to 60 °C. Enhanced with features like true day/night functionality, digital WDR, and smart IR technology, this camera is ideal for reliable outdoor monitoring.
Specifications
Product Code: DS-2CE56D0TIRMF 2.8MM
Description: HIKVISION HD 1080P 2.8MM IR HYBRID DOME
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC
White Balance Auto/Manual
AGC Yes
Video Output Switchable TVI/AHD/CVI/CVBS
Material Metal
Dimension 89.47 mm × 67.6 mm (3.52" × 2.70")
Weight Approx. 250 g (0.55 lb.)
Operating Condition '-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
Consumption Max. 3 W
IR Range Up to 25 m
