HIKVISION HEATPRO BI-SPECTRUM THERMAL

HIKVISION HEATPRO BI-SPECTRUM THERMAL

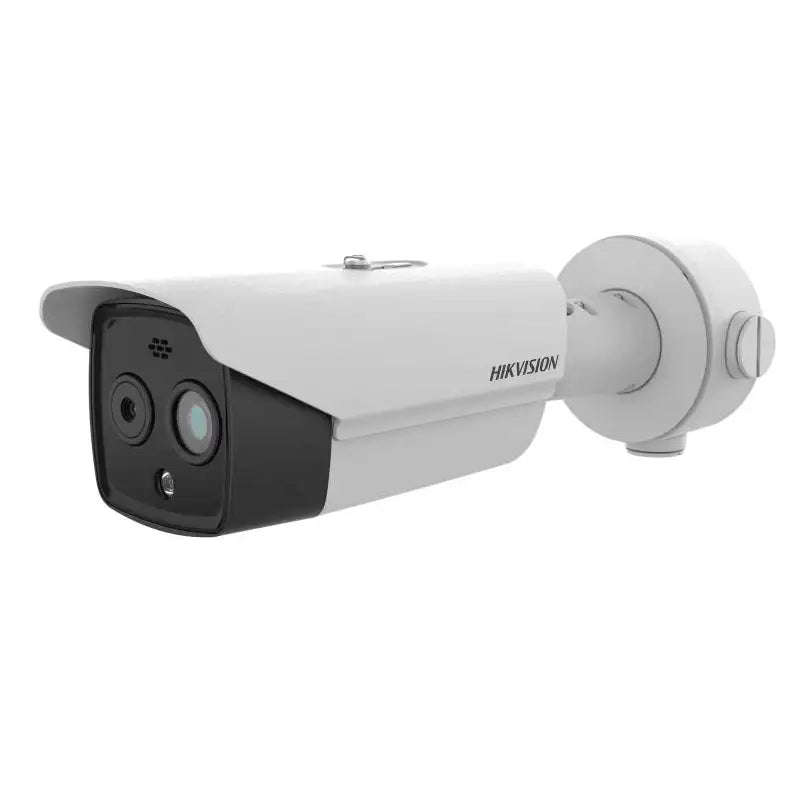

The HIKVISION HEATPRO BI-SPECTRUM THERMAL camera, specifically the DS-2TD2628-10/QA model, utilizes video analysis for perimeter protection and temperature exception alarm, making it ideal for early fire prevention.

Its advanced deep learning algorithm allows for accurate VCA detection and real-time alarms. These cameras are suitable for various settings such as villas, communities, parking lots, warehouses, construction sites, waste incineration plants, and manufacturing workshops.

FEATURES:

• 256 × 192 resolution, 12 m, VOx UFPA, NETD < 40 mK (25°C, F1.0)
• Video content analysis: vehicle/human classification
• Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• Support smoking detection algorithm
• Support sun-reflection filter algorithm

SPECS:

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution256 × 192
• Pixel Pitch12 m
• Spectral Range8 m to 14 m
• NETD< 40 mK (25°C, F1.0)
• Focal Length9.7 mm
• IFOV1.24 mrad
• Field Of View18.0° × 13.5° (H × V)
• Min. Focusing Distance1.5 m
• ApertureF1.0
• Digital Zoom×2, ×4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Focal Length8.0 mm
• Field Of View39.4° × 22.1° (H × V)
• Aperture (Range)F1.6
• WDR120 dB

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 30 m
• IR Intensity And AngleAutomatically adjusted

• Audible And Visual Alarm
• White Light Range
