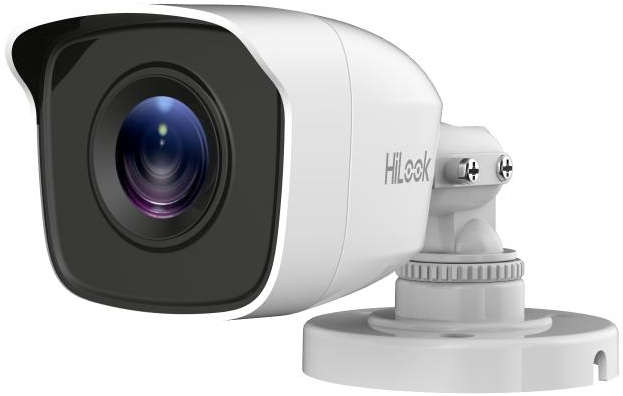

Hikvision HiLook 2 MP Fixed Mini Bullet Camera - 1080p Bullet Camera, 2 MP CMOS Image Sensor, 1920 x 1080 Max Resolution, IR Cut Filter Day and Night, Fixed Focal Lens, IR Supplement Light Type, Up to 20m Light Range, Digital WDR, 2D DNR Noise Reduction, IP66 Protection, Plastic Material, Retail Box, 12 Months Warranty.
Product Overview
The Hikvision HiLook 2 MP Mini Bullet is a compact fixed-lens CCTV camera delivering 1080p video at up to 30 fps with a 2 MP CMOS sensor and IR illumination up to 20 m. It offers switchable TVI/AHD/CVI/CVBS outputs, digital WDR, 2D DNR and smart IR, with optional 2.8 mm or 3.6 mm lenses for wide or narrower fields of view. Housed in an IP66-rated plastic body and powered by 12 V DC, it operates from -40 deg C to 60 deg C and provides flexible pan/tilt/rotation adjustment for outdoor and indoor surveillance.
Specifications
-Product Code: THC-B120-PC28
-Description: HiLook 2 MP Fixed Mini Bullet Camera
Camera
-Image Sensor: 2 MP CMOS image sensor
-Max. Resolution: 1920 (H) x 1080 (V)
-Min. Illumination: 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
-Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
-Day & Night: IR Cut Filter
-Angle Adjustment: Pan: 0 deg to 360 deg , Tilt: 0 deg to 180 deg , Rotation: 0 deg to 360 deg
Lens
-Lens Type: Fixed focal lens, 2.8 mm and 3.6 mm optional
-Focal Length & FOV: 2.8 mm, horizontal FOV: 96.5 deg , vertical FOV: 48.9 deg , diagonal FOV: 120.5 deg
-Lens Mount: M12
Illuminator
-Supplement Light Type: IR
-Supplement Light Range: Up to 20 m
-Image Parameters Switch: STD/HIGH-SAT
-Image Settings: AGC;Brightness;Smart IR;Mirror;Sharpness
Frame Rate
-PAL: 1080p @ 25 fps
-NTSC: 1080p @ 30 fps
-Day/Night Mode: Auto/Color/BW (Black and White)
-Wide Dynamic Range (WDR): Digital WDR
-Image Enhancement: DWDR;BLC
-Noise Reduction: 2D DNR
Interface
-Video Output: Switchable TVI/AHD/CVI/CVBS
General
-Power: 12 VDC plus or minus 15%, Max. 2.1 W
-Material: Plastic
Dimension
-165 mm x 62 mm x 58 mm (6.50" x 2.44" x 2.28")
-400 g (0.88 lb.)
-Operating Condition: -40 deg C to 60 deg C (-40 deg F to 140 deg F), Humidity: 90% or less (non-condensation)
-Protection: IP66
