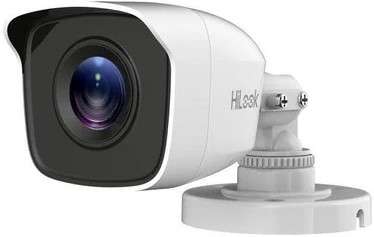

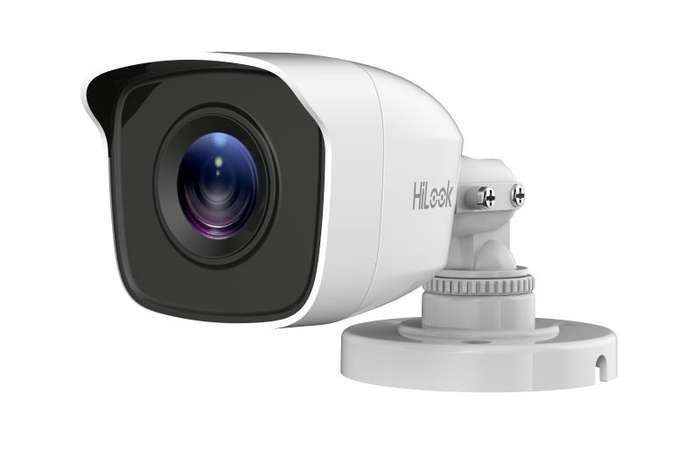

Hikvision HiLook 2MP 1080p 2.8MM 20M IR Fixed Mini Bullet Camera - 2MP 1080p fixed mini bullet camera with 20m Smart IR, IP66 rated for water and dust resistance. Supports 4 in 1 video signals (TVI/AHD/CVI/CVBS), has a 2.8mm lens with 103° field of view, digital WDR, IR cut filter for day/night, and functions like brightness and sharpness adjustment. Power: 12VDC, max 4W. Dimensions: 66x189x82 mm, weight 400g. Ideal for outdoor surveillance.
Product Overview
The 2 MP Fixed Mini Bullet Camera delivers high-quality 1080p resolution imaging with a fixed 2.8mm or 3.6mm lens, ensuring clear and detailed video capture. It features Smart IR technology with an effective infrared distance of up to 20 meters for enhanced night vision, and is water and dust resistant with an IP66 rating for reliable outdoor use. The camera supports 4-in-1 signal output, allowing seamless switching between TVI, AHD, CVI, and CVBS formats for versatile installation options
Specifications
Product Code: THC-B120-PC 2.8MM
Description: Hikvision HiLook 2MP 1080p 2.8MM 20M IR Fixed Mini Bullet Camera
2 MP Fixed Mini Bullet Camera.
1080p bullet camera.
Smart IR, up to 20 m IR distance.
Water and dust resistant (IP66).
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Interface
Video Output: 1 HD analog output
Switch Button: TVI/AHD/CVI/CVBS
Day/Night Mode: IR cut filter
DWDR (Digital Wide Dynamic Range): Support
Language: English
Functions: Brightness, Sharpness, DNR, Mirror, Smart IR
Backlight Compensation: Support
Camera
Image Sensor: 2 MP CMOS image sensor
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps, NTSC: 1080p@30fps
Resolution: 1920 (H) 1080 (V)
Shutter Time: 1/25 (1/30) s to 1/50,000 s
Min. Illumination: 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Horizontal Field Of View: 103 (2.8 mm), 80.7 (3.6 mm), 50.1 (6 mm)
Lens Mount: M12
Day & Night: IR cut filter
Synchronization: Internal synchronization
Angle Adjustment: Pan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360
General
Power Supply: 12 VDC 15%
Power Consumption: Max. 4 W
Material: Plastic
IR Range: Up to 20 m
Dimensions: 65.9 mm 189.2 mm 81.8 mm (2.59"" 7.45"" 3.22""), 400 g (0.88 lb.)
Operating Conditions: -40 C to 60 C (-40 F to 140 F), Humidity: 90% or less (non-condensation)
Ingress Protection: IP66
