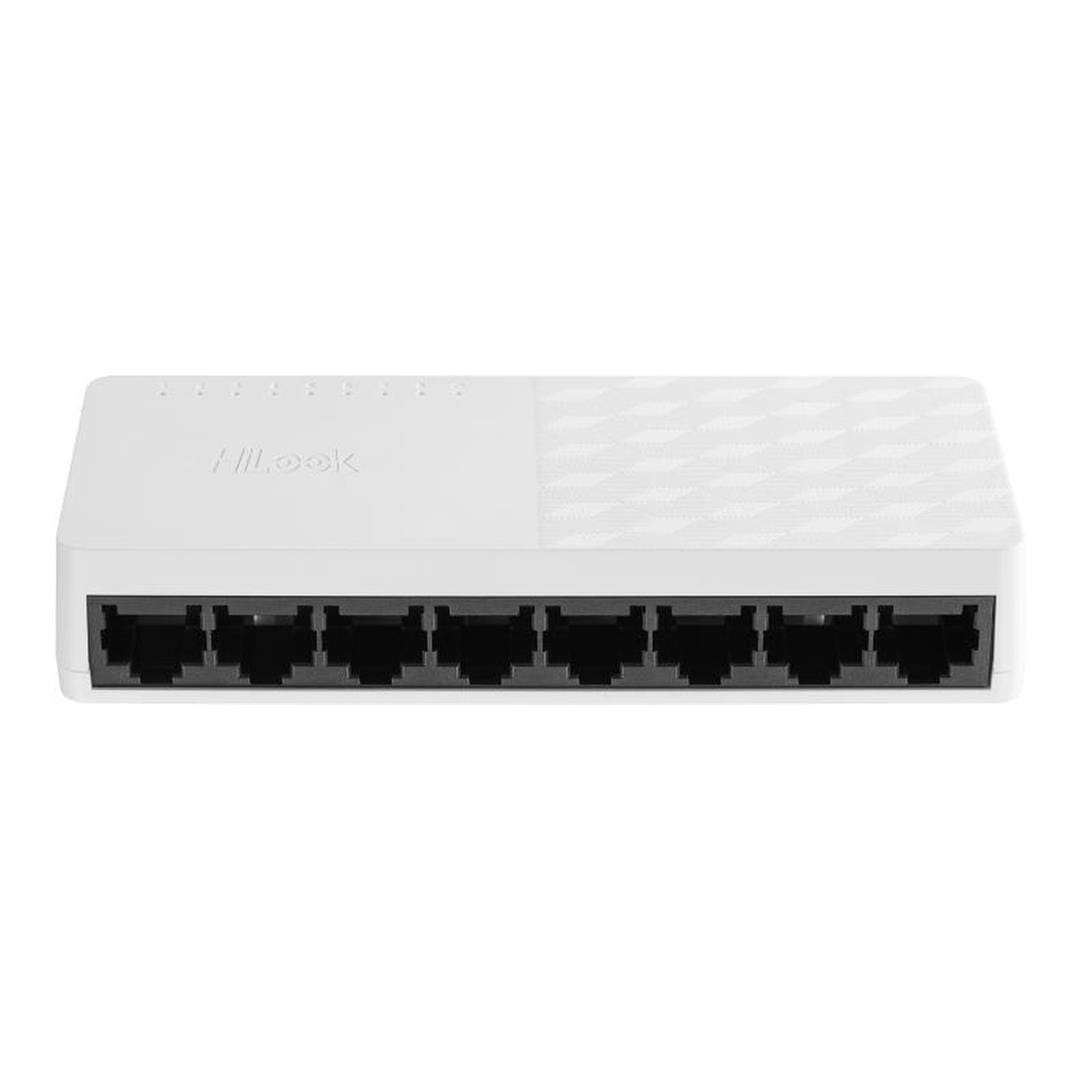

Hikvision HiLook NS-0108D 8-port Fast Ethernet Unmanaged Network Switch
The HiLook NS-0108D is a compact unmanaged network switch designed to provide straightforward wired connectivity in homes, offices, schools, dormitories and small monitoring environments. Its eight Fast Ethernet ports support line-speed forwarding, while plug-and-play operation makes it easy to expand a compatible network without complicated configuration.
Simple Network Expansion
Connect up to eight compatible wired network devices through the switch's 10/100 Mbps RJ45 ports. Automatic MDI/MDIX support simplifies cabling, while the unmanaged design means the switch can be installed and used without software configuration.
Reliable Everyday Switching
Store-and-forward switching checks incoming data before forwarding it to its destination. MAC address auto-learning and ageing help the switch maintain an efficient address table as connected devices change.
Compact Desktop Design
The lightweight ABS enclosure measures just 83 × 22 × 52 mm, making the NS-0108D suitable for desks and other areas where space is limited. LINK/ACT indicators provide a quick view of activity across ports 1 to 8, while a separate power indicator shows the switch's operating status.
Key Features:
- Eight 10/100 Mbps RJ45 ports provide wired connectivity for compatible network devices.
- Line-speed forwarding supports efficient traffic handling across the switch.
- Plug-and-play unmanaged operation requires no software configuration.
- Automatic MDI/MDIX support helps simplify network cable connections.
- Store-and-forward switching supports reliable data transmission.
- MAC address auto-learning and ageing automatically maintain the address table.
- Compact ABS enclosure is well suited to smaller desktop installations.
Suitable Applications:
- Home wired networks
- Small offices and workspaces
- Schools and dormitories
- Small monitoring networks
- Expansion of an existing Fast Ethernet network
Technical Specifications:
| Specification | Details |
| Brand | HiLook by Hikvision |
| Model / MPN | NS-0108D |
| Product Type | Unmanaged desktop network switch |
| Network Performance |
| Network Ports | 8 × 10/100 Mbps RJ45 ports |
| Switching Method | Store-and-forward |
| Switching Capacity | 1.6 Gbps |
| Packet Forwarding Rate | 1.19 Mpps |
| MAC Address Table | 2K entries |
| Internal Cache | 0.768 Mbits |
| Cable Detection | Automatic MDI/MDIX |
| MAC Address Management | Automatic learning and ageing |
| Physical and Environmental |
| Enclosure Material | ABS |
| Installation | Desktop |
| Dimensions | 83 × 22 × 52 mm |
| Net Weight | 0.059 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Power Supply | 5 V DC, 0.6 A |
| Indicators |
| Port Indicators | LINK/ACT indicators for ports 1 to 8 |
| Power Indicator | PWR status indicator |
Expand your everyday wired network with a compact, easy-to-use switch and add the HiLook NS-0108D to your cart today.
