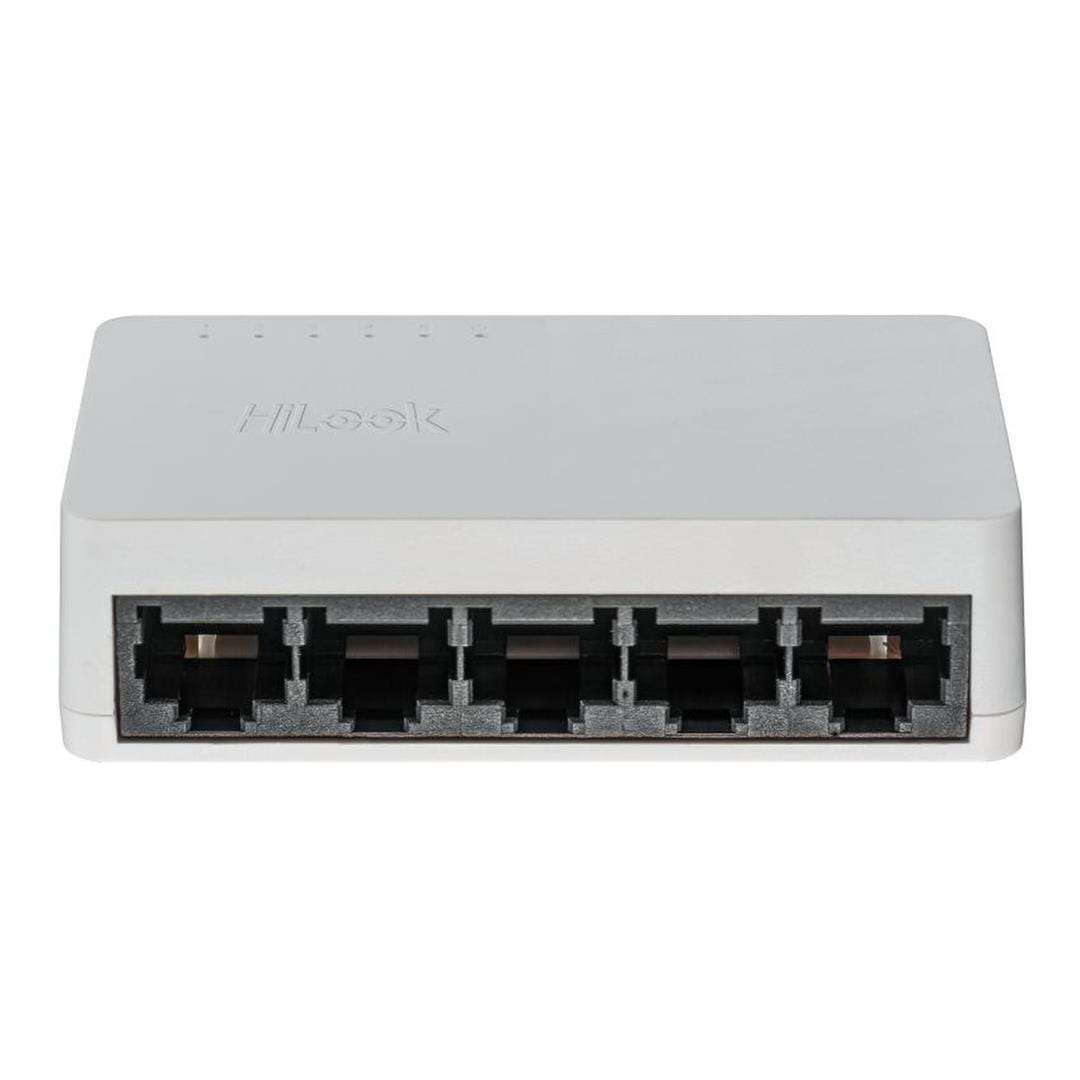

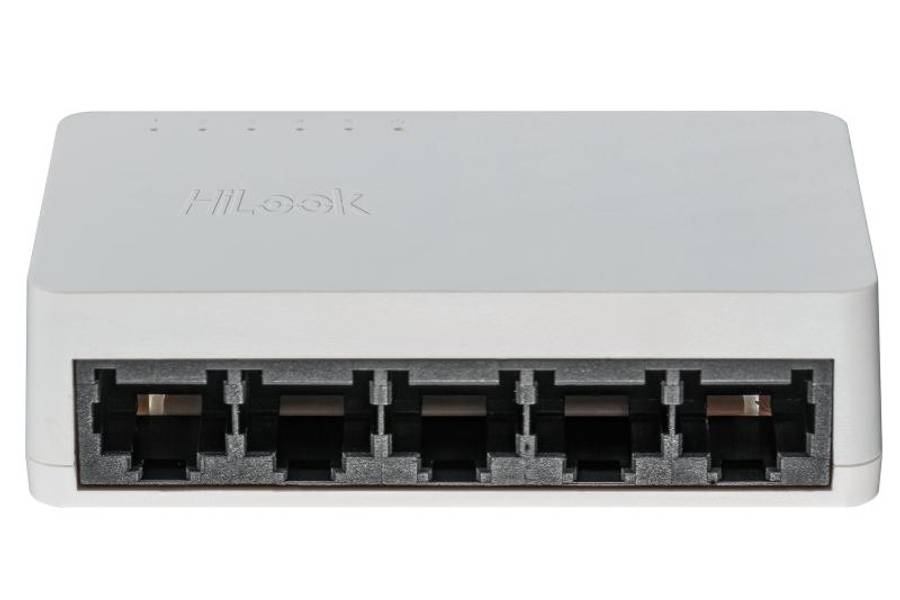

Hikvision HiLook NS-0505D 5-port Gigabit Unmanaged Network Switch
The Hikvision HiLook NS-0505D is a compact unmanaged desktop switch designed to add reliable Gigabit Ethernet connectivity to home, office and surveillance networks. Its five Gigabit RJ45 ports provide a straightforward way to connect compatible computers, recorders, cameras and other wired network devices without requiring software configuration.
Five Gigabit Ethernet Ports
Five 10/100/1000 Mbps RJ45 ports provide wired Gigabit connectivity for compatible network equipment. With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps, the switch is equipped to handle everyday network traffic across all five ports.
Simple Plug-and-Play Operation
The unmanaged design requires no software configuration, helping to simplify installation and everyday use. Automatic MDI/MDIX support removes the need to select a particular Ethernet cable type when connecting compatible equipment.
Efficient Network Traffic Handling
Store-and-forward switching checks incoming data before forwarding it to the appropriate destination. Automatic MAC address learning and ageing help the switch maintain its 2K MAC address table as connected devices change.
Compact and Flexible Placement
The lightweight ABS enclosure measures just 87 × 25 × 51 mm, making the NS-0505D suitable for locations where space is limited. Its compact design supports desktop use, while wall-mounting capability provides an additional installation option.
Key Features:
- Five 10/100/1000 Mbps Gigabit RJ45 ports for compatible wired network devices.
- 10 Gbps switching capacity supports traffic across all five ports.
- Unmanaged plug-and-play operation requires no software configuration.
- Automatic MDI/MDIX support simplifies Ethernet cable connections.
- Store-and-forward switching supports dependable data transmission.
- Automatic MAC address learning and ageing with a 2K address table.
- Compact 59 g design supports desktop and wall-mounted installation.
Technical Specifications:
| Specification | Details |
| Brand | Hikvision HiLook |
| Model | NS-0505D |
| Product Type | Unmanaged Gigabit desktop network switch |
| Network Ports | 5 × Gigabit RJ45 ports |
| Port Speeds | 10/100/1000 Mbps |
| Cable Adaptation | Automatic MDI/MDIX |
| Network Management | Unmanaged |
| Forwarding Method | Store-and-forward switching |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K entries |
| Internal Cache | 1 Mbit |
| Enclosure Material | ABS |
| Installation Options | Desktop or wall-mounted |
| Power Supply | 5 V DC, 0.6 A |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, non-condensing |
| Dimensions | 87 × 25 × 51 mm |
| Net Weight | 0.059 kg |
| EMC Approval | CE-EMC |
| Safety Approvals | UL, CB and CE-LVD |
| Environmental Compliance | CE-RoHS, WEEE and REACH |
Expand your wired network with simple Gigabit connectivity and add the HiLook NS-0505D to your cart today.
