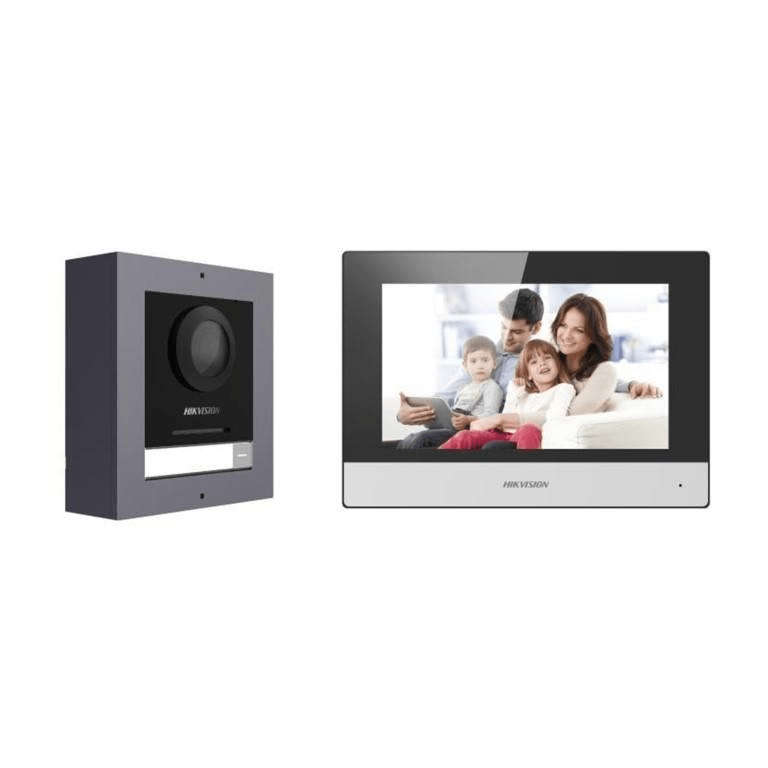

Hikvision IP Video Intercom Kit DS-KIS602(B)

Features

• IP video intercom bundle for villa or house
• One call button for easier calls
• Stores messages and captured pictures in the TF card
• Convenient Hik-Connect APP Mobile Control

Kit Includes

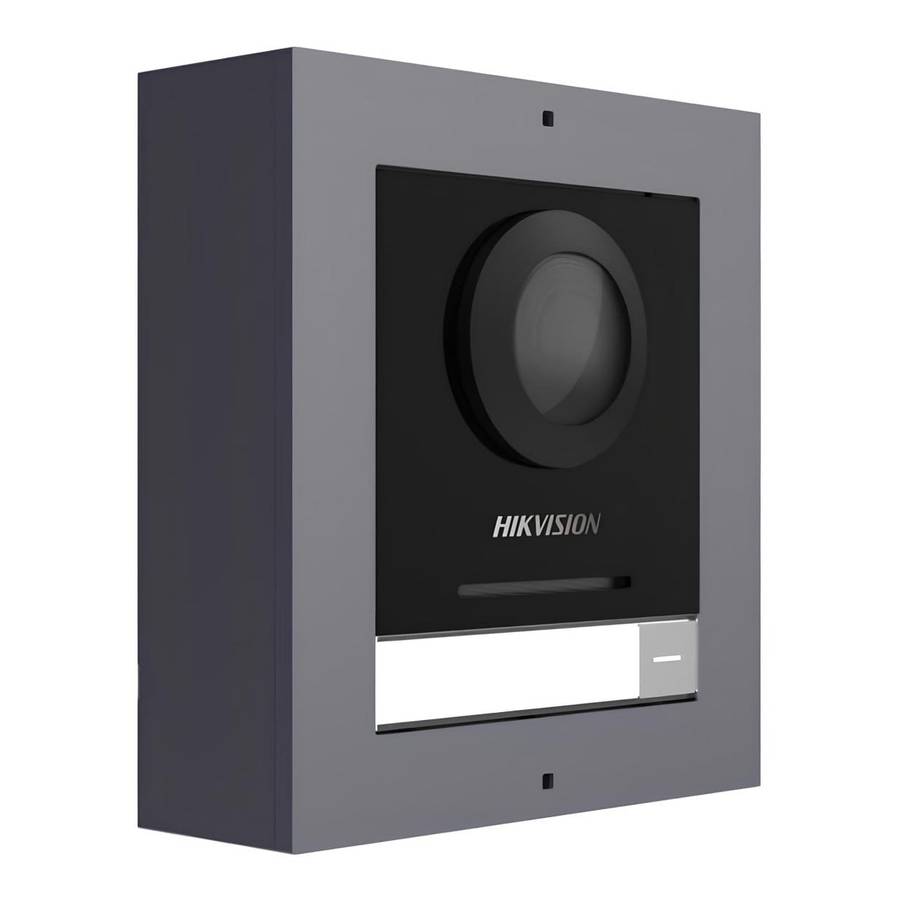

• 1x DS-KD8003-IME1(B)/Surface
• 1x DS-KH6320-WTE1
• 1x 4-port standard PoE switch
• 1x 16 GB TF card

Technical Specification

• Operation System: Embedded Linux operation system
• Flash: 32 MB
• RAM: 256 MB

• Camera: 2MP HD camera
• Night Vision: Low illumination IR supplement mode:3 m
• Backlight Compensation: Support
• Digital Noise Reduction: Support
• WDR: Support
• Field Of View: Horizontal: 146°, Vertical: 82°
• Video Compression Standard: H.264
• Motion Detection: Support

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: 64 Kbps
• Audio Intercom: Two-way audio communication

• Network Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps Ethernet

• Network Interface: 1x RJ45
• RS-485: 1x (1 for Hikvision's sub module communication)
• Alarm Input: 4x (2 exit butttons and 2 door contacts by default)
• Debugging Port: 1x
• Lock Control: 2x (2 relay, max to 30 V, 2 A)
• TAMPER Switch: 1x
• Power Interface: 12 VDC power output (max to 12 V, 500 mA)

• Power Consumption 5 W
• Installation: Surface mounting
• Protection Level: IP65
• Indicator: 0
• Power Supply: IEEE802.3af, standard PoE ; 12 VDC

• Operation System: Embedded Linux operation system
• Memory: 128 MB
• Flash: 32 MB

• Display Screen: 7-inch colorful TFT screen
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: 64 Kbps

• Wired Network: 10/100 Mbps self-adaptive
• Wireless Network: Wi-Fi 802.11 b/g/n
• Protocol: TCP/IP, SIP, RTSP
• RS-485: 1x RJ-45 10/100 Mbps self-adaptive

• RS-485: 1
• Alarm Input: 8-ch alarm inputs
• Relay Output: 2
• TF Card: Max to 32 G, SD 2.0 or lower version

• Power Consumption: 6 W
• Dimension (L x W x H): 200 mm x 140 mm x 23.6 mm
