HIKVISION Ip Video Intercom Kit

HIK041 - HIKVISION IP DS-KIS601 IP VIDEO DOOR PHONE KIT

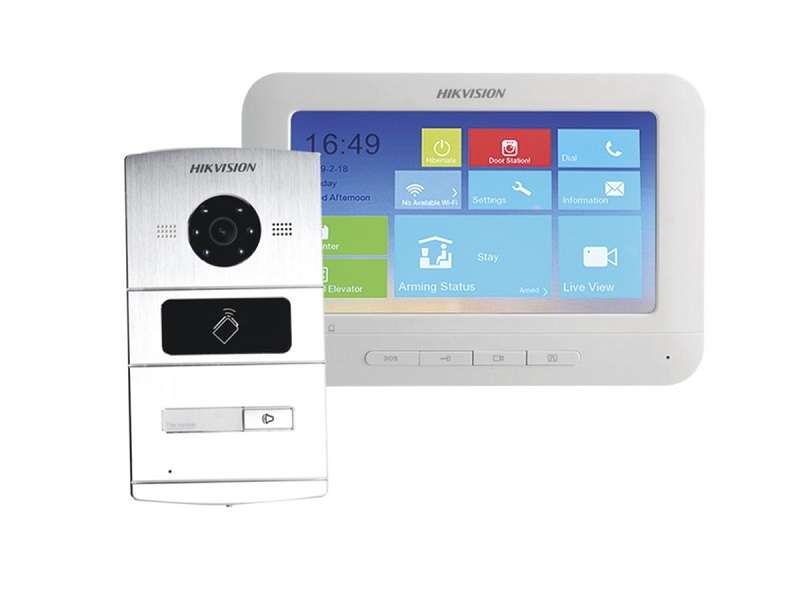

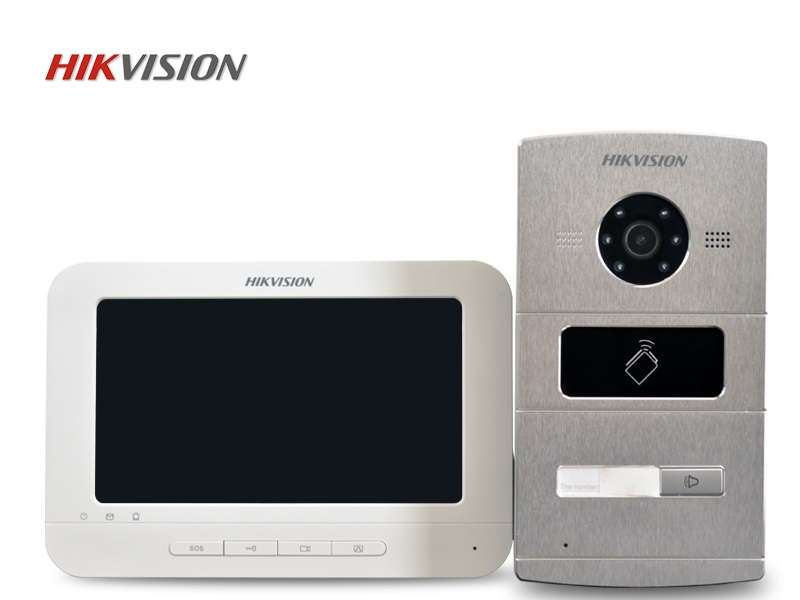

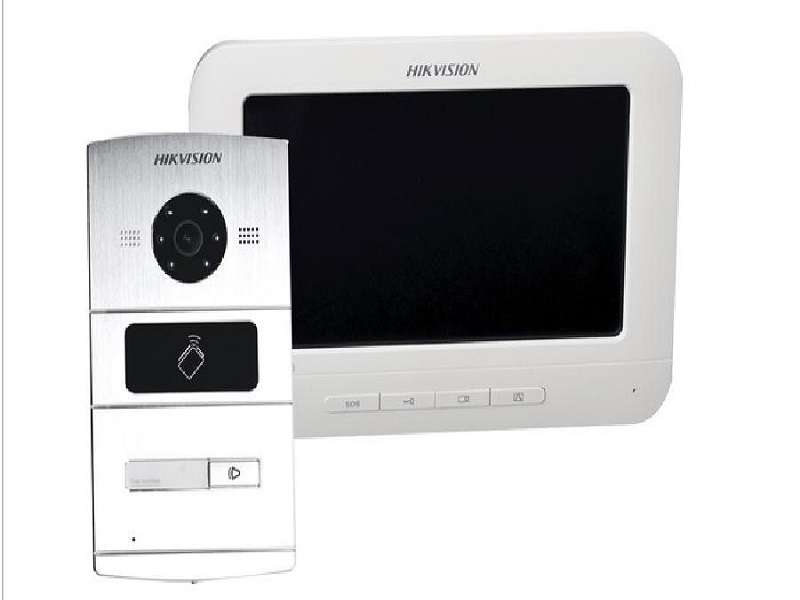

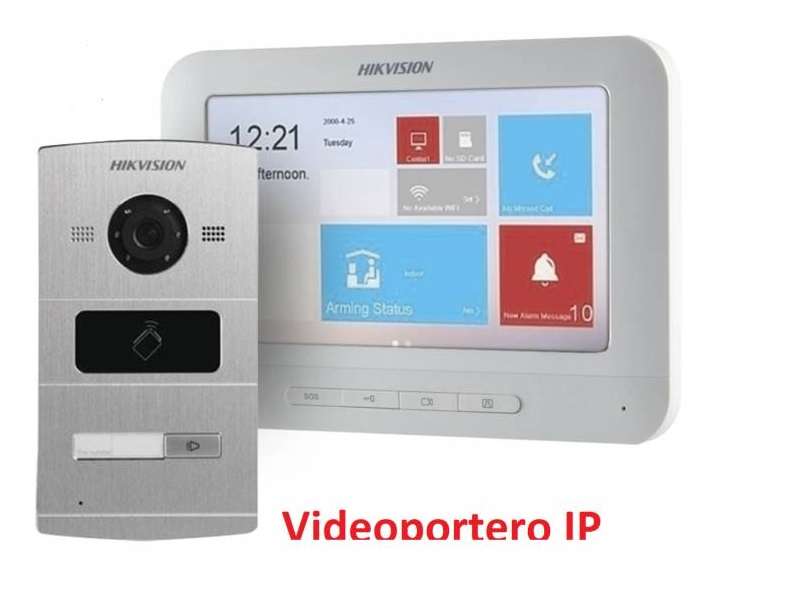

HIK041 - Hikvision IP DS-KIS601 IP Video Door Phone Kit

Monitor features DS-KH6310-WL
Compact design for easy IP installation.
Monitor with hands-free communication.
7 "color display.
Resolution: 800 x 400.
2 In / 1 Out alarm.
Opening from monitor.
Audio: IN: Interconstructed omnidirectional microphone
OUT: Interconstructed speaker
Quality: Noise suppression and echo cancellation

Network: Protocol: TCP / IP, RTSP.
Wifi.
10/100 Mbps Self-Adaptive Ethernet.
Compatible with Hik-connect P2P for remote notification / opening.

Physical and electrical characteristics: Operating voltage: 12VDC / PoE proprietary (requires PoE switch model DS-KAD606N). Not included.
Power consumption: 10W
Operating temperature: -10`ba ~ 55`ba C (14`ba ~ 131`ba F)
Dimensions (L x W x H): 217 `d7 142 `d7 26 mm (8.5 "`d7 5.6" `d7 1.0 ")
Certifications: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE

DS-KV8102-IM street front features

Goalkeeper TV function for 1 door
Access control function (MIFARE card reader 128 cards maximum)
Suggested card models S70 or S50.
Video: CMOS 1.3MP HD colorfull for low lighting
Compression: H.264
Resolution: 1280 x 720 @ 25fps

Audio: IN: Interconstructed omnidirectional microphone
OUT: Interconstructed speaker
Quality: Noise suppression and echo cancellation

Network: Protocol: TCP / IP, RTSP
10/100 Mbps Self-Adaptive Ethernet

In / Out alarm
One-touch call
Dry contact relay output for opening
Camera with IR.
Physical and electrical characteristics: Material: Aluminum
Operating voltage: 12VDC or PoE (available only with PoE switch mod DS-KAD606N, DS-KAD612, DS-KAD606). Not included.
For the PoE Switch It is recommended to place the SMP-3 and RT2460L models for power supply if 24VDC power is used.
Power consumption: 12W
Protection level: IP65
Operating temperature: -40`ba ~ 70`ba C (-40`ba ~ 158`ba F)
Dimensions: 182 `d7 100 `d7 33mm (7.17 "`d7 3.94" `d7 1.30 ")
Certifications: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
