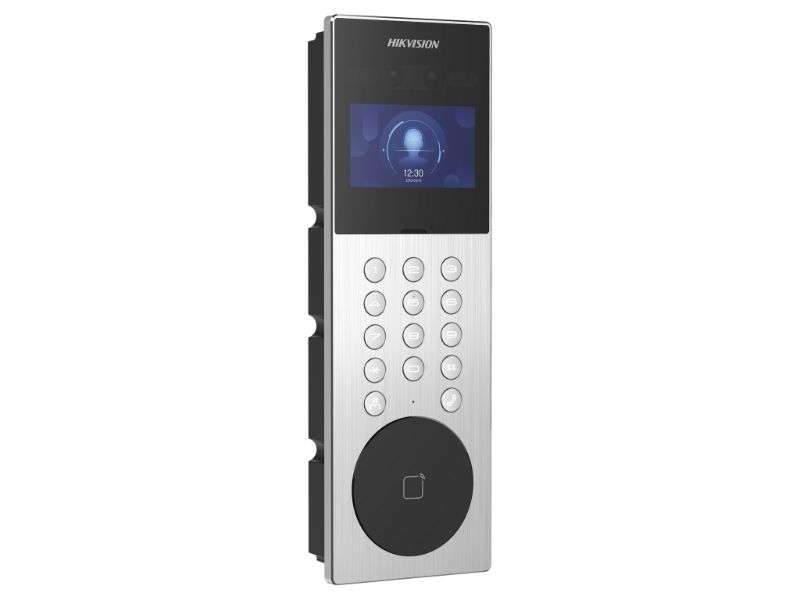

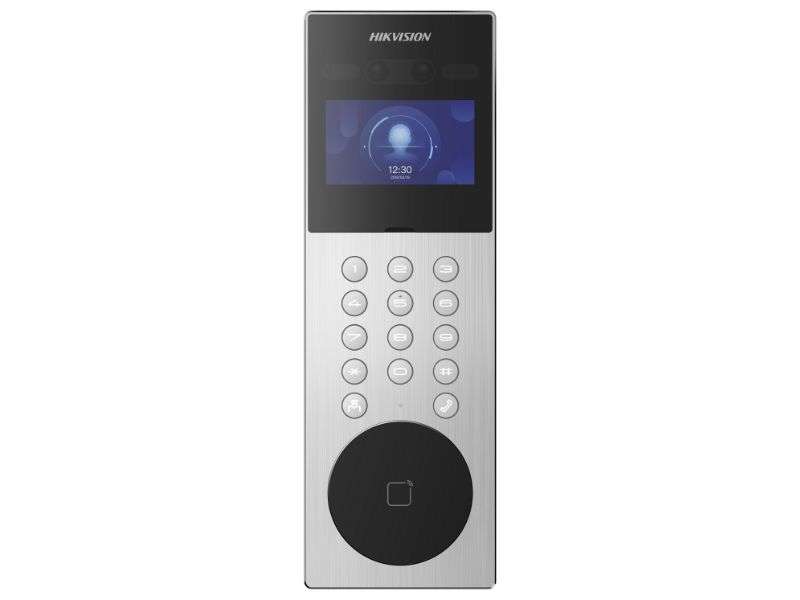

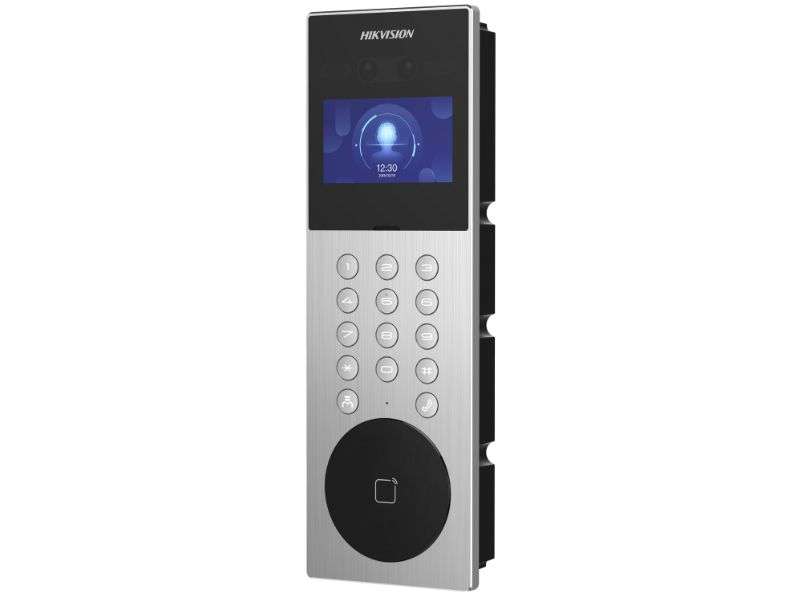

DS-KD9203-ME6
Facial Recognition Door station
4.3-inch colorful LCD screen with 800 `d7 480 resolution
2 `d7 2 MP wide-angle HD lens
IP65 protection level
Built-in M1 card reading module
Multiple interfaces: RJ45, RS-485, alarm input, relay
Convenient configuration via Web remotely
Convenient unlock methods: face, cards, PIN code
System parameters
Operation system
Linux
ROM
4 GB
RAM
1 GB
Processor
Embeded high performance processor
Display parameters
Screen size
4.3-inch
Operation method
/
Type
Colorful LCD
Resolution
800 `d7 480
Video parameters
Lens
2 MP HD camera
Resolution
Main stream: 1080p@30fps, 720p@30fps
Sub stream: VGA@25fps, VGA@30fps
FOV
/
Wide dynamic range (WDR)
Digital WDR/120 dB
Supplement light
IR light, up to 3 m
Video compression standard
H.264; H.265; MJPEG
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711 U`a1`a2G.711 A`a1`a2Opus`a1`a2AAC-LD`a1`a2AAC-LC`a1`a2G.726`a1`a2G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
User capacity
10,000
Face capacity
5,000
Card capacity
50,000
Network parameters
Network protocol
TCP/IP, RTSP, IPV6, ONVIF
Wi-Fi
/
Bluetooth
/
3G/4G
/
Device interfaces
Alarm input
4
Network interface
1 RJ-45 10/100/1000 Mbps self-adaptive
TAMPER
1
Exit button
1
RS-485
2 RS-485 (Half duplex, HIKVISION)
USB
/
Wiegand
/
TF card
/
Alarm output
/
Lock control
2 relays, Max. 30 VDC, 2 A
Door contact input
1
General
Button
Physical buttons
Installation
Flush mounting
Indicator
/
Net weight: 1.186 kg Gross weight: 1.471 kg
Protective level
IP65
Working temperature
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
Working humidity
10% to 90% (no-condensing)
Dimension (W `d7 H `d7 D)
373 mm `d7 124 mm `d7 43.7 mm (14.69" `d7 4.88" `d7 1.72")
Power supply
12 VDC, 1.5 A
Application environment
Outdoor
Power consumption
13 W
Language
English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
