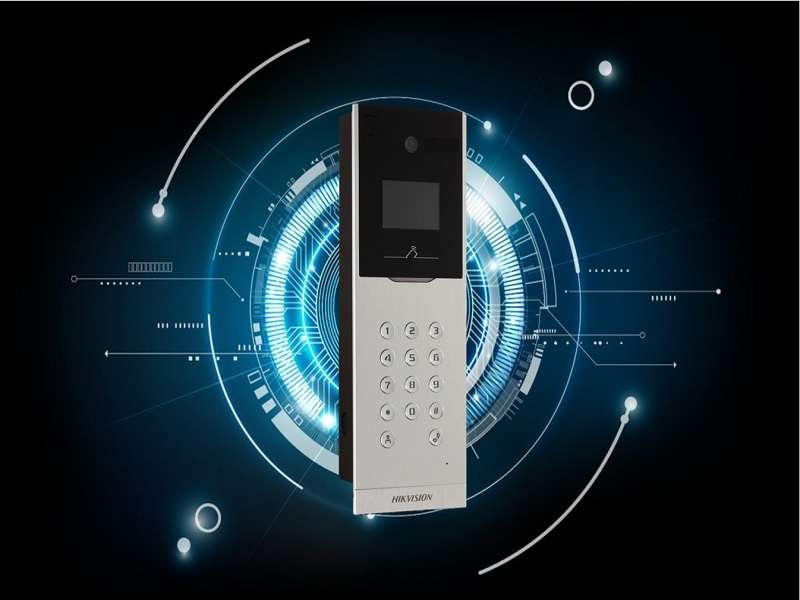

3.5inch Metal IP Door Station
2 MP HD camera with high quality image
120 `b0 wide angle of view
3.5-inch colorful LCD screen with 480 `d7 320 resolution
Unlocks by cards and pin-codes
Supports cofiguration via Web remotely
System Parameters
Operating System
Embedded Linux operation system
ROM
4 GB
RAM
512 MB
CPU
Embedded processor
Display Parameters
Screen Size
3.5-inch
Operation Method
Display screen, physical buttons
Type
Colorful LCD
Resolution
480 `d7 320
Video Parameters
Lens
2 MP HD camera
Resolution
Main stream: 1920`d71080p ,720p
Sub stream: 640`d7480
FOV
Horizontal: 70`b0, Vertical: 121`b0, Diagonal: 131`b0
WDR
Support
Supplement Light
Low illumination, IR supplement lights
Video Compression Standard
H.264
Audio Parameters
Audio Compression Standard
G.711 U, G.711 A
Audio Input
Built-in omnidirectional microphone
Audio Output
Built-in loudspeaker
Audio Compression Bitrate
64 Kbps
Audio Quality
Noise suppression and echo cancellation
Volume Adjustment
Adjustable
Capacity
User Capacity
/
Face Capacity
/
Card Capacity
10000
Linked Network Camera Capacity
500
Network Parameters
Communication Protocol
TCP/IP, RTSP
Wired Network
Support
Wi-Fi Standard
/
Bluetooth Version
/
3G/4G Standard
/
Authentication
Card Type
Mifare card
Device Interfaces
Alarm Input
8
Network Interface
1 10/100/1000 Mbps self-adaptive, RJ45 Analog Interface
TAMPER
1
Exit Button
2
RS-485
1
USB
0
Wiegand
1
TF Card
/
Alarm Output
2
Lock Control
2
Door Contact Input
2
Power Interface
1
Performances
Multi-Factor Authentication
10000
General
Button
14 physical buttons

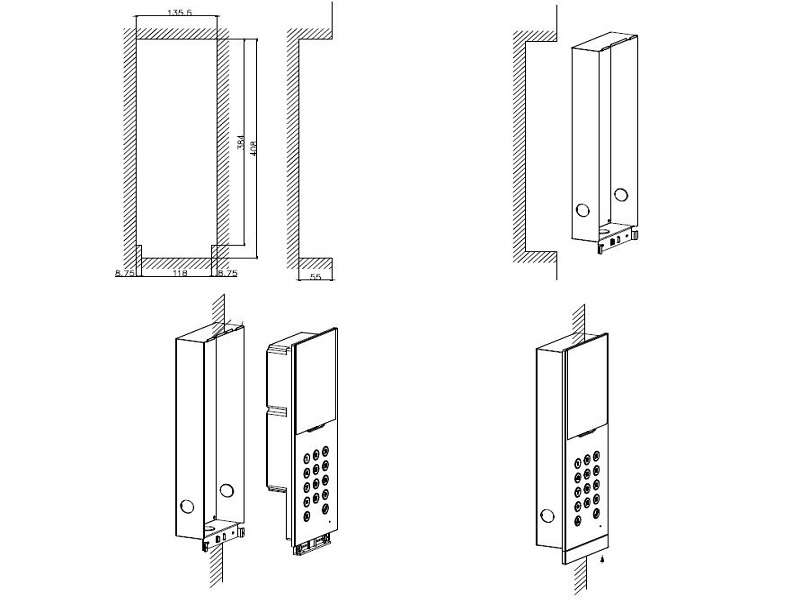

Installation
Flush mounting
Indicator
/
Without package: 1.05 kg
With package: 2.166 kg
Protective Level
IP 65
Working Humidity
10% to 95%
Dimensions
418 mm `d7 145 mm `d7 59.7 mm (16.46" `d7 5.71" `d7 2.35")
Battery
/
Power Supply
10 W
Application Environment
Outdoor
