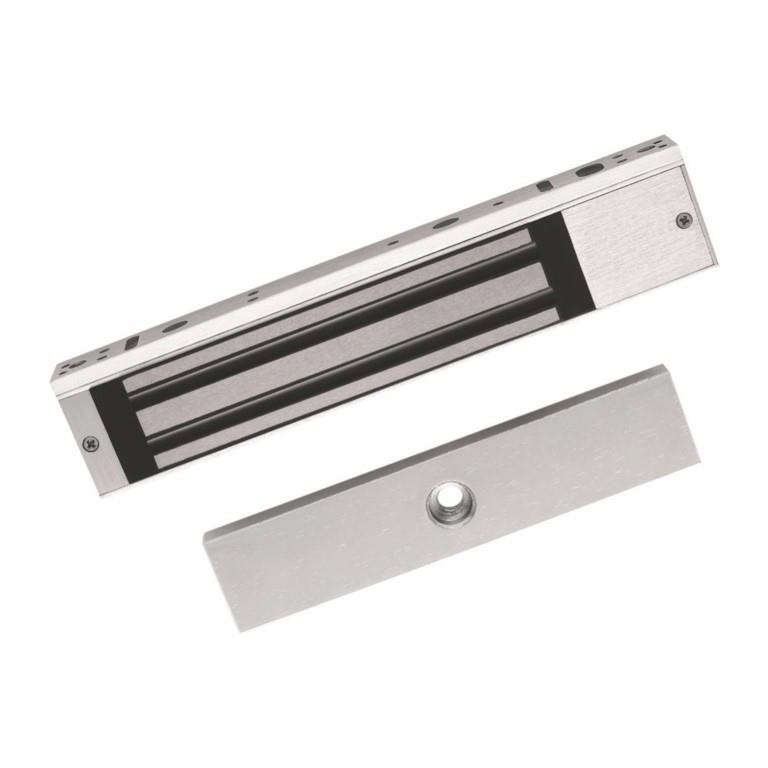

Hikvision Magnetic Door Lock DS-K4H258S

The DS-K4H258S One-Door magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 280 kg (617 Lbs). It can be used for controlling door opening/closing, and the indicator shows the door status.

Features

• Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
• Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
• Suitable for wooden door, glass door, metal door and fireproof door
• LED indicator displays door lock status
• Abrasion-proof materials
• No mechanical failure, and the magnetic lock works by electromagnetism force

Technical Specification

Indicator: Green (Work Status)

Power Supply: 12 VDC, 340 mAx2

Working Temperature: -10°C~+55°C (14°F~131°F)

Working Humidity: 0~95% (Relative Humidity)

Dimensions: Lock Body: 238 × 45 × 25 mm (9.4 × 1.8 × 1.0"), Armature Plate: 182 × 38 × 12.5 mm (7.2 × 1.5 × 0.5)"

Weight: 2.1 kg

Material:

• Shell: hard Anodizing Electroplating Operated
• Lock Body: eco-friendly Nickel Electroplating Operated

Armature Plate: eco-friendly Zinc Electroplating Operated

Thrust: Max. 280 kg (617 lb)

Door Type: Single leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door

Magnetic Lock/General

Unlock Method: Current Interruption

Surface Temperature: Ambient Temperature +20°C (68°F)
