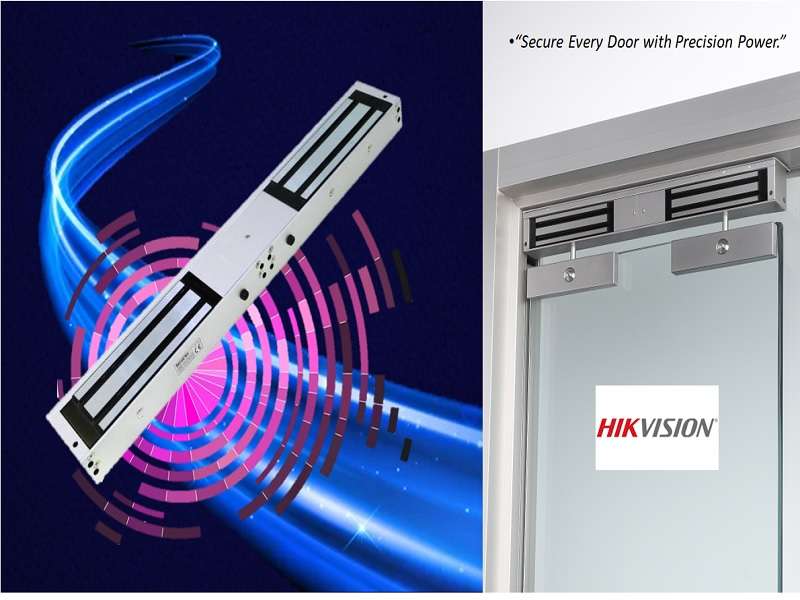

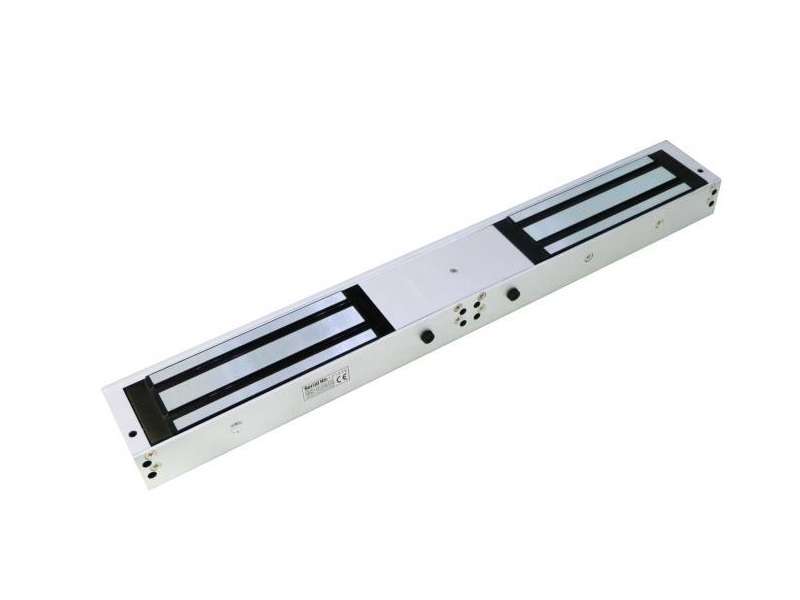

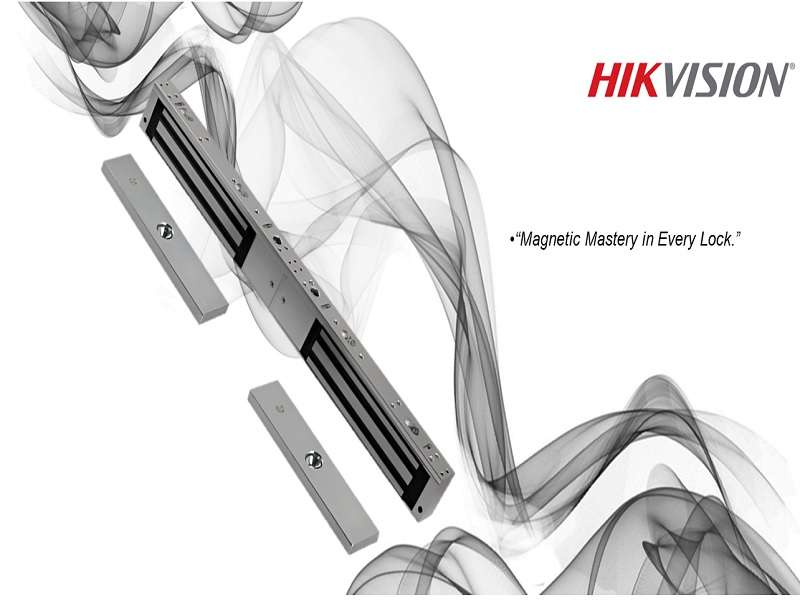

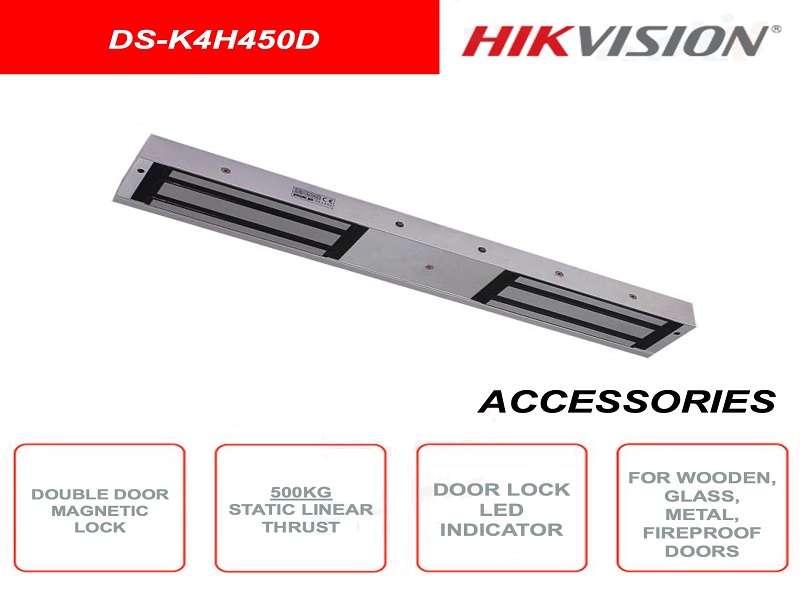

Pro Series Magnetic Lock
Magnetic lock supports static linear thrust of 500 kg (1102.5 lbs) `d7 2
Power supply can be 12 VDC or 24 VDC + 10% (default voltage is 12 VDC)
Suitable for wooden door, glass door and metal door
LED indicator displays door lock status
Signal output of door lock status
General
Indicator
Green: Locked
Red: Unlocked
Power supply
12/24 VDC + 10%
12 VDC/420 mA `d7 2
24 VDC/210 mA `d7 2
Dimensions
Lock Body: 530 mm `d7 71.8 mm `d7 38.8 mm (20.86`` `d7 2.83`` `d7 1.53``)
Armature Plate: 185 mm `d7 60 mm `d7 13 mm (7.28`` `d7 2.36`` `d7 0.51``)
9.0 kg (19.84 lb)
Signal output
Dry Contact Signal Output; Support Maximum Power Rate of 3 A, NO Output While Locking and NC Output While Unlocking
Thrust
500 kg (1102.5 lb) `d7 2
Door type
Wooden Door, glass door, metal Door
Magnetic Lock/General
Maximum holding force
500kg (1102.5 lbs) `d7 2
Suitable door
Wooden Door, Glass Door, Metal Door
