Hikvision MinMoe Time & Attendance Facial & Card Terminal

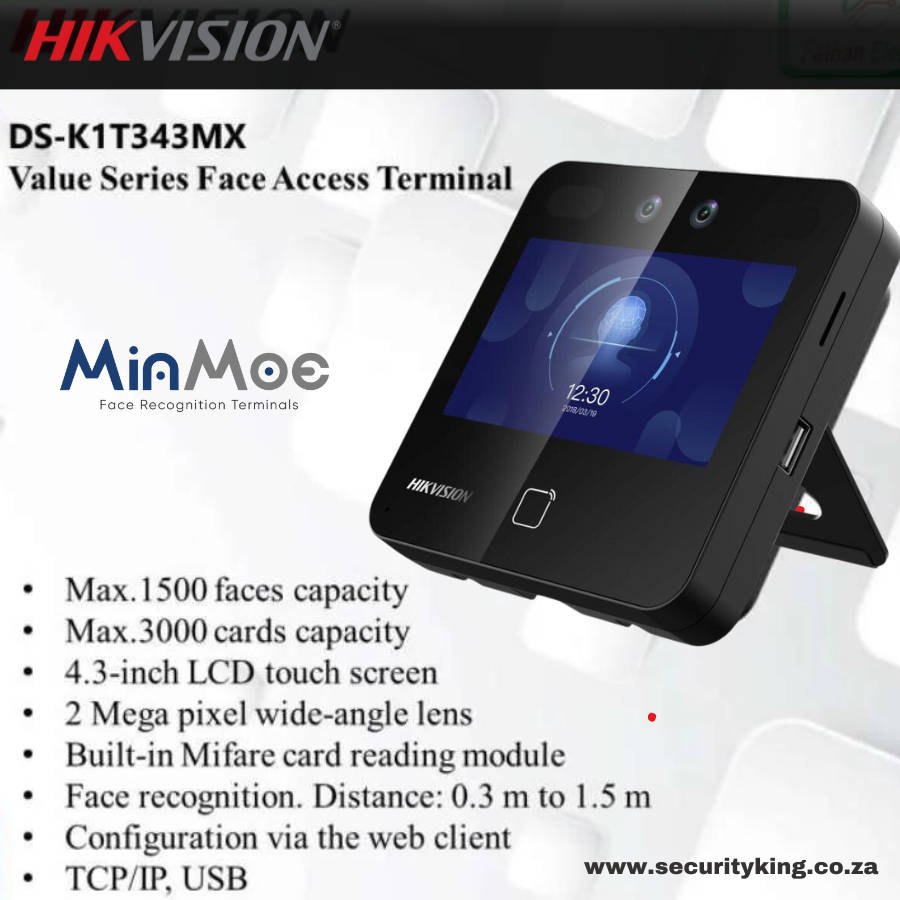

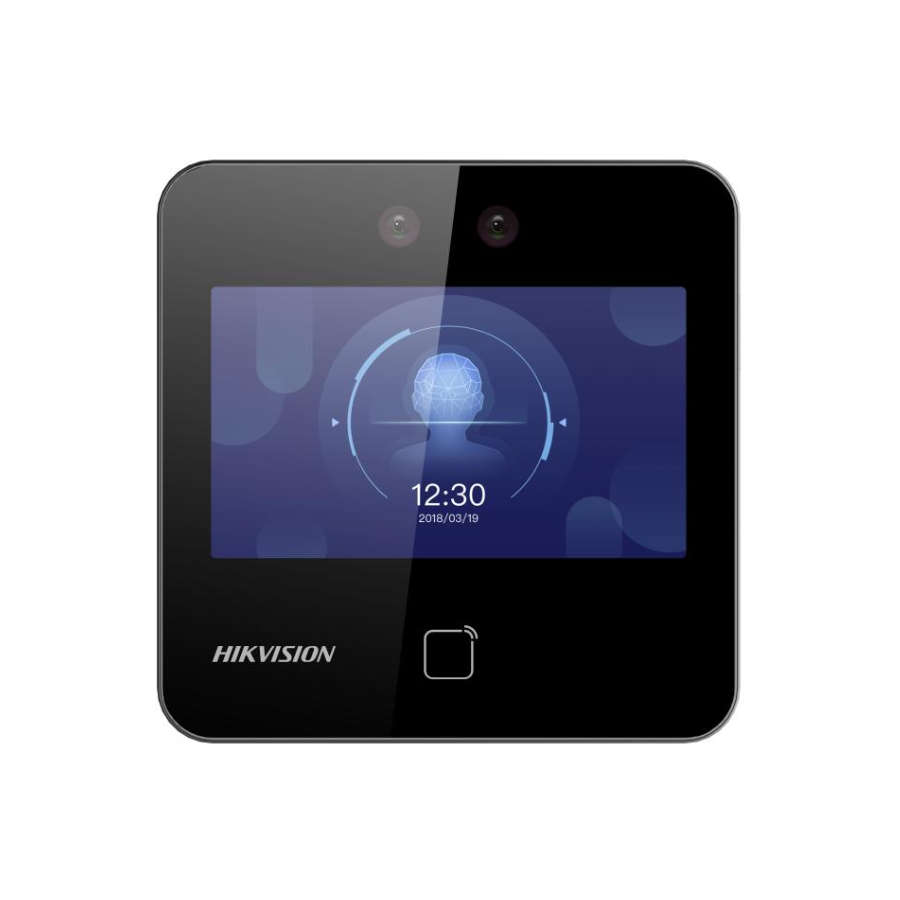

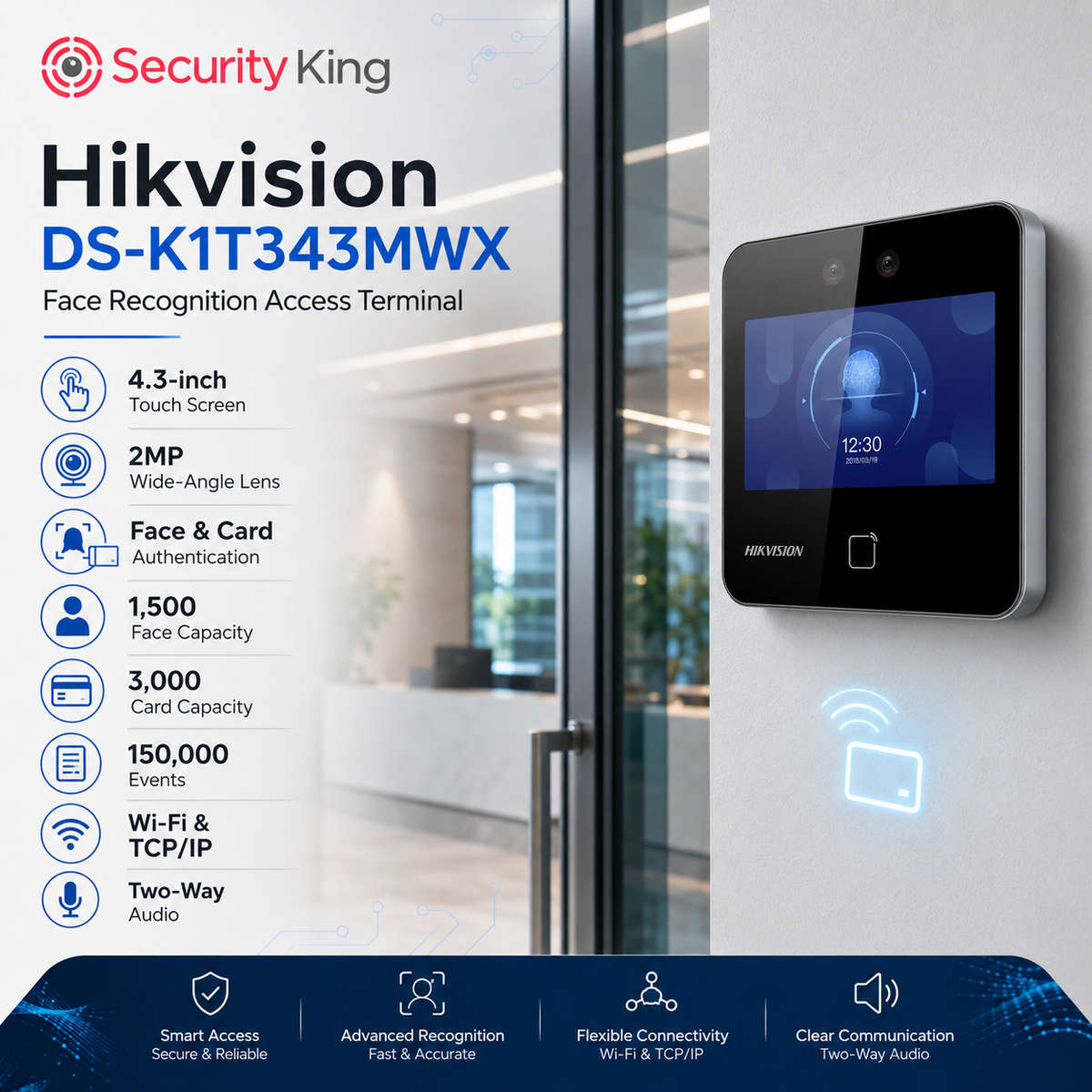

Hikvision DS-K1T343MWX Face Recognition Access Terminal

The Hikvision DS-K1T343MWX is a smart face recognition terminal designed for secure and convenient access control in offices, residential complexes, schools, commercial buildings, warehouses, financial environments, and other controlled-entry areas. With fast facial recognition, card authentication, Wi-Fi connectivity, and a compact 4.3-inch touch screen, it provides a modern solution for managing staff, visitors, and authorised users.

Powered by a deep-learning face recognition algorithm, the DS-K1T343MWX offers fast and accurate user verification. It supports up to 1,500 faces and 3,000 M1 cards, making it suitable for small to medium access control and time attendance applications. The terminal also stores up to 150,000 events, allowing reliable access record management.

The device supports multiple authentication methods, including face and card verification. Its face recognition distance of 0.3m to 1.5m, recognition speed of less than 0.2 seconds, and accuracy rate above 99% help provide smooth, contactless entry for authorised users.

The DS-K1T343MWX includes built-in two-way audio, an omnidirectional microphone, and a loudspeaker, making it suitable for communication through compatible client software, indoor stations, or main stations. It also supports TCP/IP, Wi-Fi, RS-485, Wiegand, lock control, exit button, door contact input, tamper input, and USB, giving installers strong integration flexibility.

Key Features

• Face recognition access control terminal

• 4.3-inch LCD capacitive touch screen

• 2MP wide-angle lens

• Built-in M1 card reading module

• Supports up to 1,500 faces

• Supports up to 3,000 cards

• Stores up to 150,000 events

• Face recognition distance: 0.3m to 1.5m

• Face recognition duration: less than 0.2 seconds per user

• Face recognition accuracy rate: above 99%

• Supports face/card authentication

• Supports face duplicate check

• Supports attendance-only function

• Built-in microphone and loudspeaker

• Two-way audio support

• TCP/IP and 2.4GHz Wi-Fi support

• ISAPI, ISUP 5.0, SDK, SIP, and RTSP protocol support

• Web client configuration

• RS-485 and Wiegand interface

• Lock control, exit button, door contact, tamper, and USB interfaces

• Compatible with Hik-ProConnect and HikCentral Professional

Ideal For

• Office access control

• Residential complexes and estates

• Apartment buildings

• Schools and campuses

• Warehouses and staff entrances

• Commercial buildings

• Retail and business premises

• Time and attendance systems

• Contactless entry management

• Controlled-access indoor environments

Technical Specifications

• Brand: Hikvision

• Model: DS-K1T343MWX

• Product Type: Face Recognition Access Terminal

• Operating System: Linux

• Display: 4.3-inch LCD capacitive touch screen

• Screen Resolution: 480 × 272

• Camera: 2MP wide-angle lens

• Lens: 4mm

• WDR: Supported

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Audio Quality: Noise suppression and echo cancellation

• Network: RJ45 10/100Mbps self-adaptive Ethernet, 2.4GHz Wi-Fi

• Wi-Fi Standard: 802.11b/g/n

• Card Type: M1 card

• Card Frequency: 13.56MHz

• Card Reading Distance: 03cm, depending on card type

• Face Capacity: 1,500

• Card Capacity: 3,000

• Event Capacity: 150,000

• Interfaces: RS-485, Wiegand, USB, lock control, exit button, door contact, tamper

• Power Supply: 12V DC, 1A

• Working Temperature: -10°C to 40°C

• Working Humidity: 0% to 90%, non-condensing

• Dimensions: 118.4 × 118.4 × 21.8mm

• Installation: Wall mounting or base mounting

• Application Environment: Indoor

Why Choose the Hikvision DS-K1T343MWX?

The Hikvision DS-K1T343MWX is a practical and professional access control solution for sites that require fast, contactless user verification. With face recognition, M1 card support, Wi-Fi, two-way audio, event storage, and flexible access control interfaces, it is ideal for modern indoor entry management and time attendance applications.

Installation Note

Professional installation is recommended to ensure correct mounting height, network setup, lock wiring, exit button connection, door contact setup, user enrolment, face recognition configuration, and platform integration.
