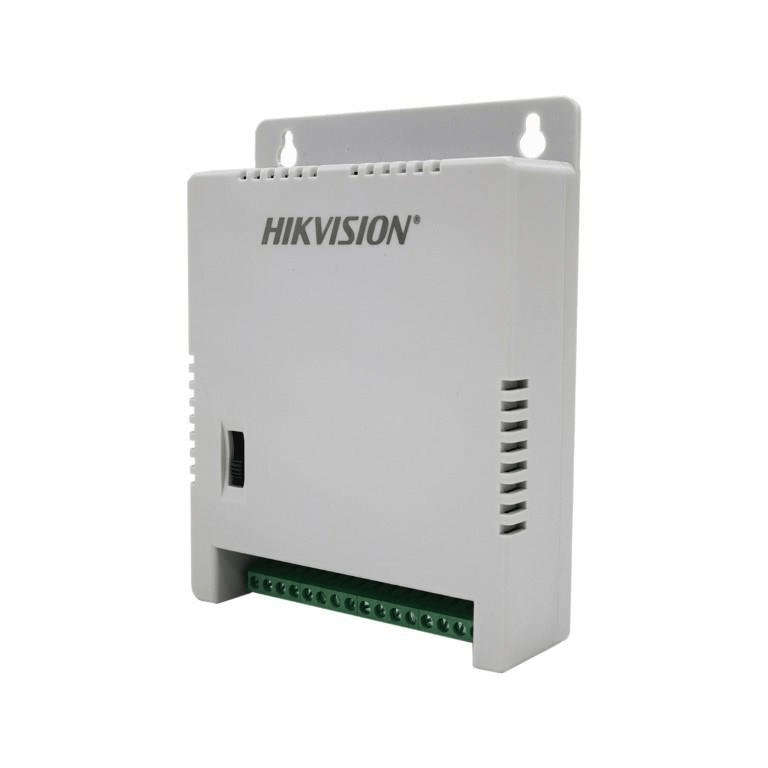

Hikvision Multi-channel SMPS 12V 60W 8-ch CCTV Power Supply DS-2FA1205-C8(EUR)
Features
- 60 W, 12 VDC/1 A max per channel, max total current is 5 A
- Over current/short circuit/over voltage protection
- Good EMC performance
- Compact size; applicable to cameras
- 150 to 285 VAC wide voltage input
Technical Specification
Appearance: White
Dimension: 144 mm x 109.5 mm x 33 mm
Operating Conditions: 0°C to 40°C, Humidity: 10% to 95% (non-condensing)
LED Indicator: Green
Input: 150 to 285 VAC, 47 Hz to 63 Hz
Output: 12 VDC/1 A per channel
Ripple & Noise 150 MVp-P: 0.15 Vp-p (150 mV)
AC Input Connector: C8
DC Output Connector: DC Plug: grid terminal
Storage Conditions: -40°C to 80°C, Humidity: 5% to 95% (non-condensing)
Cable Length Compensation
- Normal: 12 VDC
- Long: 13.5 VDC
- Ex-Long: 15 VDC
