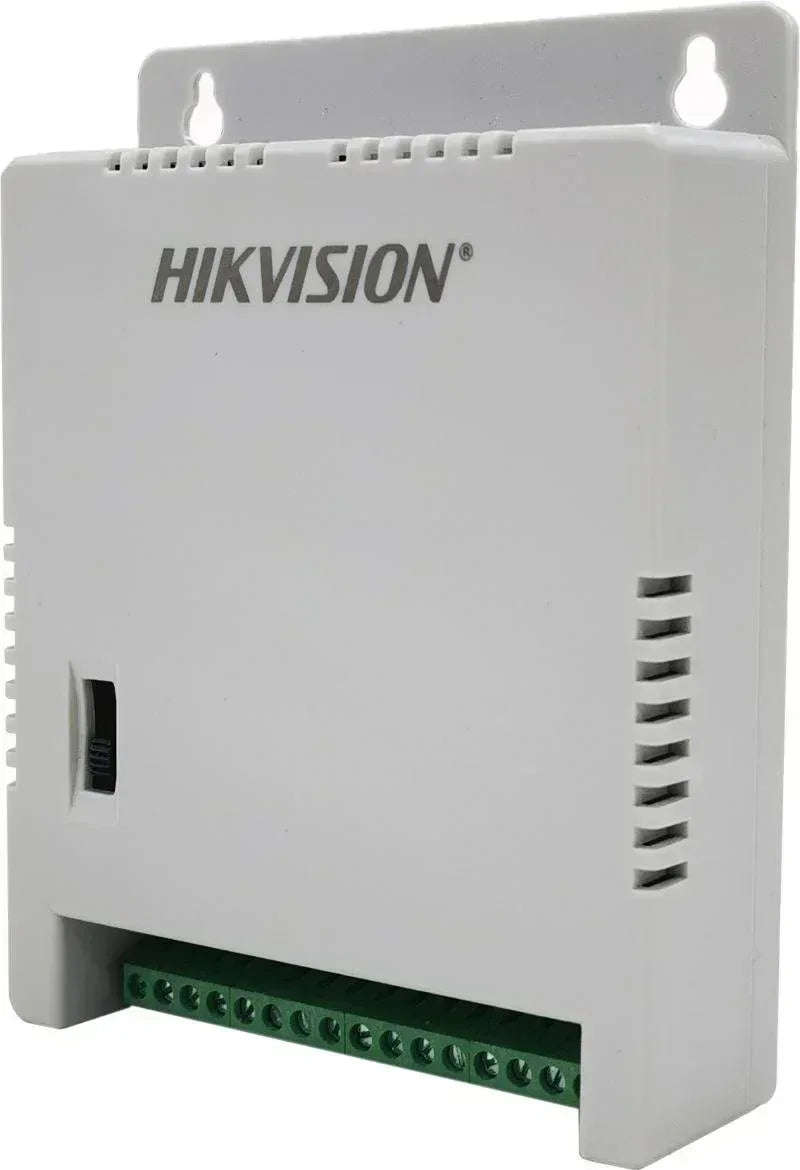

Hikvision Multi-channel SMPS

Hikvision Multi-channel SMPS

10 available / new
R399.00
Shipping
This product qualifies for free shipping in South Africa, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DS-2FA1205-C8
Bob Shop ID
642257810

Hikvision Multi-channel SMPS

  • 60 W, 12 VDC/1 A max per channel, max total current is 5 A
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input
  • Parameters
  • Appearance White
  • Dimension144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
  • Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
  • LED Indicator Green
  • Input150 to 285 VAC, 47 Hz to 63 Hz
  • Output12 VDC/1 A per channel
  • Ripple & Noise 150 mVp-p0.15 Vp-p (150 mV)
  • AC Input Connector C8
  • DC Output Connector DC Plug: grid terminal
  • Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
  • Cable Length Compensation

    Normal: 12 VDC

    Long: 13.5 VDC

    Ex-Long: 15 VDC
