| Brand | HIKVISION |
|---|

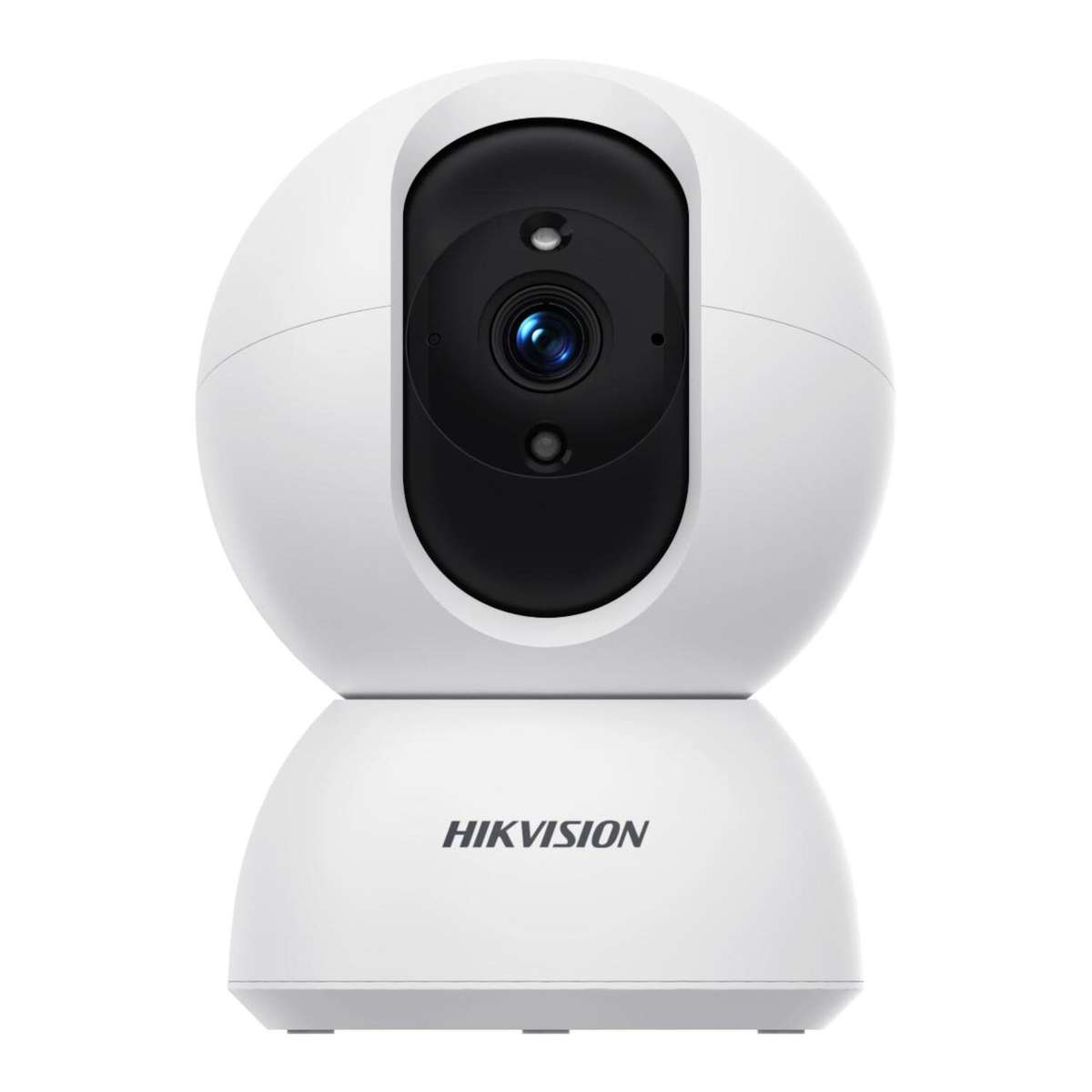

| Model | Hikvision Network PT Security Camera, 4mm Lens, 2MP |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|
| Max. Resolution | 1920 × 1080 (2 MP) |
|---|
| Min. Illumination | Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|---|
| Shutter Time | 1/3 s to 1/10000 s |
|---|
| Day & Night | IR cut filter |
|---|
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
|---|
| Lens Type | Fixed focal lens, 4 mm |
|---|
| Focal Length & FOV | 4 mm: Horizontal FOV 75°, Vertical FOV 45°, Diagonal FOV 85° |
|---|
| Aperture | F2.0 |
|---|
| Lens Mount | M12 |
|---|
| Supplement Light Type | IR |
|---|
| IR Wavelength | 850 nm |
|---|
| Supplement Light Range | Up to 10 m |
|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432) |
|---|
| Sub-Stream | 50 Hz: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288) |
|---|
| Video Compression | Main Stream: Main stream: H.265/H.264 Sub-stream: H.265/H.264 |
|---|
| Video Bit Rate | Up to 1 M bps |
|---|
| Frame Rate | Max.15 fps - Self-Adaptive during network transmission |
|---|
| Audio Compression | G.711/AAC-LC |
|---|
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC) |
|---|
| Audio Sampling Rate | 8 kHz/16 kHz |
|---|
| Environment Noise Filtering | Yes |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS |
|---|
| Simultaneous Live View | Up to 4 channels |
|---|
| API | ONVIF (Profile S, Profile T, Profile G), SDK |
|---|
| User/Host | Administrator |
|---|
| Security | Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface |
|---|
| Client | iVMS-4200, Hik-Connect, Hik-Partner-Pro |
|---|
| Transfer Rate | 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps |
|---|
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|
| Frequency Range | 2.412 GHz to 2.472 GHz |
|---|
| Channel Bandwidth | 20 MHz |
|---|
| Wireless Range | Up to 50 m (performance varies based on environment) |
|---|
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software |
|---|
|
