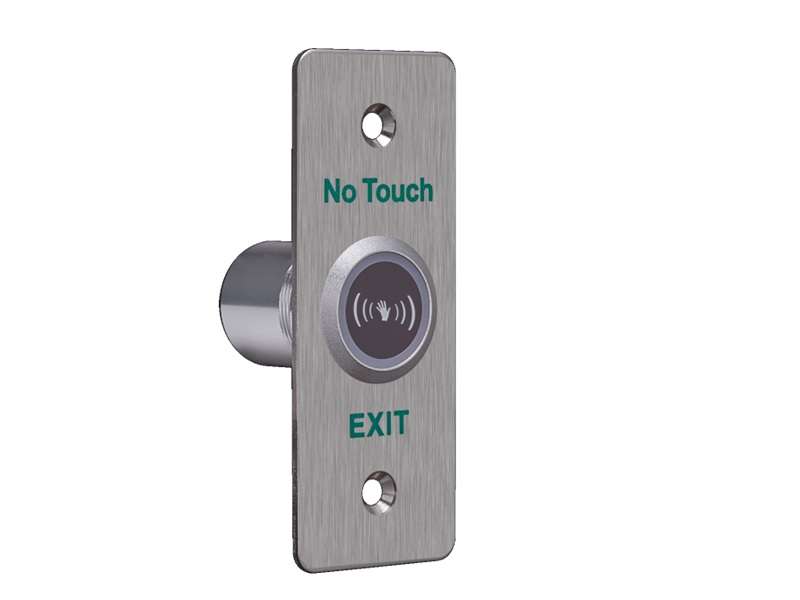

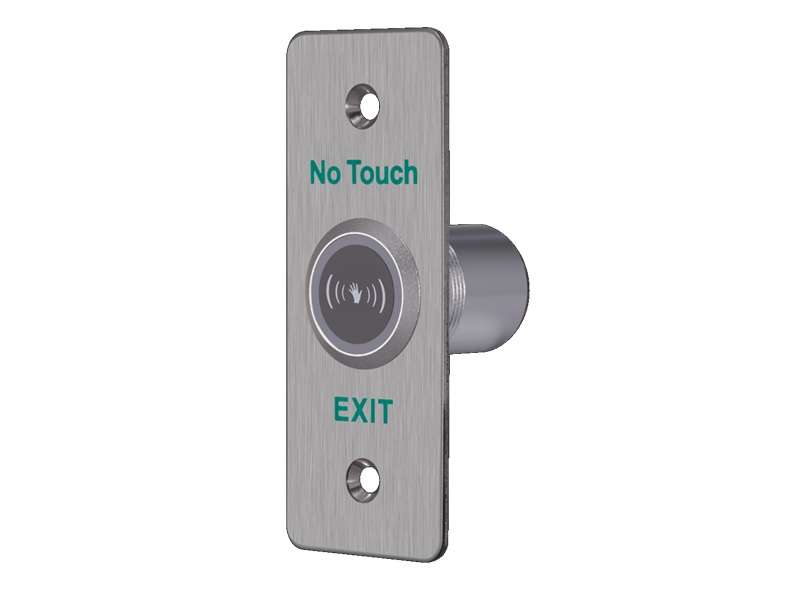

Exit & Emergency Button
New version of DS-K7P03, there is "/T" in the label
Stainless steel panel
Dimension(L`d7W`d7H): 90`d735`d737.7mm(3.54`d71.38`d71.48").
General
Working temperature
-20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F)
Working humidity
0 to 95% (relative humidity)
Dimensions
90 mm `d7 35 mm `d7 37.7 mm (3.54" `d7 1.38" `d7 1.48")
0.18 kg (0.40 lb)
Material
Panel: stainless steel
Power supply
30 VDC, 1 A
Door type
All kinds of narrow doorframes
Signal output
NO/NC/COM contact
Aging Test
Already passed 1 million times aging test
Exit Button/General
Current rating
1 A@30 VDC
Output contact
NO/NC/COM contact
Aging test
Already passed 1 million times aging test
Suitable door
All kinds of narrow doorframes
