Hikvision Power Supply

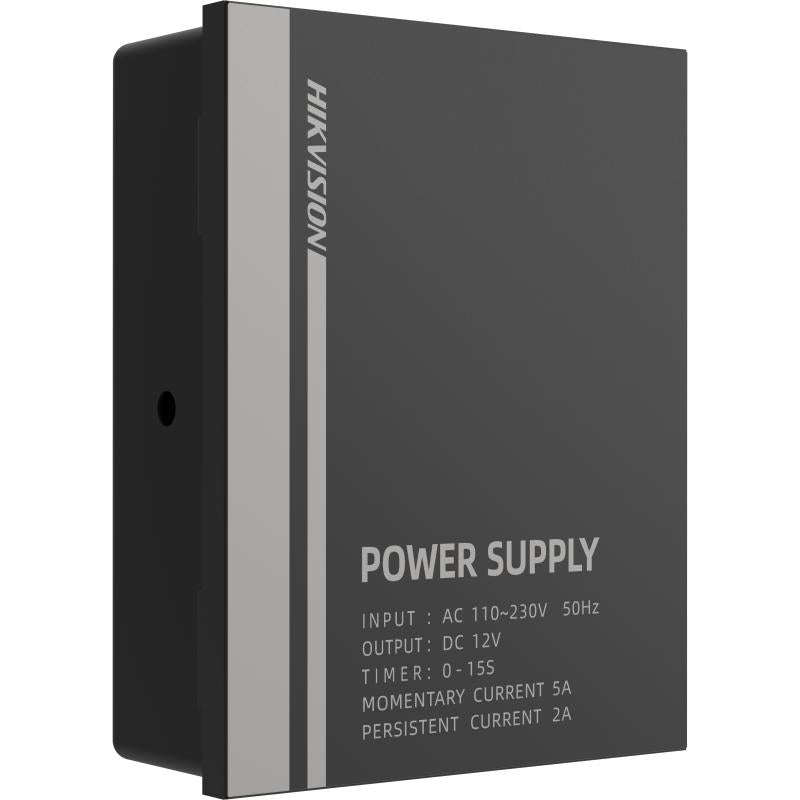

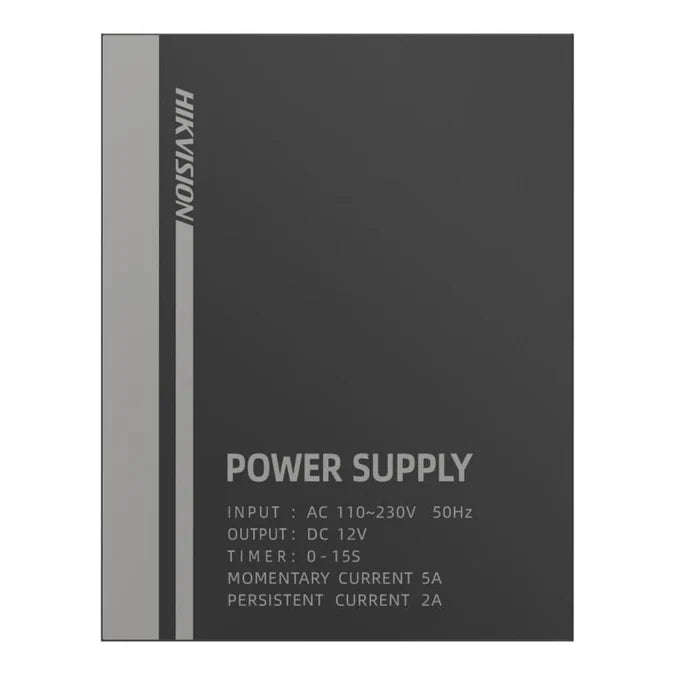

Hikvision DS-K7M-AW24 Access Control Power Supply

The Hikvision DS-K7M-AW24 is a reliable power supply unit designed for professional access control installations. It provides stable 12VDC power for an access control terminal and electric lock, making it ideal for offices, residential complexes, commercial buildings, warehouses, schools, retail stores, and controlled-entry systems.

With a wide 110230VAC input range and 24W output power, the DS-K7M-AW24 offers dependable operation for standard access control setups. It is suitable for powering devices such as Hikvision access terminals, magnetic locks, electric locks, exit buttons, and related access control accessories, depending on the installation requirements.

The unit includes built-in protection against short circuits, excess load, and over-voltage, helping protect connected equipment and improve overall system reliability. It also supports storage battery connection, allowing backup power functionality when used with a compatible battery.

Key Features

• Hikvision access control power supply

• Model: DS-K7M-AW24

• Designed for access control terminals and locks

• Can supply power for 1 access control terminal and 1 lock

• Input voltage: 110230VAC

• Output voltage: 12VDC

• Output power: 24W

• Momentary current: 5A

• Persistent current: 2A

• Short-circuit protection

• Excess load protection

• Over-voltage protection

• Storage battery support

• MTBF greater than 200,000 hours

• Compact wall-mountable power box design

Ideal For

• Access control installations

• Hikvision access terminals

• Magnetic lock systems

• Electric lock systems

• Office entrances

• Apartment blocks and complexes

• Commercial buildings

• Staff access doors

• Retail and warehouse entry points

• Door controller power applications

Technical Specifications

• Brand: Hikvision

• Model: DS-K7M-AW24

• Product Type: Access Control Power Supply

• Power Input: 110 to 230VAC

• Power Output: 12VDC, 24W

• Momentary Current: 5A

• Persistent Current: 2A

• Working Temperature: -10°C to 50°C

• Working Humidity: <95%

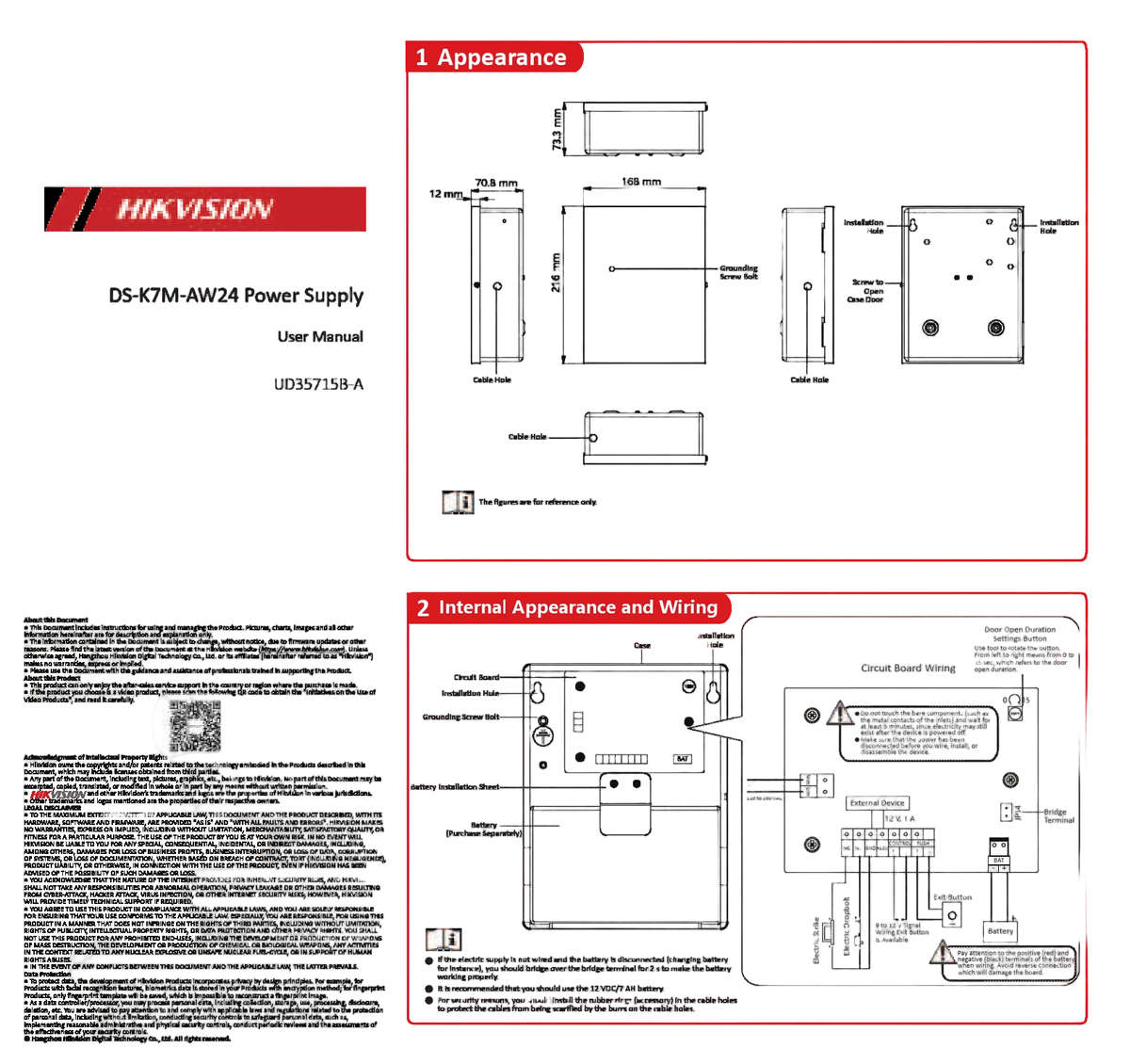

• Dimensions: 168 × 216 × 73.3mm

• Protection: Short-circuit, overload, and over-voltage protection

• Backup Battery Support: Yes, storage battery available

Why Choose the Hikvision DS-K7M-AW24?

The Hikvision DS-K7M-AW24 is a practical and dependable power solution for access control systems. With stable 12VDC output, protective circuitry, battery backup support, and compatibility with terminal-and-lock setups, it provides installers with a neat and reliable power supply option for professional door access installations.

Installation Note

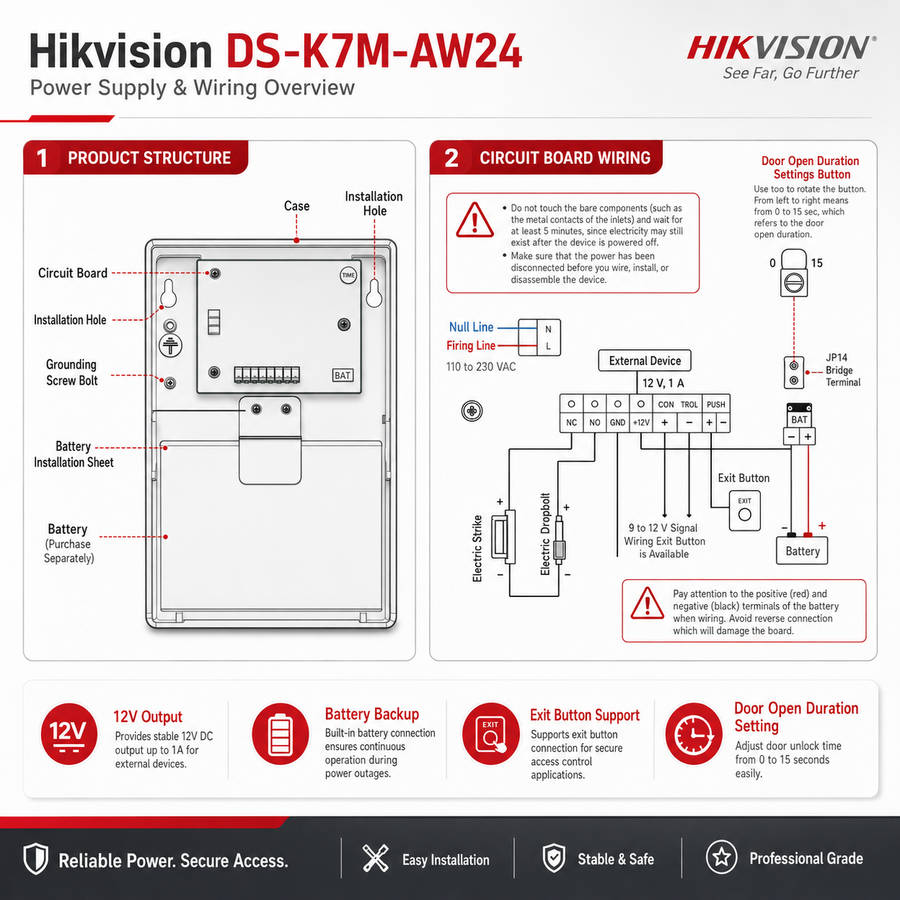

Professional installation is recommended to ensure correct mains wiring, battery connection, terminal power output, lock wiring, earthing, fuse protection, and safe access control operation.

NB: Battery NOT Included
