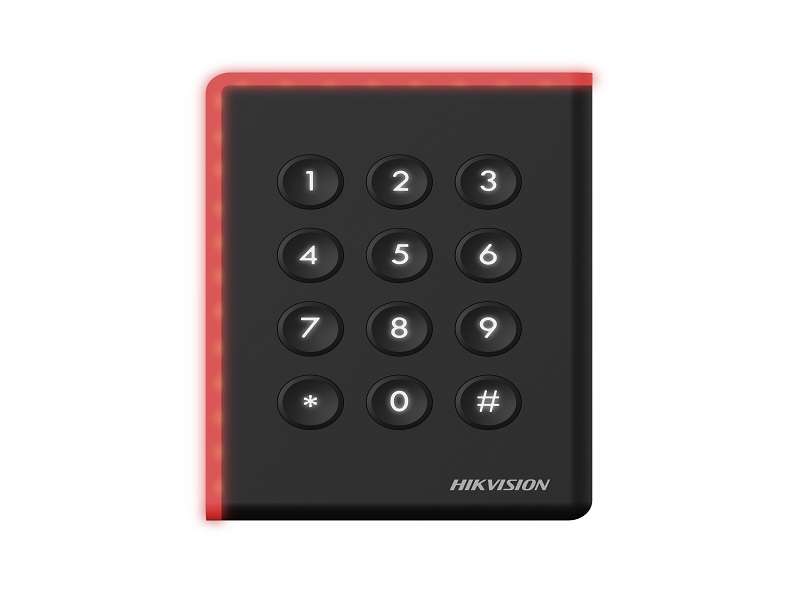

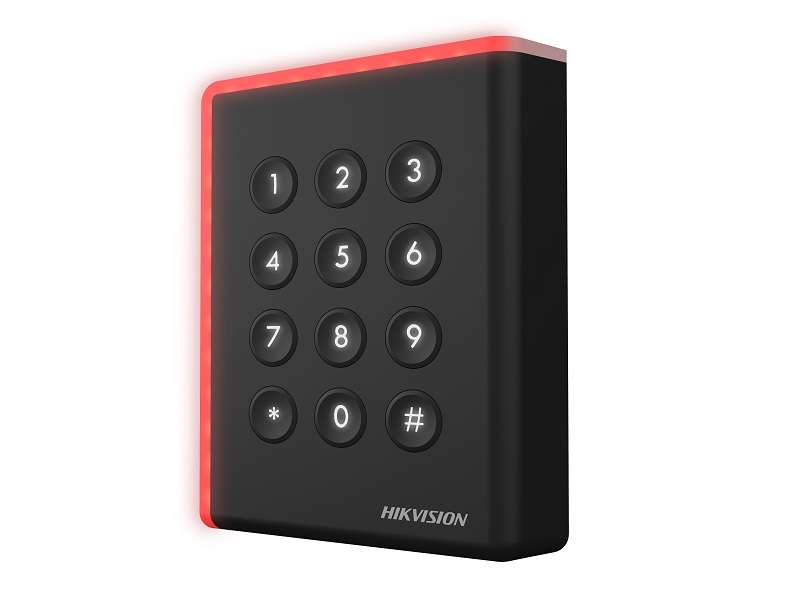

Pro 1108A Series Card Reader
Supports RS-485, Wiegand (W26, W34) protocol, and OSDP protocol
Supports reading EM card (Frequency: 125 KHz) (DS-K1108AE/DS-K1108AEK`a3`a9
Supports reading M1 card (Frequency: 13.56 MHz). Supports reading Desfire&Felica card (DS-K1108AD/DS-K1108ADK)
Tamper-proof function
Built-in buzzer for status indication
Authentication
Card radio frequency standard
ISO 14443-A
General
Power supply
12 VDC, 2 W
Power consumption
2 W
Working temperature
-20 `b0C to 65 `b0C (-4 `b0F to 149 `b0F)
Working humidity
10% to 90% (no condensing)
Protective level
IP65
Dimensions
123 mm `d7 88 mm `d7 21 mm (4.84" `d7 3.46" `d7 0.83")
Installation
Wall mounting
Gross weight: 0.37 kg (0.82 lb)
Net weight: 0.14 kg (0.31 lb)
Keypad
DS-K1108AE/DS-K1108AM/DS-K1108AD: No keypad
DS-K1108AEK/DS-K1108AMK/DS-K1108ADK: With keypad
Buzzer
Beeper
Function
ID settings
via DIP switch
