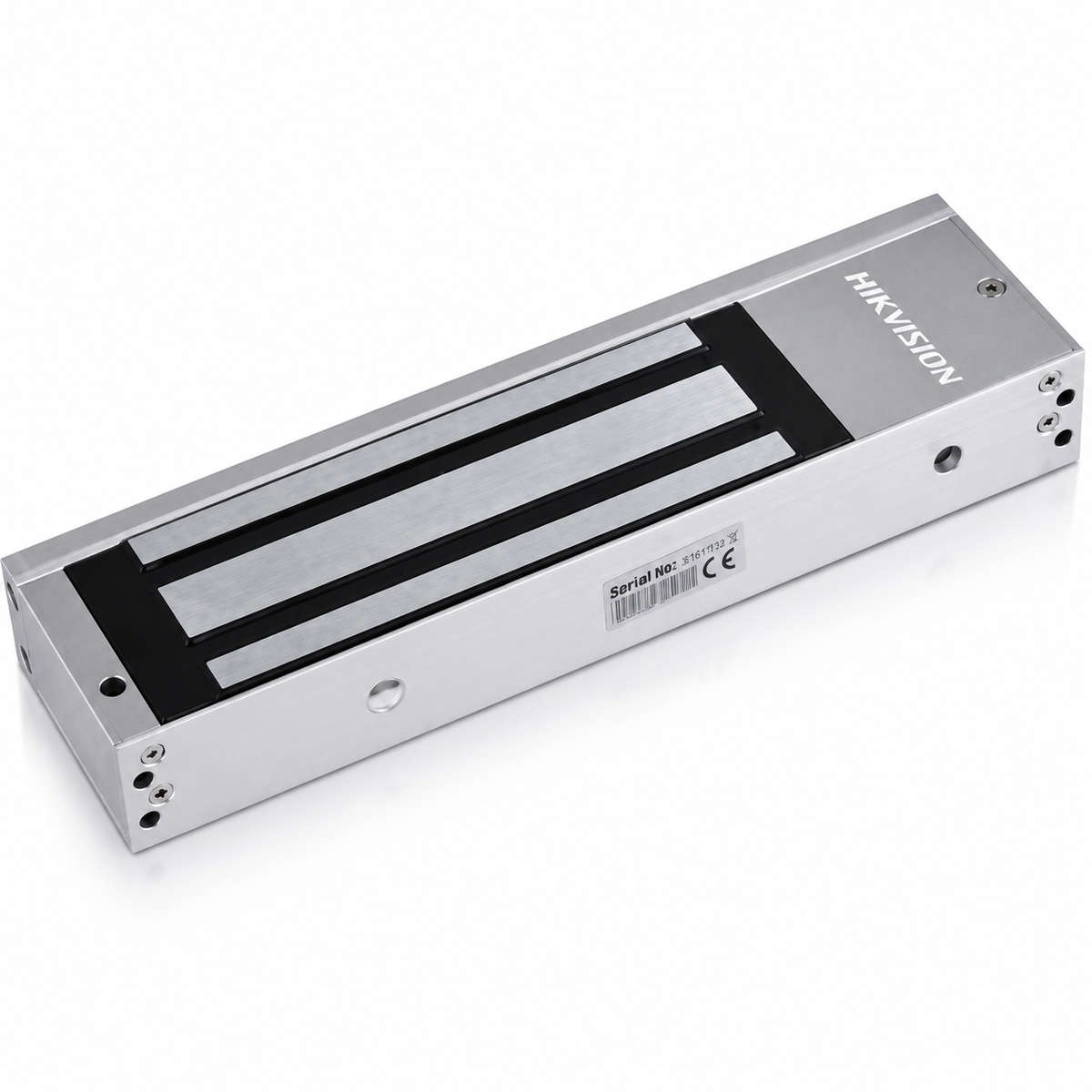

Hikvision DS-K4H450S Pro Series Single-Door Magnetic Lock (500KG)
The Hikvision DS-K4H450S is a heavy-duty single-door electromagnetic lock designed for secure access control installations in residential, commercial and industrial environments. With a powerful 500kg holding force, this maglock provides strong, reliable door locking for high-security access points.
Built for professional access control systems, the DS-K4H450S is suitable for wooden, glass and metal doors. It supports both 12V DC and 24V DC power input, making it flexible for a wide range of installation requirements. The built-in LED status indicator clearly shows whether the door is locked or unlocked, while the dry contact signal output allows lock status monitoring through compatible access control equipment.
Its robust construction, clean Hikvision design and dependable performance make it ideal for offices, warehouses, retail stores, apartment buildings, access-controlled gates, server rooms and secure internal doors.
Key Features:
-
Single-door electromagnetic maglock
-
500kg / 1102.5 lbs holding force
-
Suitable for wooden, glass and metal doors
-
Supports 12V DC or 24V DC ±10%
-
Default voltage: 12V DC
-
Current draw: 12V DC / 420mA or 24V DC / 210mA
-
LED lock status indicator
-
Green indicator: locked
-
Red indicator: unlocked
-
Dry contact lock status signal output
-
Supports maximum signal output power rating of 3A
-
Lock body size: 265 × 71.8 × 38.8mm
-

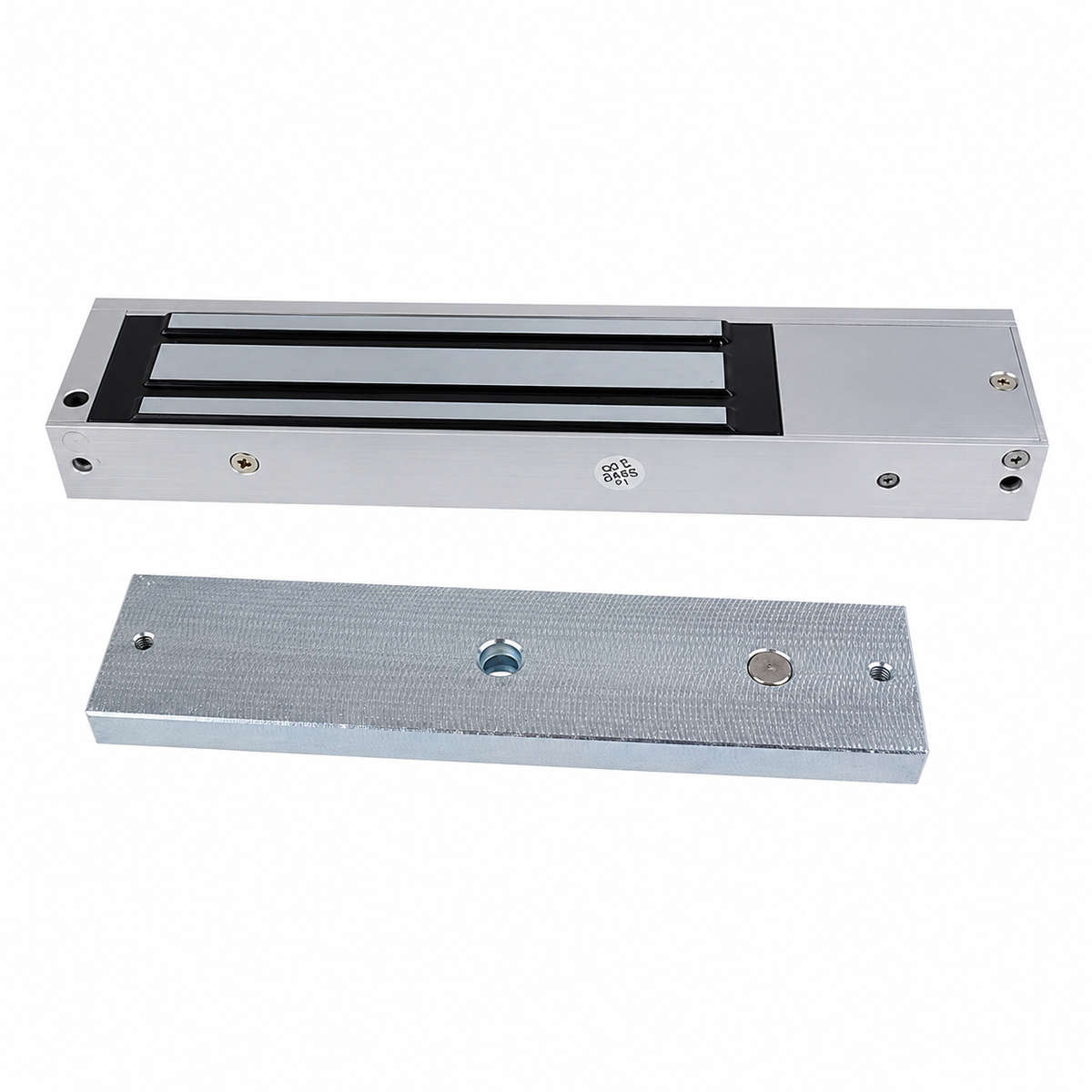

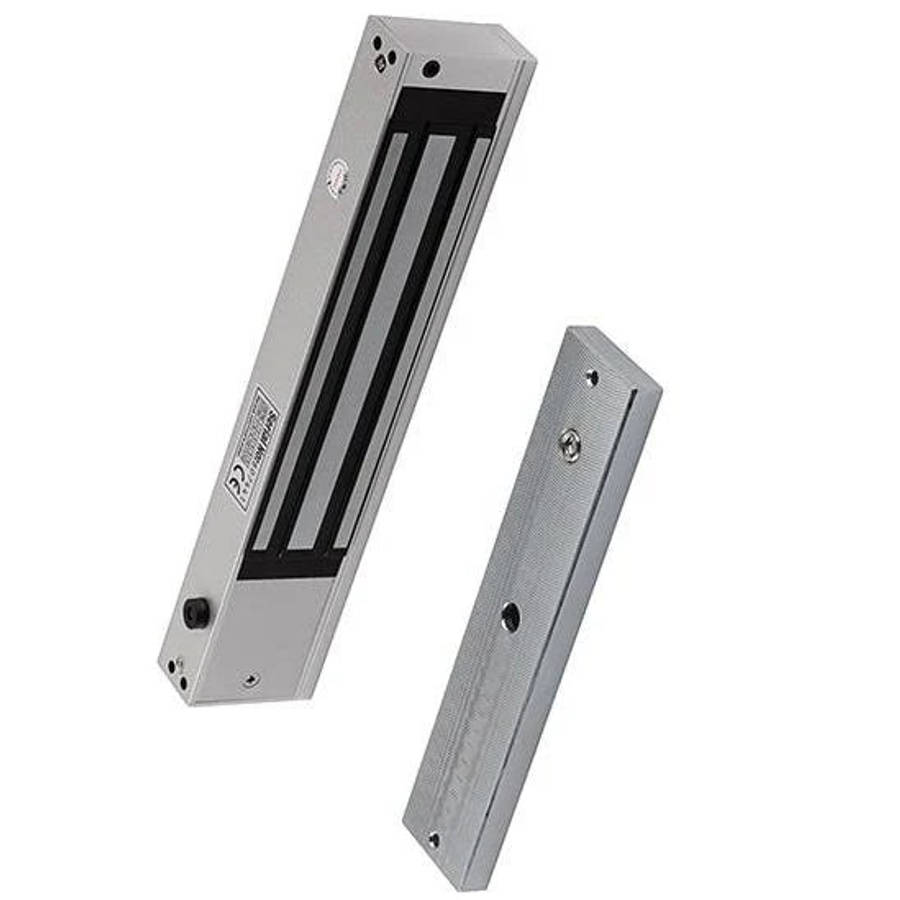

Armature plate size: 185 × 60 × 13mm
-
Weight: approximately 4.5kg
-
Compatible with professional access control systems
-
Optional compatible bracket: DS-K4H450-LZ
Ideal For
Access-controlled doors in offices, retail stores, warehouses, residential estates, schools, server rooms, commercial buildings and secure entry points where a strong, reliable 500kg magnetic lock is required.
