Hikvision Secure Door Control Module

DS-K2M061

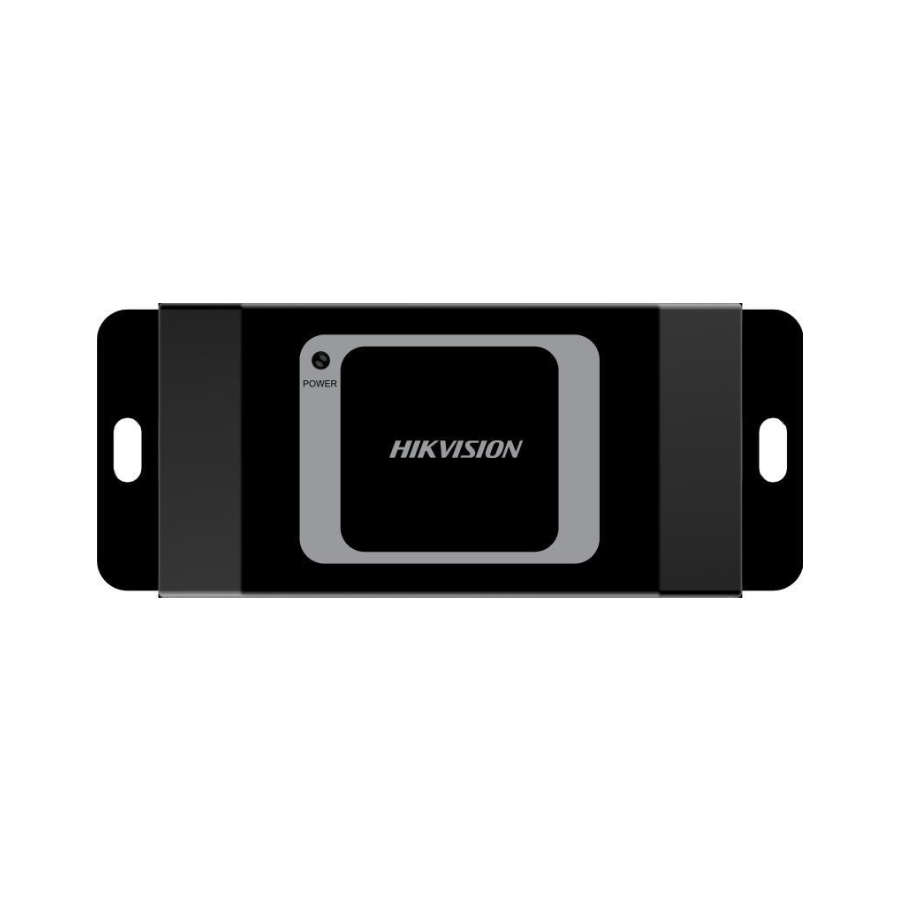

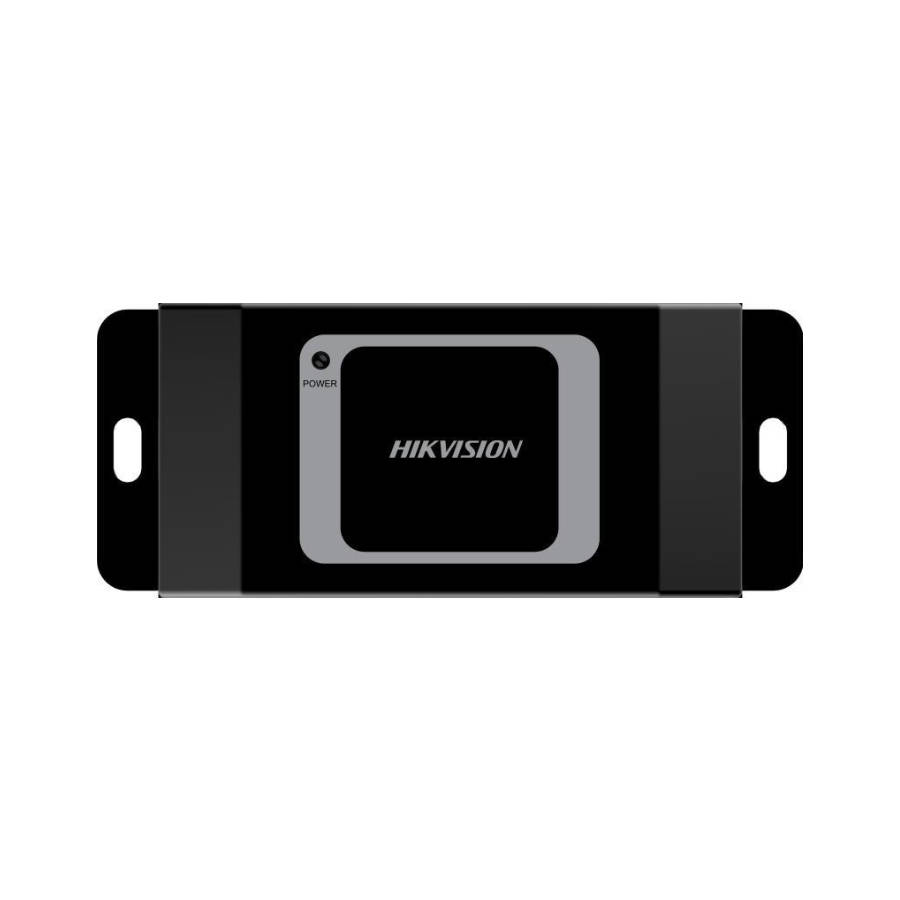

Hikvision DS-K2M061 Secure Door Control Unit

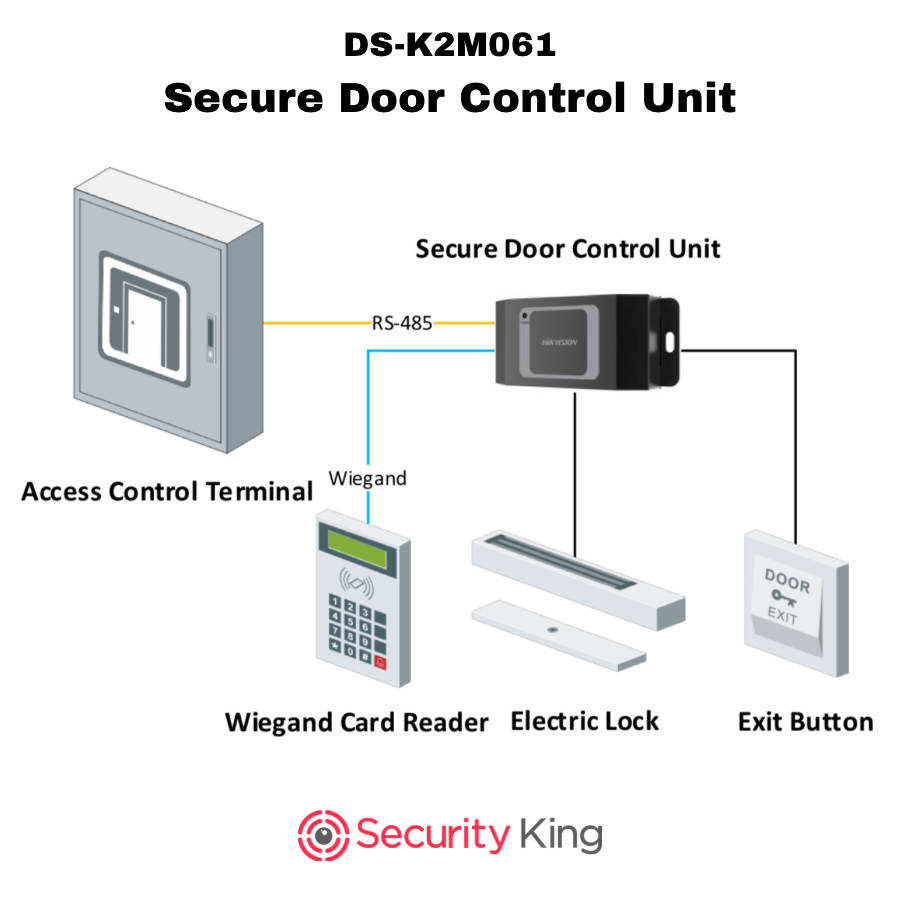

The Hikvision DS-K2M061 is a compact secure door control unit designed to improve the safety, reliability, and control of access control installations. It acts as an interlayer between the access control terminal and door hardware, including the lock, door magnetic contact, exit button, and related control signals.

Using RS-485 communication, the DS-K2M061 receives commands from the access control terminal to perform door operations such as open door, close door, normally open, and normally closed. It also collects door magnetic, exit button, and tamper-proof signals and sends them back to the terminal for monitoring, helping create a more secure and responsive access control system.

The module supports tampering alarm functionality, RS-485 communication status indicators, a 4-channel DIP switch for ID configuration, and a Wiegand interface for connecting a Wiegand card reader. It also supports fire interface and exit button linkage, making it suitable for professional access control setups in offices, commercial buildings, warehouses, residential complexes, and restricted-entry areas.

Key Features

• Secure door control unit for Hikvision access control systems

• Connects between the access control terminal and door hardware

• RS-485 communication with the access control terminal

• Supports open door, close door, normally open, and normally closed commands

• Collects door magnetic, exit button, and tamper-proof signals

• Tampering alarm support

• RS-485 communication indicator for status visibility

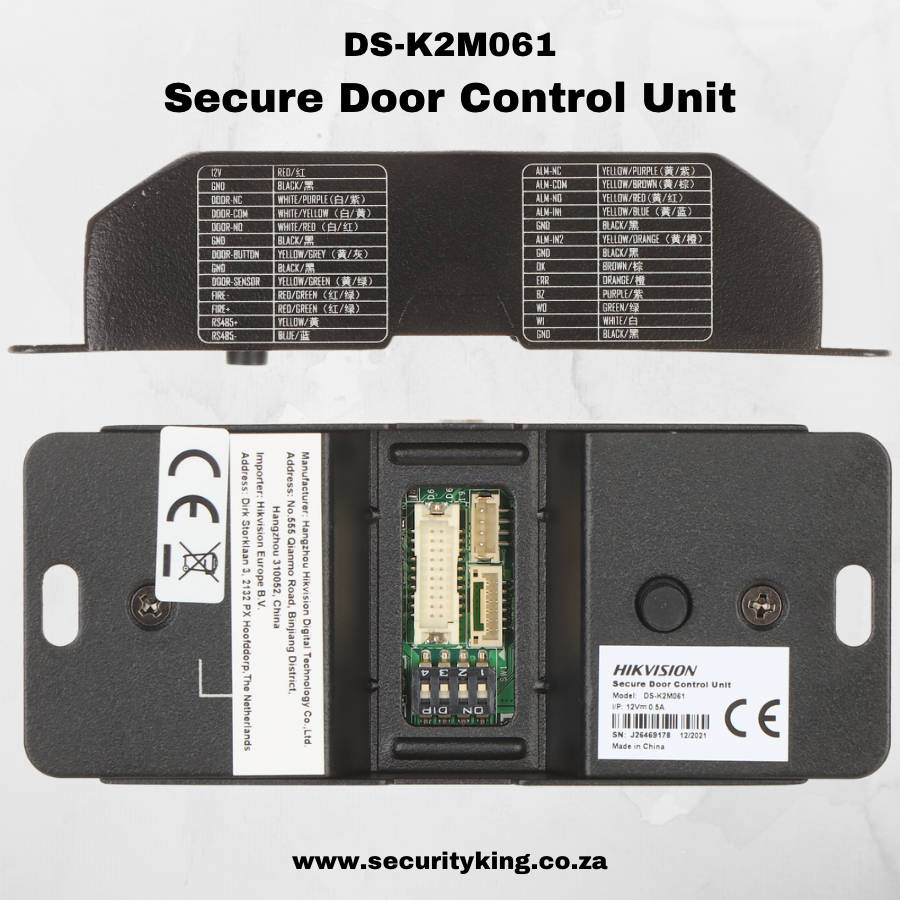

• 4-channel DIP switch for ID number configuration

• Wiegand interface for connecting a Wiegand card reader

• Fire interface and exit button linkage

• 1 lock control

• 1 exit button input

• 1 door contact input

• 2 alarm inputs and 1 alarm output

• 12 VDC, 0.5 A power supply

• Wall-mount installation

• Compact dimensions: 48 mm × 115 mm × 26 mm

• Operating temperature: -40°C to 70°C

• Operating humidity: 0% to 90% RH

Ideal For

• Office access control systems

• Commercial buildings

• Residential complexes

• Staff entrances

• Warehouses and restricted areas

• Hikvision terminal and lock integration
