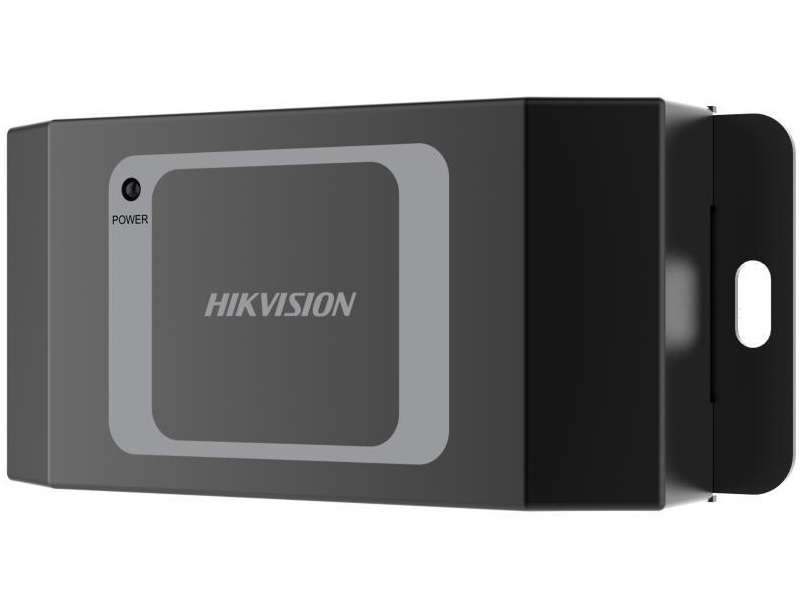

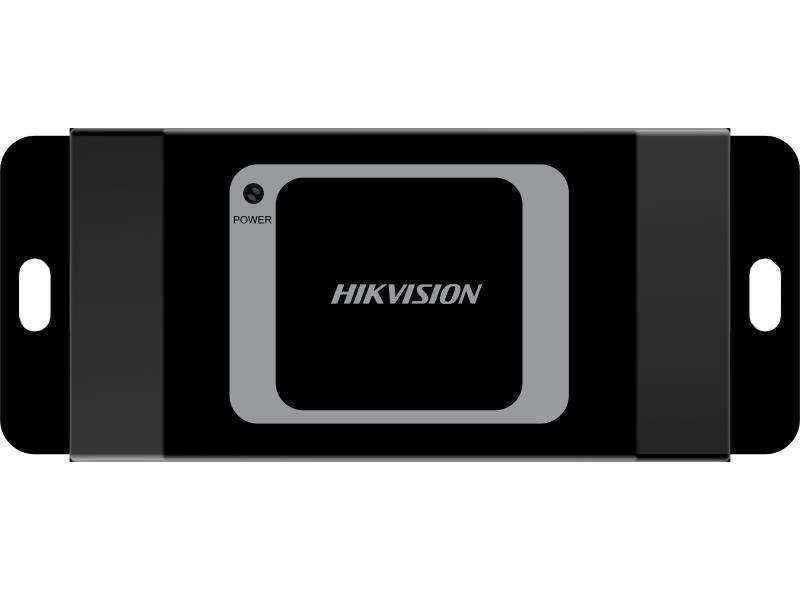

Secure Door Control Module
Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
Supports tampering alarm
Supports RS-485 communication indicators to show the communication status
4-ch DIP switch supporting ID No. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
Fire interface and exit button linkage
Interface
Lock control
1
Exit button
1
Door contact input
1
Alarm input
2
Alarm output
1
RS-485
1
Wiegand
1
General
Indicator
1 for power supply
Power supply
12 VDC 0.5A
Working temperature
-40 `b0C to 70 `b0C
Working humidity
0% to 90%
Dimensions
48 mm `d7 115 mm `d7 26 mm (1.9" `d7 4.5" `d7 1.0")
Installation
Wall Mounting
