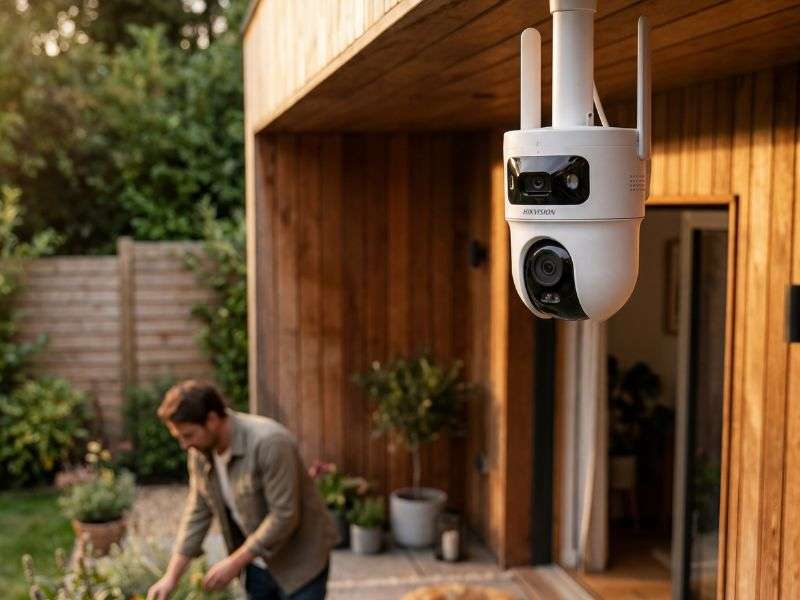

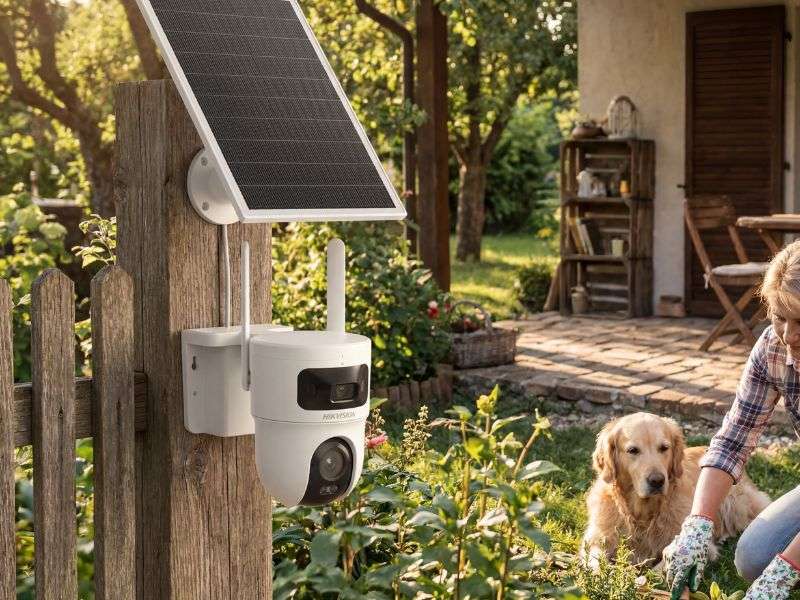

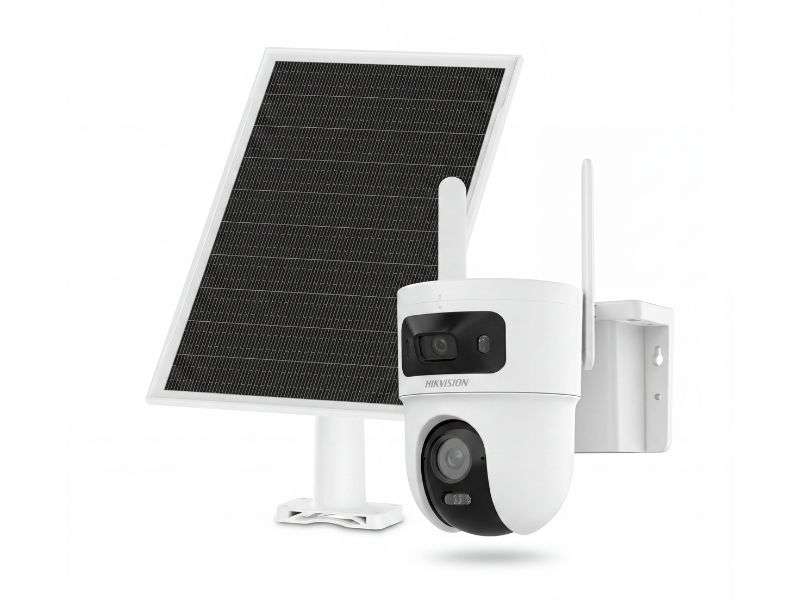

4+4MP 24/7 Solar 4G Dual-lens PT Camera
Support AOV Mode: 24/7 video recording
8 W solar panel and 9000 mAh battery
Support 4G LTE data transmission
Smart Hybrid Light: 30 m white light and IR
Built-in microphone and speaker, support two-way audio
Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
Panoramic Details: Wide-angle lens for background information, specific lens for close-up details
Motion Detection 2.0: Support person and vehicle detection
Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 `d7 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: -170`b0 to 170`b0,tilt: 0`b0 to 80`b0
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.2`b0, vertical FOV 54.2`b0, diagonal FOV 114.6`b0
4 mm, horizontal FOV 78.8`b0, vertical FOV 42.3`b0, diagonal FOV 93.4`b0
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Aperture
F1.6
Lens Mount
M12
Iris Type
Fixed
Depth of Field
2.8 mm: 1.4 m to
4 mm: 1.5 m to
DORI
DORI
2.8mm D: 61 m, O: 24 m, R: 12 m, I: 6 m
4mm D: 82 m, O: 32 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
Channel 1:
50 Hz: 12.5 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
60 Hz: 15 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
Channel 2:
50 Hz: 12.5 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
60 Hz: 15 fps (2560 `d7 1440, 1920 `d7 1080, 1280 `d7 720)
Sub Stream
Channel 1:
50 Hz: 12.5 fps (768 `d7 432)
60 Hz: 15 fps (768 `d7 432)
Channel 2:
50 Hz: 12.5 fps (768 `d7 432)
60 Hz: 15 fps (768 `d7 432)
Video Compression
Main stream: H.265,
Sub-stream: H.265
Video Bit Rate
32 Kbps to 8 Mbps
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711ulaw
Audio Bit Rate
64 Kbps(G.711ulaw)
Audio Sampling Rate
8kHz
Environment Noise Filtering
Yes
Network
Simultaneous Live View
Up to 6 channels
API
SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
Hik-Connect
Mobile Communication
Standard
LTE-FDD
Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28
LA:LTE-FDD: B2/3/4/5/7/8/28/66
Uplink and Downlink Data Rate
Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
SIM Card Type
Nano SIM
Image Settings
brightness,contrast,white balance,saturation,sharpness
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Wide Dynamic Range (WDR)
Digital WDR
Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes
Built-in Speaker
Yes, 1 built-in speaker
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkage
notify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
General
Power
12 V, 1.5 A, max. 18 W
Material
Plastic
Dimension
`d8110.9 mm `d7 145.4 mm (`d84.37" `d7 5.72")
Package Dimension
322 mm `d7 197 mm `d7 210 mm (12.68" `d7 7.76" `d7 8.27")
Approx. 1560 g (3.44 lb.)
With Package Weight
Approx. 2180 g (4.81 lb.)
Startup and Operating Conditions
-30 `b0C to 50 `b0C (32 `b0F to 122 `b0F). Humidity 95% or less (non-condensing)
General Function
Mirror,flash log
Storage Conditions
-20 `b0C to 25 `b0C (-4 `b0F to 77 `b0F). Humidity 70% or less (non-condensing)
Flashing Light
NA
Battery
Battery Type
Lithium
Capacity
9000 mAh
Max. Charging Voltage
8.4 V
Battery Voltage
6 V to 8.4 V
Operating Temperature
Charging: 0 `b0C to 45 `b0C (32 `b0F to 113 `b0F)
Discharging: -20 `b0C to 55 `b0C (-4 `b0F to 131 `b0F)
Cycle Lifetime
Cap(800th) 80%
Battery Weight
Approx. 170 g (0.37 lb.)
Approval
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Solar Power
Solar Panel Type
Monocrystalline silicon solar panel
Power Consumption
8 W
Solar Panel Dimensions & Weight
Dimensions: 263.8 mm `d7 171.7 mm `d7 18.5 mm (10.39" `d7 6.76" `d7 0.73")
Weight: 450 g (0.99 lb.)
Working Temperature
-20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F)
Protection
IP65
