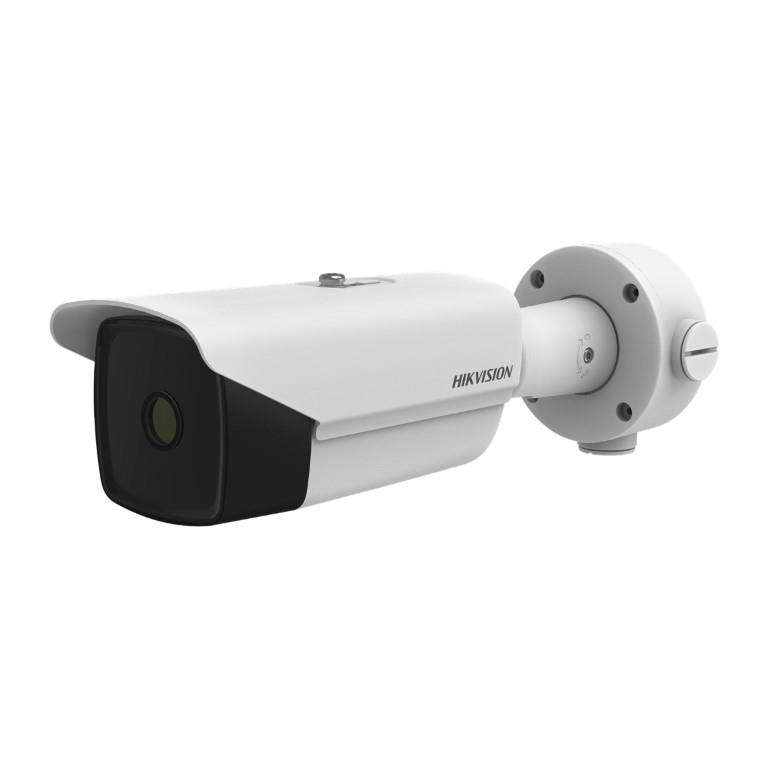

Hikvision Thermal Network Bullet Camera DS-2TD2138-25/QY

Features

• 384 × 288 resolution, 12 m, VOx UFPA, NETD < 35 mK (25°C, F1.0)

• Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)

• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR

• High quality detector with 10 years guarantee

Specification

Thermal Module

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays

• Resolution: 384 × 288

• Pixel Pitch: 12 m

• Spectral Range: 8 m to 14 m

• NETD: < 35 mK (25°C, F1.0)

• Focal Length: 25 mm

• IFOV: 0.48 mrad

• Field Of View: 11.0° × 8.0° (H × V)

• Min. Focusing Distance: 13 m

• Aperture: F1.0

• Digital Zoom: 2×, 4×, 8×

Image Effect

• Target Coloration: Yes. Supported in white hot and black hot mode.

Smart Function

• VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total

• Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)

• Temperature Range: -20°C to 150°C (-4°F to 302°F)

• Temperature Accuracy: ± 8°C (± 14.4°F)

Video And Audio

• Main Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)

• Sub-Stream: 25 fps (704 × 576, 640 × 512, 352 × 288)

• Third Stream: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)

• Video Compression:

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPEG
