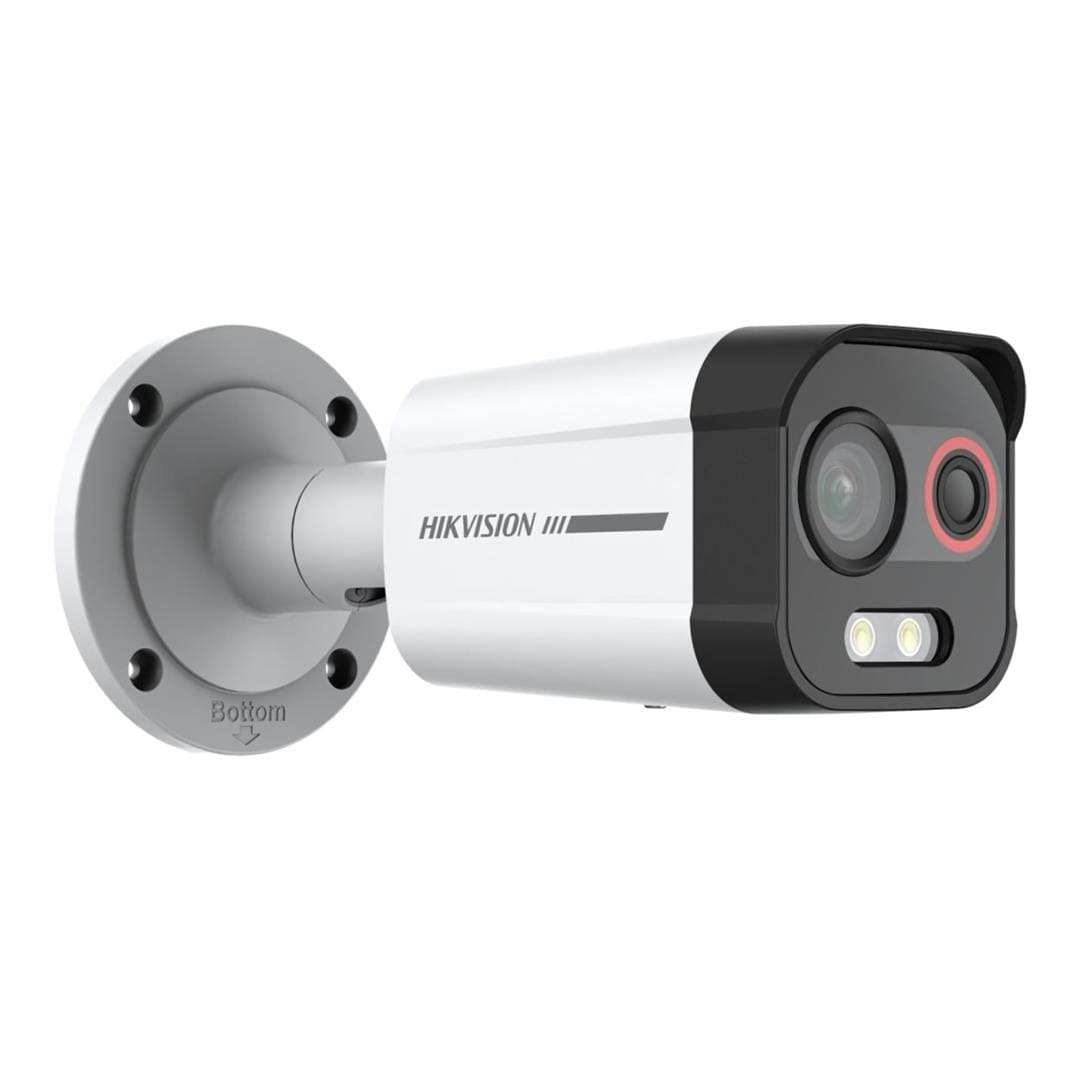

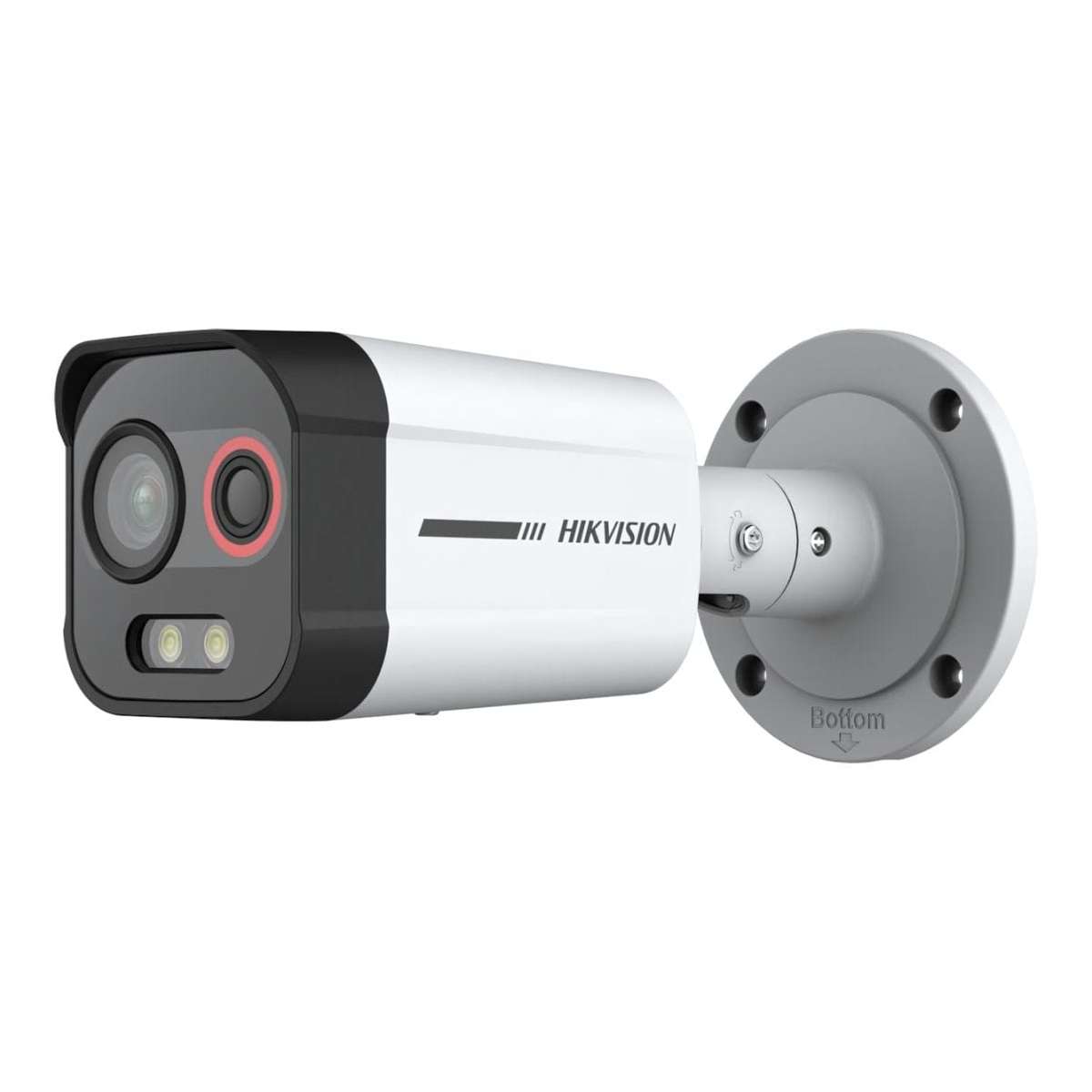

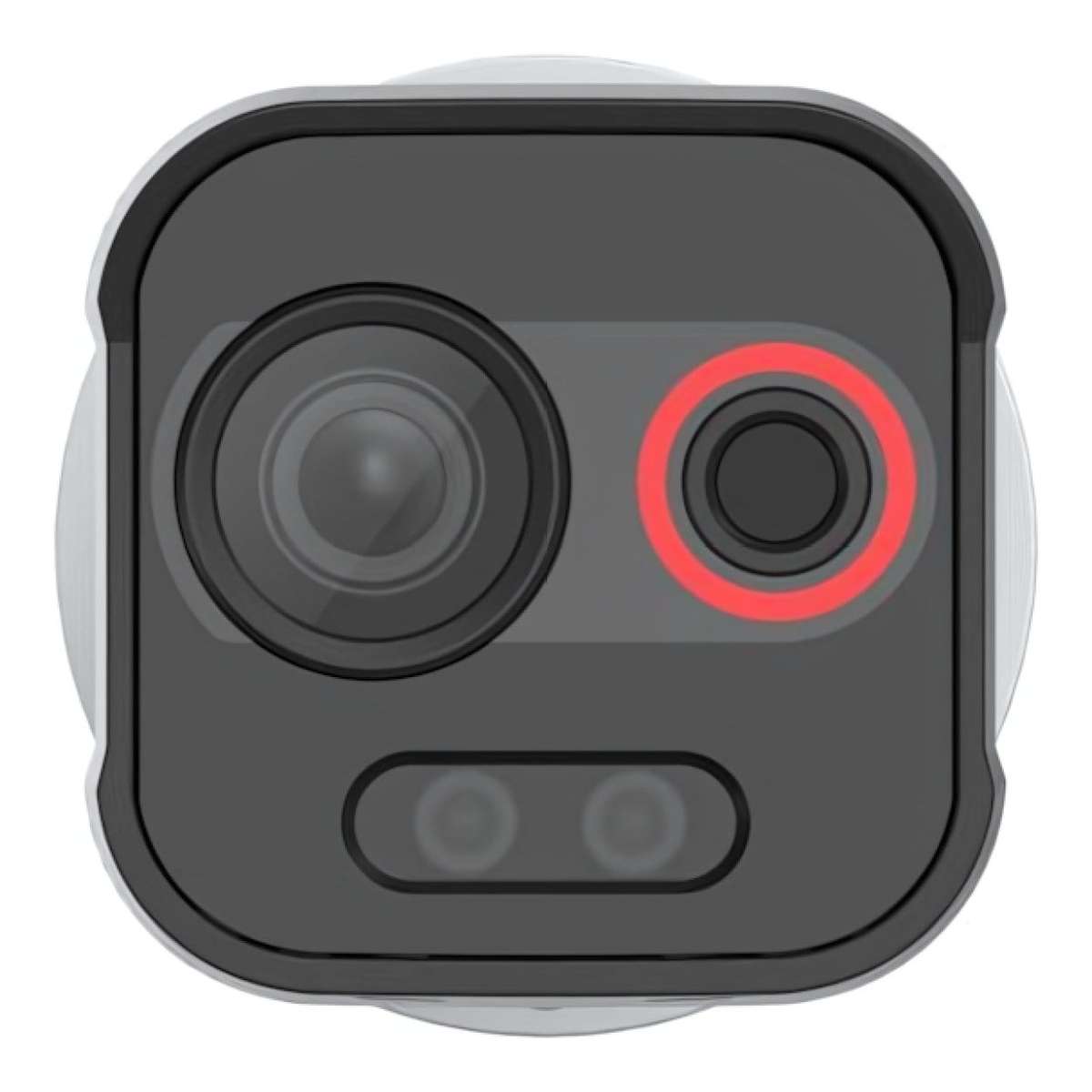

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2608-2/QA

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2608-2/QA

• 96 × 72 resolution, 12 m, VOx UFPA, NETD < 55 mK (25°C, F1.0)
• Video content analysis: vehicle/human classification
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee

Thermal Module

• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution96 × 72
• Pixel Pitch12 m
• Spectral Range8 m to 14 m
• NETD< 55 mK (25°C, F1.0)
• Focal Length2.6 mm
• IFOV4.62 mrad
• Field of View25.0° × 18.75° (H × V)
• Min. Focusing Distance0.05 m
• ApertureF1.0
• Digital Zoom×2, ×4

Optical Module

• Image Sensor1/1.8" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0005 Lux -ï¼F1.0，AGC ONï¼, 0 Lux with Light
• Shutter Speed1 s to 1/100,000 s
• Focal Length6 mm
• Field of View56.0° × 30° (H × V)
• Aperture (Range)F1.0
• WDR120 dB

Image Effect

• Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

• Light SupplementWarm Light
• Light Supplement Distance30 m

Audible and Visual Alarm

• White Light RangeUp to 30 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio alarm

  Yes

  1 preset voice alerts

  6 importable user-defined voice alerts

Smart Function

• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Video and Audio

• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

  Thermal:

  25 fps (704 × 576, 352 × 288, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+

  Local service : Chrome 57.0 +, Firefox 52.0 +

Interface

• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.



General

• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  12 VDC ± 25%, 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Power Consumption

  12 VDC ± 25%: 0.7 A, Max.8.5 W

  PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard

  TVS 4000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions

  211.5 mm × 105 mm × 105 mm (8.32" × 4.13\" × 4.13\")



• Weight

  869.2 g (1.92 lb)



Detection Range Table/Smart Function Range

• VCA Range for Humans20 m
• VCA Range for Vehicles60 m
