FEATURES

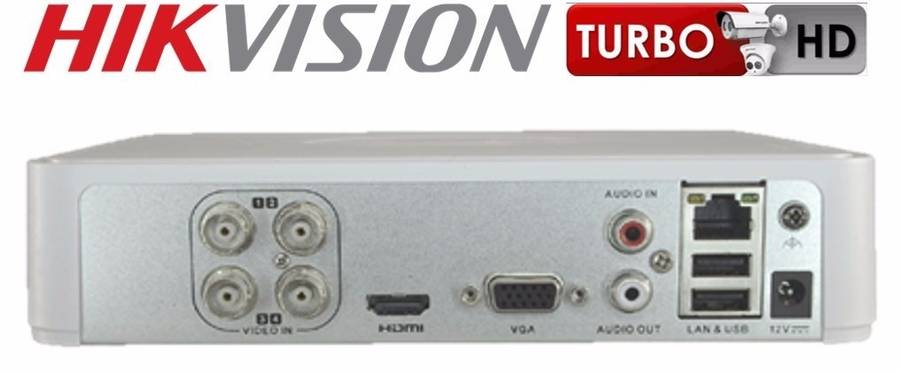

Brand | Hikvision |
Type | HD DVR |
Video Compression: | H.264 |
Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω) |
Supported camera types: | 720P25, 720P30, 720P50, 720P60, CVBS |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
Audio Compression: | G.711u |
Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) |
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: | Main stream: 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
Frame Rate: | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
Sub-stream: | 1/16 fps ~ Real time frame rate |
Video Bit Rate: | 32 Kbps-6 Mbps |
Audio Output: | 1-ch RCA(2.0 Vp-p, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream: | Support |
Playback Resolution: | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Synchronous Playback: | 4-ch |
Remote connections: | 128 |
Network protocols: | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
Interface Type: | 1 SATA Interface |
Capacity: | Up to 4TB capacity for each disk |
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface: | 2 USB 2.0 Interfaces |
Serial Interface: | 1; standard RS-485 serial interface, half-duplex |
Power Supply: | 12V DC |
Consumption: | ≤ 15W |
Chassis: | 1U chassis |
Dimension: | 315 × 242 × 45mm |
Weight: | ≤ 1.5Kg |
Warranty | 2 year |
