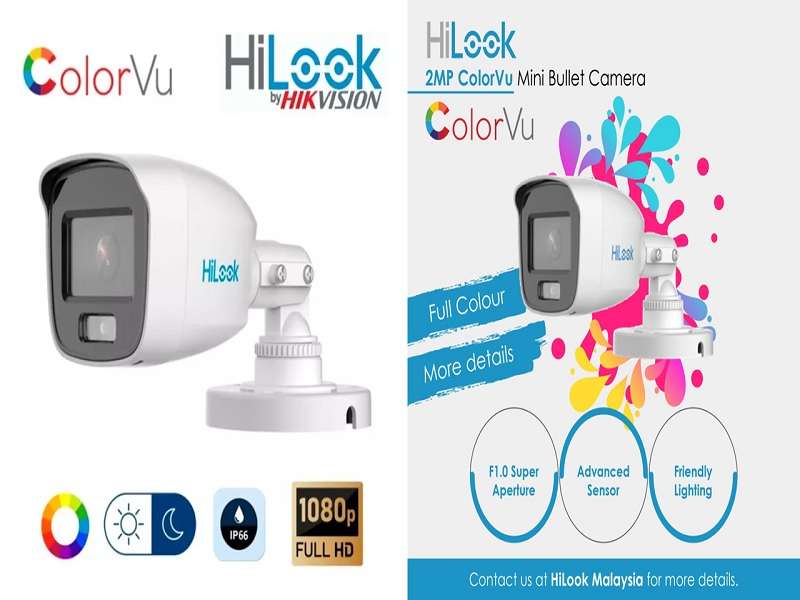

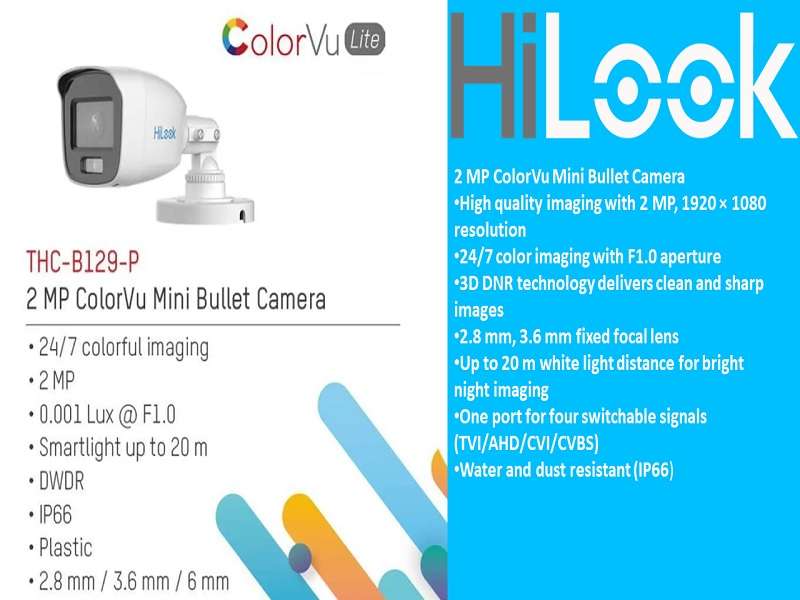

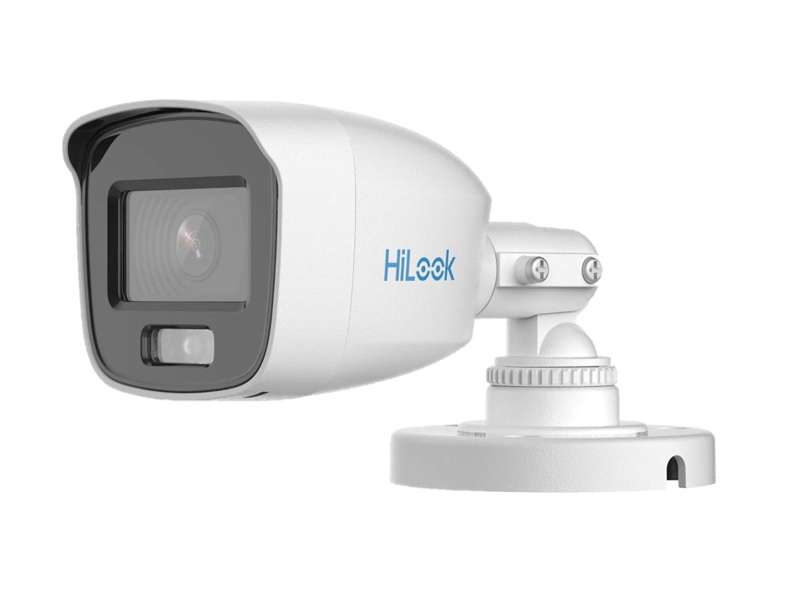

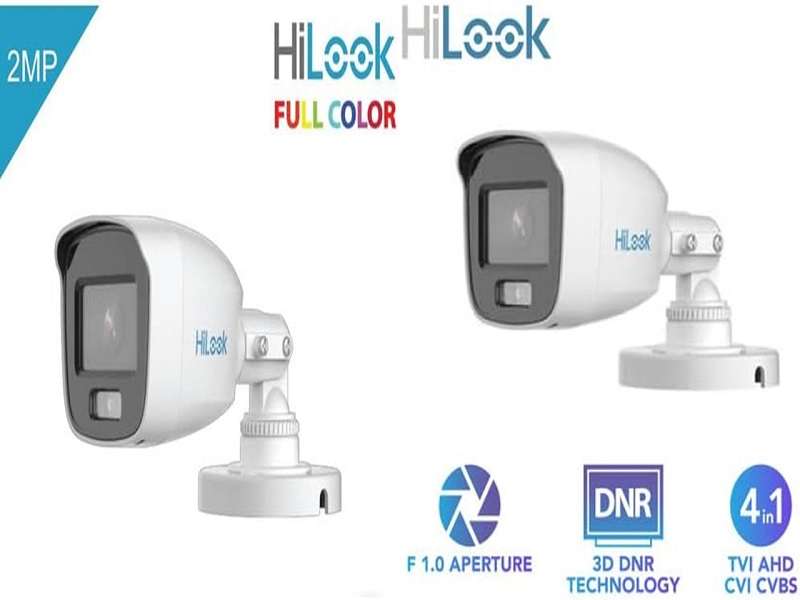

2 MP ColorVu Mini Bullet Camera
High quality imaging with 2 MP, 1920 `d7 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) `d7 1080 (V)
Signal System
PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination
0.001 Lux @ (F1.0, AGC ON)`a3`ac 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens Mount
M12
Light Alarm
Solid Light Alarm (White Light)
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0`b0 to 360`b0, Tilt: 0`b0 to 180`b0, Rotation: 0`b0 to 360`b0
Lens
Lens Type
2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102`b0, vertical FOV: 54`b0, diagonal FOV: 121`b0
3.6 mm, horizontal FOV: 80`b0, vertical FOV: 43`b0, diagonal FOV: 95`b0
Illuminator
Supplement Light Type
White Light
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR;BLC;HLC;Global
White Light
Auto/Off
AGC
Yes
Day/Night Mode
Color
White Balance
Auto/Manual
Noise Reduction
3D DNR/2D DNR
Language
English
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Condition
-40`b0C to 60`b0C (-40`b0F to140`b0F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC`b125%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 2.4 W
Material
Plastic
White Light Range
Up to 20 m
Dimension
162.7 mm `d7 70 mm `d7 70 mm (6.41" `d7 2.75" `d7 2.75")
Weight
Approx. 152.5 g (0.34 lb.)
Approval
Protection
IP66
