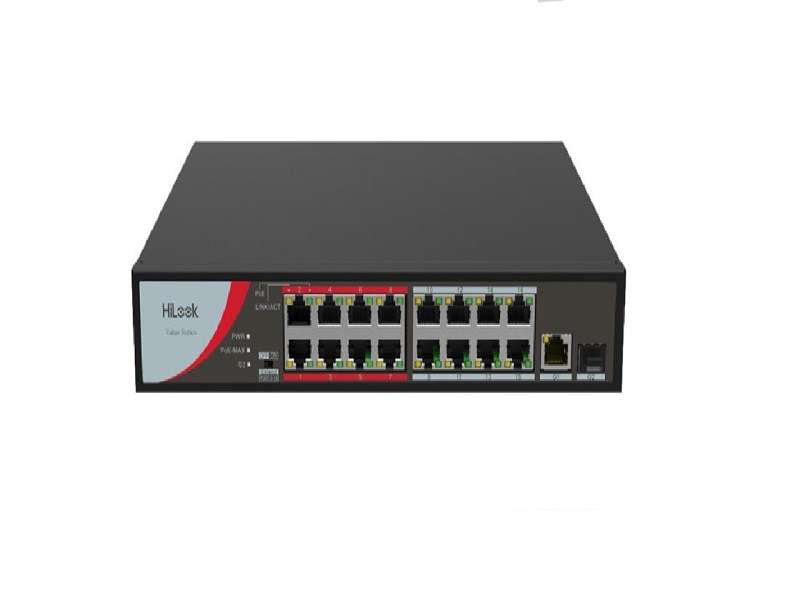

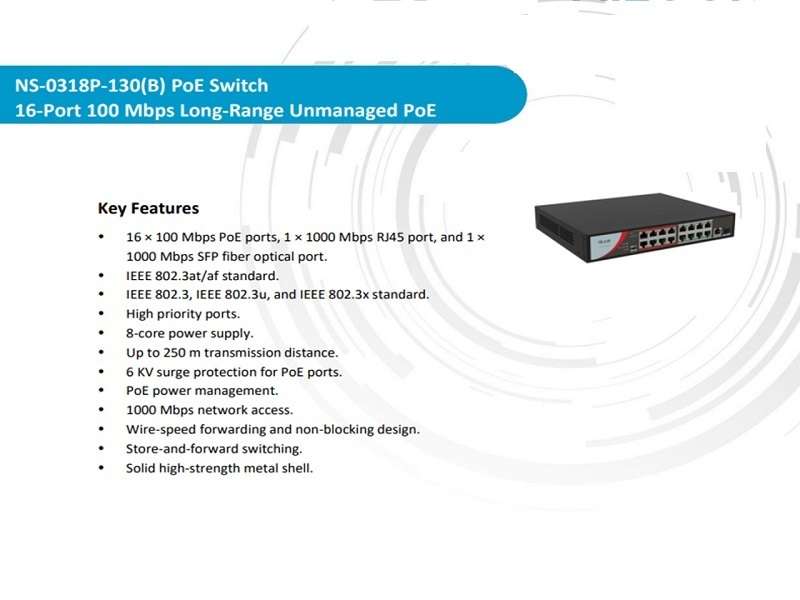

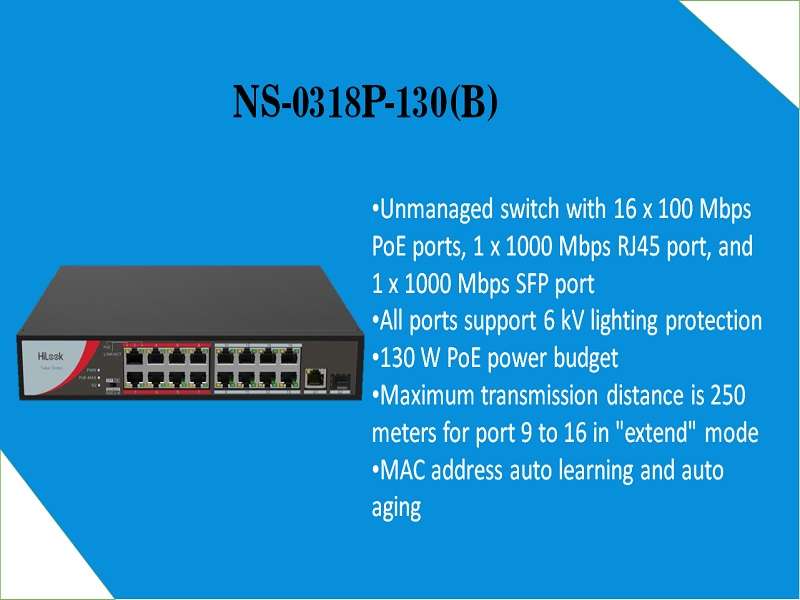

Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
130 W PoE power budget
Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode
MAC address auto learning and auto aging
General
Shell
Metal material
Operating Temperature
-10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
Storage Temperature
-40 `b0C to 85 `b0C (-40 `b0F to 185 `b0F)
Power Supply
100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Storage Humidity
5% to 95% (no condensation)
Net Weight
1.8 kg (4.0 lb)
Gross Weight
2.58 kg (5.69 lb)
Dimension (L `d7 H `d7 D)
266 mm `d7 44.5 mm `d7 220.8 mm (10.5" `d7 1.8" `d7 8.7")
Operating Humidity
5% to 95% (no condensation)
Power Consumption In Idle
20 W
Network Parameters
Port Number
16 `d7 100 Mbps PoE ports, 1 `d7 1000 Mbps RJ45 port, and 1 `d7 1000 Mbps SFP fiber optical port
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode
Store-and-forward switching
Working Mode
Standard mode (default); Extend mode
MAC Address Table
4 K
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.356 Mpps
Internal Cache
2.75 Mbits
High Priority Ports
Ports 1 to 8
Ports For Long-Distance Transmission
Ports 9 to 16

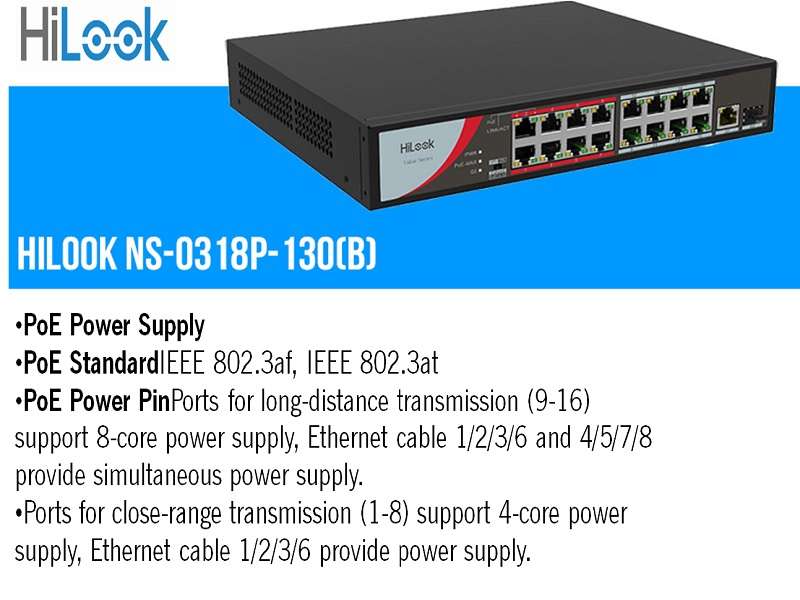

PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE Port
Ports 1 to 16
Max. Port Power
30 W
PoE Power Budget
130 W
Max. Power Consumption
150 W
