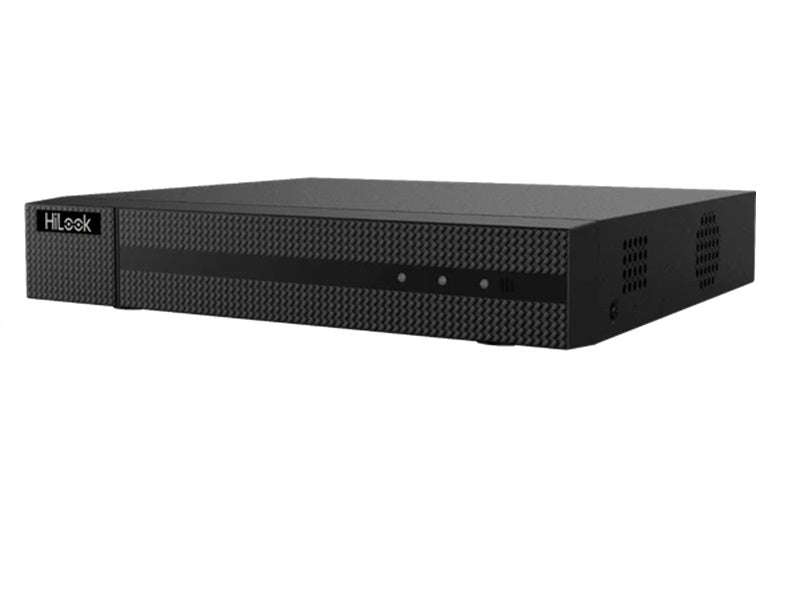

Hilook 16Ch 1080P Lite 1U Dvr 216G

16-ch 1080p Lite 1U H.265 DVR
-Deep learning based human and vehicle targets classification of Motion Detection 2.0
-H.265 Pro+/H.265 Pro/H.265 video compression
-HDTVI/AHD/CVI/CVBS/IP video inputs
-Audio via coaxial cable
-Up to 18-ch IP camera input (up to 5 MP)
-Up to 1080p Lite@15 fps encoding capability
-Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps

Video And Audio
IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
VGA Output
1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 K`d9), and 16-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 K`d9)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 K`d9) (using the first audio input)
Synchronous Playback
16-ch

Network
Total Bandwidth
96 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP`99, HTTPS, ONVIF
Remote Connection
128
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1, SATA interface
Capacity
Up to 10 TB capacity for each disk
USB Interface
2 `d7 USB 2.0

General
Power Supply
12 VDC, 1.6 A
