FEATURES
4-in-1 CCTV is a new hybrid format, allowing HD-TVI, AHD, HD-CVI and CVBS cameras to be connected to the DVR. This means you no longer have to worry about format compatibility when setting up or updating a CCTV security system - as long as it has a BNC connection and uses coaxial cable then it should work. Hikvision 4-In-1 DVR supports Multiple HD Video formats over coaxial cable (RG59) HD-TVI: HikvisionTurbo HD AHD: Analogue HD HD-CVI: Composite Video Interface CVBS: Analogue TV Lines format using BNC This HilLook DVR has capacity for 1 Hard Drive up to 6TB for storage and uses H.264 + video compression which improves encoding efficiency and reduces data storage costs.
Fan Dimension
Started Voltage
Rated Current
Rated Voltage
Power Input
Fan Speed
Max. Air Pressure
Max Air Flow
Connector
Video Input and Transmission
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 32-ch 8 MP IP cameras input
- 8 MP/5 MP/4 MP HDTVI video input and live view
- Defogging function enabled for the supported analog cameras
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
- H.265 Pro /H.265 Pro/H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Connectable to H.265 /H.265/H.264 /H.264 IP cameras
- H.265 can be enabled to improve encoding efficiency and reduce data storage costs
- Full channel recording at up to 8 MP resolution
Video Output
- Simultaneous HDMI/VGA output
- HDMI output at up to 4K (3840 ? 2160) resolution
Storage and Playback
- Two SATA interfaces (up to 10 TB capacity per HDD)
- 16-ch synchronous playback
- Smart search for efficient playback
- Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
- Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
- VCA information overlay in live view and smart playback
- VQD (Video Quality Diagnostics)
Network & Ethernet Access
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Output bandwidth limit configurable
PRODUCT SPECIFICATIONS

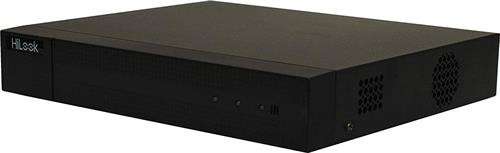

| Brand | HiLook |
| Item model number | DVR-216G-K1 |
| Product Type | DVR |
| Recording | • Encoding Resolution: 1080p lite/720p/VGA/WD1/4CIF/CIF
• Video Bit Rate: 32 Kbps to 4 Mbps
• Video Compression: H.265 Pro /H.265 Pro/H.265/H.264 /H.264
• Dual Stream:Support
• Stream Type: Video, Video & Audio
• Audio Compressi:on:G.711u
• Audio Bit Rate:64 Kbps |
| Video And Audio | • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 K)
• Audio Output: 1-ch, RCA (Linear, 1 K)
• Synchronous Playback: 16-ch
• IP Video Input:2-ch (up to 18-ch);Up to 5MP resolution;Support H.265 /H.265/H.264 /H.264 IP cameras
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: PAL/NTSC
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K) (using the first audio input)
• Analog Video Input :16-ch;BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• AHD Input :1080p25, 1080p30, 720p25, 720p30
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ),
• resolution: PAL: 704 576, NTSC: 704 480
• HDMI/VGA Output:1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz |
| Auxiliary Interface | • Capacity:Up to 10 TB capacity for each disk
• Serial Interface:N/A
• USB Interface:2 USB 2.0
• Alarm In/Out:N/A
• SATA :1 SATA interface |
| Network | • Network Protocols:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections:128
• Network Interface:1, RJ45 10M/100M self-adaptive Ethernet interface |
