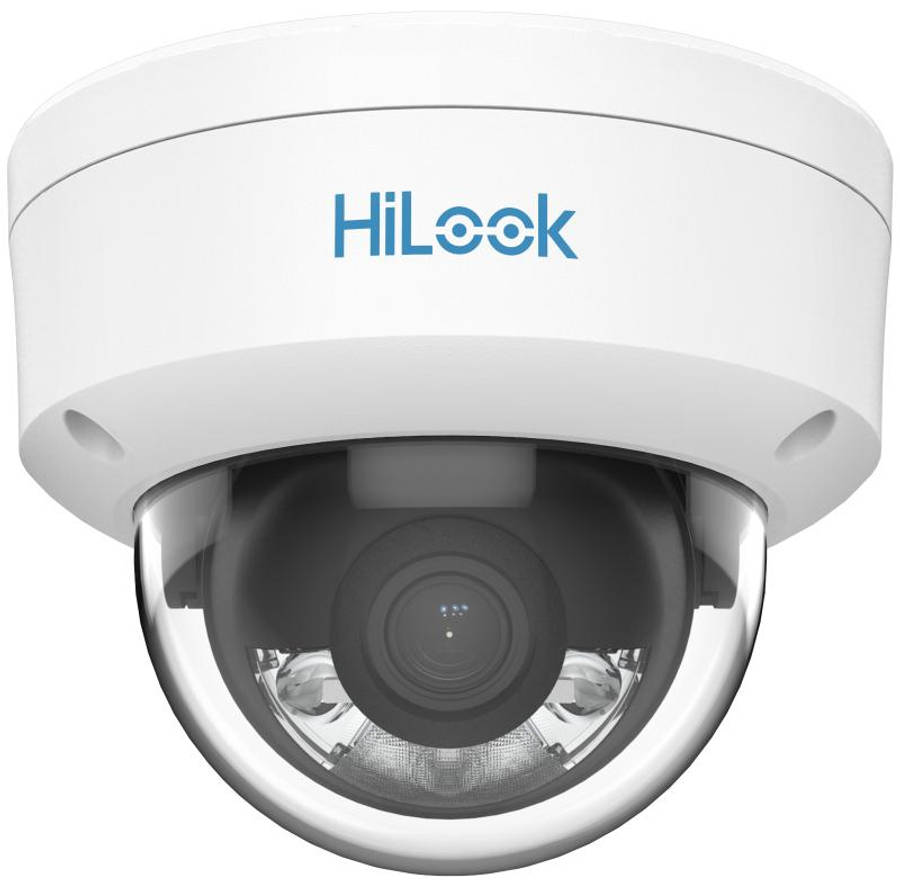

HiLook 2 MP ColorVu MD 2.0 Fixed Dome Network Camera - High quality imaging with 2 MP resolution, 24/7 colorful imaging, Support Human and Vehicle Detection, Water and dust resistant (IP67) and vandal resistant (IK08), Efficient H.265+ compression technology, Retail Box, 6 Months Warranty
Product Overview
The HiLook IPC-D129HA is a 2 MP ColorVu MD 2.0 fixed dome network camera featuring a 1/2.8" Progressive Scan CMOS image sensor with a maximum resolution of 1920 x 1080. It offers 24/7 full-color imaging with low light sensitivity down to 0.001 Lux @ (F1.0, AGC ON) and includes a smart white light supplement effective up to 30 meters. The camera supports flexible angle adjustments (pan 0 deg -355 deg , tilt 0 deg -75 deg , rotate 0 deg -355 deg ), H.265+/H.264+ video compression, and multiple network protocols for seamless integration in surveillance systems.
Features
-High quality imaging with 2 MP resolution
-24/7 colorful imaging
-Support Human and Vehicle Detection
-Water and dust resistant (IP67) and vandal resistant (IK08)
-Efficient H.265+ compression technology
Specifications
-Product Code: IPC-D129HA-2.8MM
-Description: HiLook 2 MP ColorVu MD 2.0 Fixed Dome Network Camera
-Image Sensor: 1/2.8" Progressive Scan CMOS
-Max. Resolution: 1920 x 1080
-Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
-Shutter Time: 1/3 s to 1/100,000 s
-Day & Night: 24/7 color imaging
Angle Adjustment
-Pan: 0 deg to 355 deg
-tilt: 0 deg to 75 deg
-rotate: 0 deg to 355 deg
-Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
-2.8 mm, horizontal FOV: 106 deg , vertical FOV: 57 deg , diagonal FOV: 126 deg
-4 mm, horizontal FOV: 83 deg , vertical FOV: 44 deg , diagonal FOV: 99 deg
-Lens Mount: M12
-Iris Type:Fixed
-Aperture: F1.0
Depth of Field
-2.8 mm: 1.5 m to
-4 mm: 2.1 m to
DORI
-2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
-4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
-Supplement Light Type: White Light
-Supplement Light Range: Up to 30 m
-Smart Supplement Light: Yes
Main Stream
-50 Hz: 25 fps (1920 x 1080, 1280 x 720)
-60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream
-50 Hz: 25 fps (640 x 480, 640 x 360)
-60 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression
-Main stream: H.265+/H.265/H.264+/H.264,
-Sub-stream: H.265/H.264/MJPEG
-Video Bit Rate: 32 Kbps to 8 Mbps
-H.264 Type: Baseline Profile,Main Profile,High Profile
-H.265 Type: Main Profile
-Bit Rate Control: CBR,VBR
-Region of Interest (ROI): 1 fixed region(s) for main stream
-Simultaneous Live View: Up to 6 channels
-API: Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
-Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
-Up to 32 users
-3 user levels: administrator, operator, and user
-Client: iVMS-4200,HiLookVision
Web Browser
-Plug-in required live view: IE 10, IE 11,
-Local service: Chrome 57.0+, Firefox 52.0+
