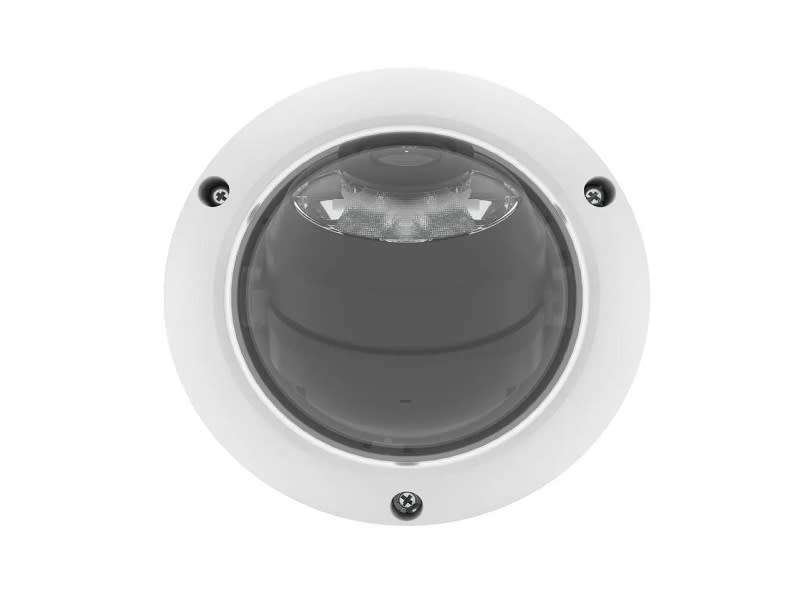

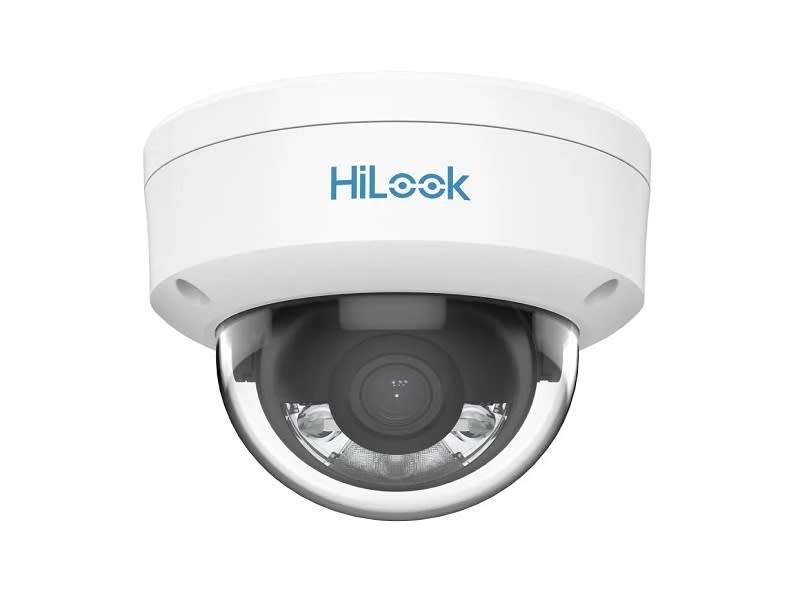

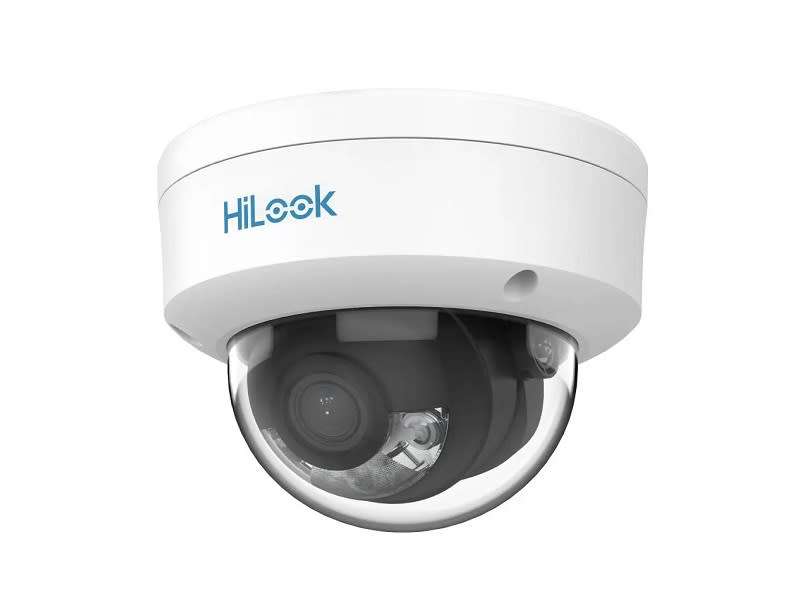

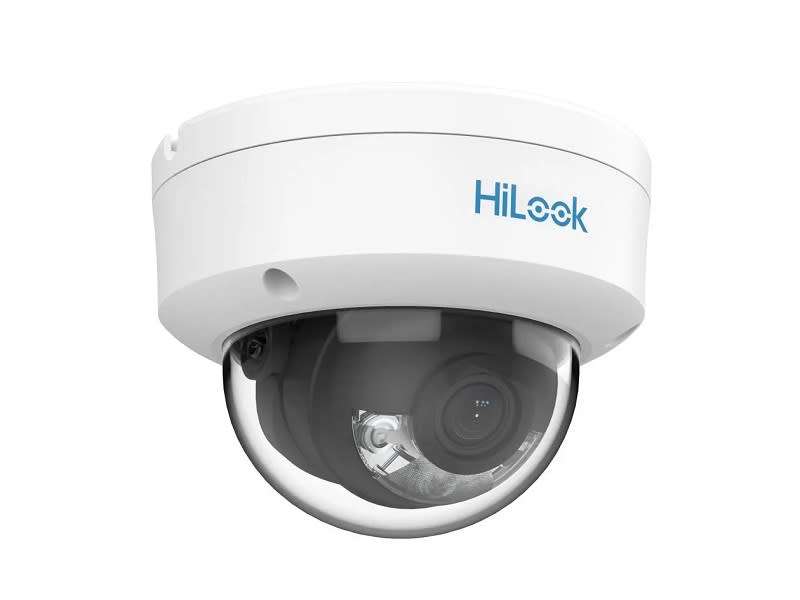

2 MP ColorVu MD 2.0 Fixed Dome Network Camera
High quality imaging with 2 MP resolution
24/7 colorful imaging
Support Human and Vehicle Detection
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 `d7 1080
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 color imaging
Angle Adjustment
Pan: 0`b0 to 355`b0,tilt: 0`b0 to 75`b0,rotate: 0`b0 to 355`b0
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 106`b0, vertical FOV: 57`b0, diagonal FOV: 126`b0
4 mm, horizontal FOV: 83`b0, vertical FOV: 44`b0, diagonal FOV: 99`b0
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm: 1.5 m to
4 mm: 2.1 m to
DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz:
25 fps (1920 `d7 1080, 1280 `d7 720)
60 Hz:
30 fps (1920 `d7 1080, 1280 `d7 720)
Sub-Stream
50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region Of Interest (ROI)
1 fixed region(s) for main stream
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface`a3`acsecurity audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200,HiLookVision
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
Digital WDR
SNR
52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP,send email,notify surveillance center,trigger capture
General
Power
12 VDC `b1 25%, 0.4 A, max. 5 W,`d85.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.15 A to 0.2 A, max. 6.5 W
Material
Base: aluminum alloy, cover: plastic
Dimension
`d8121.5 mm `d7 97.6 mm (`d84.8 `d7 3.8\")"
Package Dimension
150 mm `d7 150 mm `d7 141 mm (5.9" `d7 5.9" `d7 5.9")
Weight
Approx. 500 g (1.1 lb.)
With Package Weight
Approx. 700 g (1.5 lb.)
Storage Conditions
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013;IK08: IEC 62262:2002
