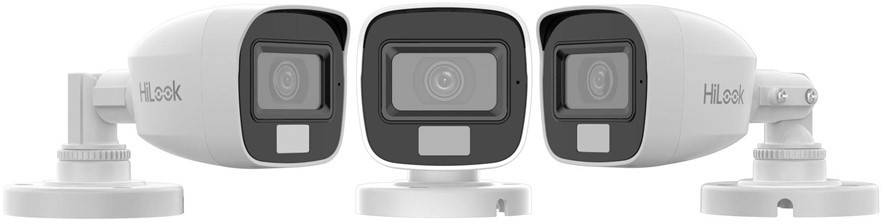

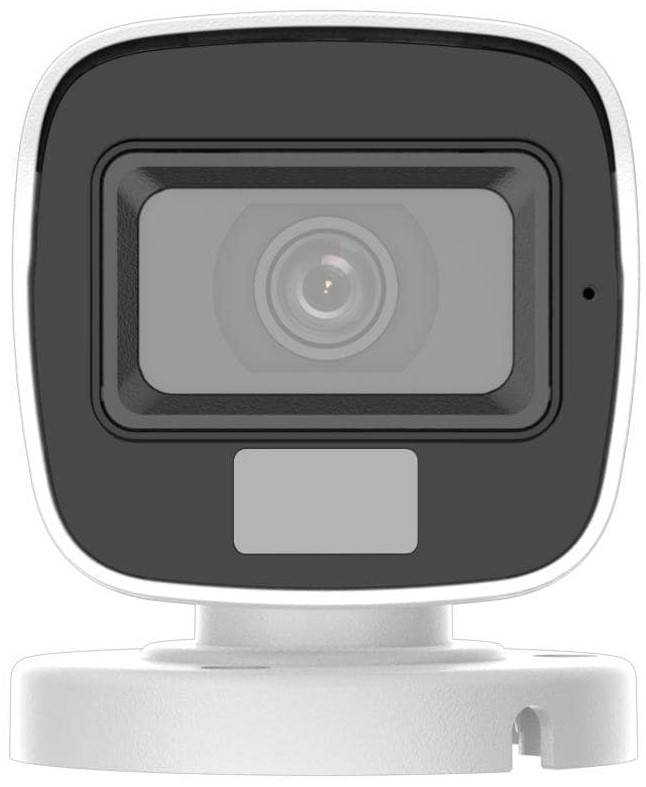

Hilook 2MP Dual Light Audio Fixed Mini Bullet Camera - High quality imaging with 2 MP, 1920 × 1080 resolution, 2.8 mm, 3.6 mm fixed focal lens, Up to 20 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for four switchable signals (TVI/AHD/CVI/CVBS), Water and dust resistant (IP66), High quality audio with audio over coaxial cable, built-in microphone.
Product Overview
The Hilook 2MP Dual Light Audio Fixed Mini Bullet Camera offers high-quality 1920 × 1080 resolution imaging with selectable 2.8 mm or 3.6 mm fixed focal lenses, ensuring clear daytime and night visuals. It features up to 20 meters of IR and white light for bright night imaging, combined with a built-in microphone and audio over coaxial cable for enhanced audio surveillance. Designed for durability, it is water and dust resistant (IP66) and supports four switchable video signals (TVI/AHD/CVI/CVBS) for versatile installation options.
Specifications
Product Code: THC-B127-LPS 2.8MM
Description: 2MP Dual Light Audio Fixed Mini Bullet Camera
Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0 to 360°, tilt: 0 to 180°, rotate: 0 to 360°
Signal System: PAL/NTSC
Lens
Lens Type: Fixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 116°, 3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
Lens Mount: M12
Microphone
Pickup Distance: In a radius of up to 5 m
Amount: 1
Illuminator
Supplement Light Range: IR : up to 20 m, White Light : up to 20 m
Supplement Light Type: Smart, IR, White Light
Image Settings: Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @30 fps, 1080P @25 fps
AHD: 1080P @30 fps, 1080P@25 fps
CVI: 1080P @30 fps, 1080P @25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR/BLC/HLC/Global
White Balance: Auto/Manual
AGC: Yes
Day/Night Mode: Auto/Color
Interface
Video Output: Switchable TVI/AHD/CVI/CVBS
General
Material: Plastic
Dimension: Ø70 mm × 153.4 mm (Ø2.76" × 6.04")
Weight: Approx. 164 g (0.36 lb)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication: HIKVISION-C
Language: English
Power Supply: 12 VDC ± 25%
Consumption: Max. 3.2 W
Approval
Protection: IP66
