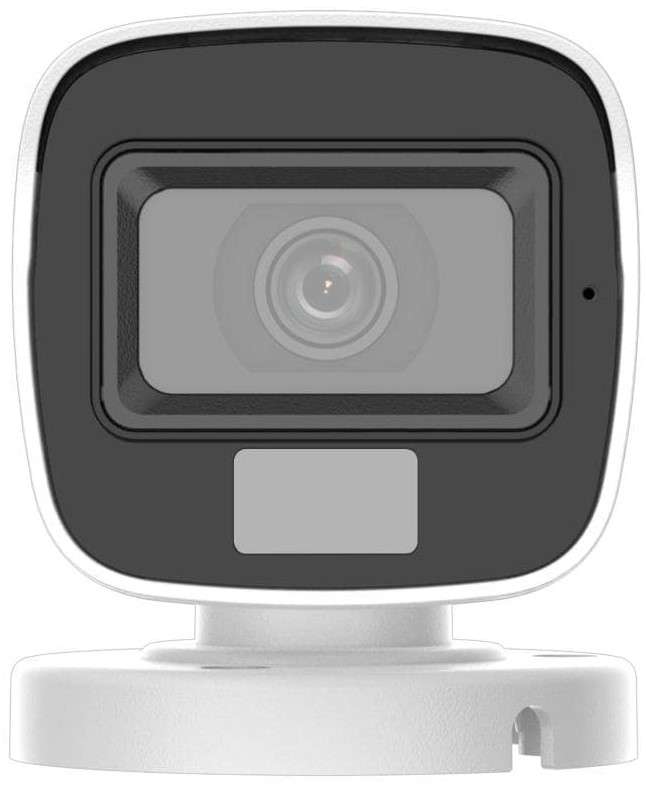

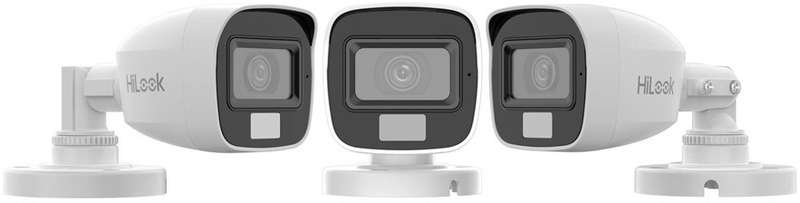

Hilook 2MP Dual Light Audio Fixed Mini Bullet Camera - High quality imaging with 2 MP, 1920 x 1080 resolution, 2.8 mm, 3.6 mm fixed focal lens, Up to 20 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for four switchable signals (TVI/AHD/CVI/CVBS), Water and dust resistant (IP66), High quality audio with audio over coaxial cable, built-in microphone.
Product Overview
The Hilook 2MP Dual Light Audio Fixed Mini Bullet Camera offers high-quality 1920 x 1080 resolution imaging with selectable 2.8 mm or 3.6 mm fixed focal lenses, ensuring clear daytime and night visuals. It features up to 20 meters of IR and white light for bright night imaging, combined with a built-in microphone and audio over coaxial cable for enhanced audio surveillance. Designed for durability, it is water and dust resistant (IP66) and supports four switchable video signals (TVI/AHD/CVI/CVBS) for versatile installation options.
Specifications
-Product Code: THC-B127-LPS 2.8MM
-Description: 2MP Dual Light Audio Fixed Mini Bullet Camera
Camera
-Image Sensor: 2 MP CMOS
-Max. Resolution: 1920 (H) x 1080 (V)
-Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
-Day & Night: ICR
-Angle Adjustment: Pan: 0 to 360 deg , tilt: 0 to 180 deg , rotate: 0 to 360 deg
-Signal System: PAL/NTSC
Lens
-Lens Type: Fixed focal lens, 2.8 mm and 3.6 mm optional
-Focal Length & FOV: 2.8 mm, horizontal FOV: 100 deg , vertical FOV: 55 deg , diagonal FOV: 116 deg , 3.6 mm, horizontal FOV: 80 deg , vertical FOV: 43 deg , diagonal FOV: 95 deg
-Lens Mount: M12
Microphone
-Pickup Distance: In a radius of up to 5 m
-Amount: 1
Illuminator
-Supplement Light Range: IR : up to 20 m, White Light : up to 20 m
-Supplement Light Type: Smart, IR, White Light
-Image Settings: Brightness, Sharpness, Smart IR
Frame Rate
-TVI: 1080P @30 fps, 1080P @25 fps
-AHD: 1080P @30 fps, 1080P@25 fps
-CVI: 1080P @30 fps, 1080P @25 fps
-CVBS: PAL/NTSC
-Wide Dynamic Range (WDR): Digital WDR
-Image Enhancement: DWDR/BLC/HLC/Global
-White Balance: Auto/Manual
-AGC: Yes
-Day/Night Mode: Auto/Color
Interface
-Video Output: Switchable TVI/AHD/CVI/CVBS
General
-Material: Plastic
-Dimension: Ø70 mm x 153.4 mm (Ø2.76" x 6.04")
-Weight: Approx. 164 g (0.36 lb)
-Operating Condition: -40 deg C to 60 deg C (-40 deg F to 140 deg F). Humidity: 90% or less (non-condensation)
-Communication: HIKVISION-C
-Language: English
-Power Supply: 12 VDC plus or minus 25%
-Consumption: Max. 3.2 W
Approval
-Protection: IP66
