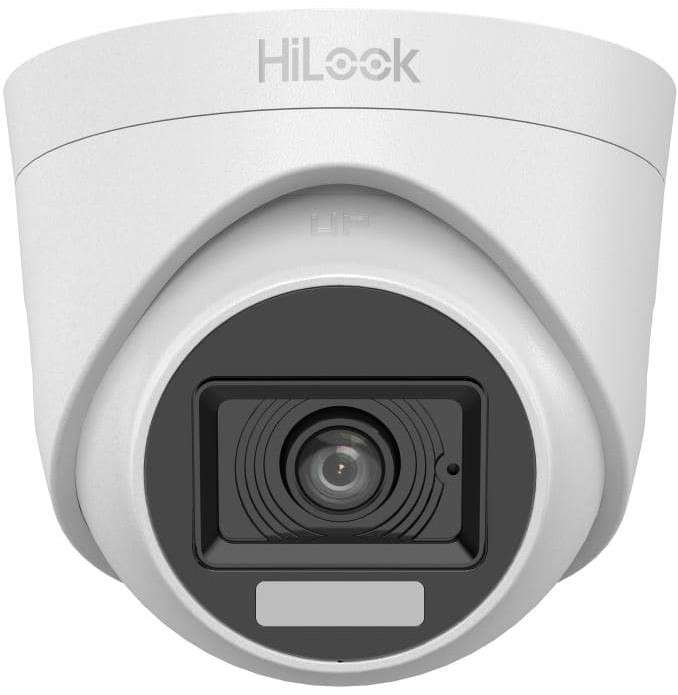

Hilook 2MP Dual Light Indoor Fixed Turret Camera - High quality imaging with 2 MP, 1920 x 1080 resolution, Smart-Hybrid light, optimize your security with flexible lighting options, 2.8 mm, 3.6 mm fixed focal lens, Up to 20 m IR distance for bright night imaging, Up to 20 m white light distance for bright night imaging, One port for 4 switchable signals (TVI/AHD/CVI/CVBS).
Product Overview
The Hilook 2MP Dual Light Indoor Fixed Turret Camera delivers high-quality imaging with a 2 MP sensor and 1920 x 1080 resolution, ensuring clear and detailed video. It features Smart-Hybrid lighting with up to 20 meters of IR and white light for bright night imaging, plus a choice of 2.8 mm or 3.6 mm fixed focal lenses for flexible coverage. The camera supports one port with 4 switchable signals (TVI/AHD/CVI/CVBS), making it versatile for various security setups.
Specifications
-Product Code: THC-T127-LPC 2.8MM
-Description: 2MP Dual Light Indoor Fixed Turret Camera
Camera
-Image Sensor: 2 MP CMOS
-Max. Resolution: 1920 (H) x 1080 (V)
-Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
-Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
-Day & Night: ICR
-Angle Adjustment: Pan: 0 to 360 deg , Tilt: 0 to 75 deg , Rotate: 0 to 360 deg
-Signal System: PAL/NTSC
Lens
-Lens Type: 2.8 mm, 3.6 mm fixed focal lens
-Focal Length & FOV: 2.8 mm, horizontal FOV: 97 deg , vertical FOV: 54 deg , diagonal FOV: 113 deg , 3.6 mm, horizontal FOV: 77 deg , vertical FOV: 43 deg , diagonal FOV: 90 deg
-Lens Mount: M12
Illuminator
-Supplement Light Range: IR : Up to 20 m
-White Light : Up to 20 m
-Supplement Light Type: Smart, IR, White Light
-Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
-Image Settings: Brightness, Sharpness, Smart IR
Frame Rate
-TVI: 1080p @ 30 fps, 1080p @ 25 fps
-AHD: 1080p @ 30 fps, 1080p @ 25 fps
-CVI: 1080p @ 30 fps, 1080p @ 25 fps
-CVBS: PAL/NTSC
-Day/Night Mode: Auto/Color
-Wide Dynamic Range (WDR): Digital WDR
-Image Enhancement: DWDR/BLC/HLC/Global
-White Balance: Auto/Manual
-AGC: Yes
Interface
-Video Output: Switchable TVI/AHD/CVI/CVBS
General
-Material: Plastic
-Dimension: Ø84.6 mm x 78.9 mm (3.33'' x 3.11'')
-Weight: Max. 135 g (0.3 lb.)
-Operating Condition: -40 deg C to 60 deg C (-40 deg F to 140 deg F). Humidity: 90% or less (non-condensation)
-Communication: HIKVISION-C
-Language: English
-Power Supply: 12 VDC plus or minus 25%, Max. 3.2 W
