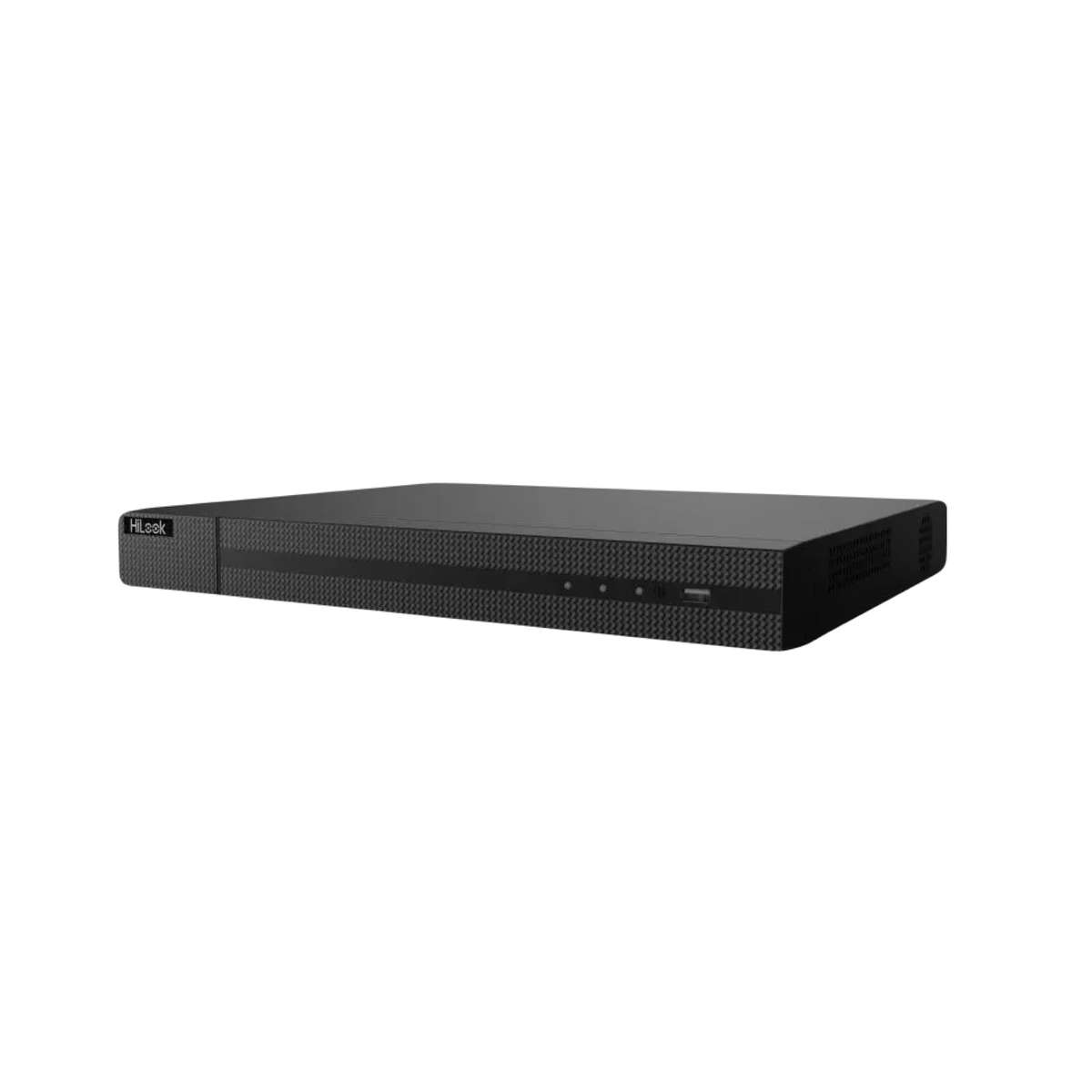

HiLook DVR-232Q-M2 32-Channel Turbo HD DVR

The HiLook DVR-232Q-M2 is a professional 32-channel Turbo HD digital video recorder designed for larger CCTV installations that require reliable recording, flexible camera compatibility, and smart motion detection. It is ideal for commercial buildings, warehouses, schools, offices, retail stores, factories, residential complexes, and large security projects.

With 32 BNC analogue camera inputs, the DVR supports multiple video formats including HDTVI, AHD, CVI, CVBS, and IP, making it suitable for both new installations and upgrades to existing analogue CCTV systems. It can also support IP camera expansion, with up to 40 network cameras in enhanced IP mode, depending on configuration.

The DVR features deep learning-based Motion Detection 2.0 across all analogue channels. This allows the system to classify human and vehicle movement, helping reduce false alarms caused by irrelevant motion such as leaves, lights, shadows, or environmental changes. Smart search by object or event type also makes playback faster and more efficient.

With H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression support, the DVR helps reduce storage and bandwidth usage while maintaining good video quality. It supports recording up to 3K Lite, 5MP Lite, 4MP Lite, 1080p, and 720p, depending on camera type and recording settings.

Key Features

• 32-channel Turbo HD DVR

• 32 × BNC analogue camera inputs

• Supports HDTVI / AHD / CVI / CVBS / IP video input

• Up to 40 IP camera inputs in enhanced IP mode

• Supports IP cameras up to 6MP resolution

• Deep learning-based Motion Detection 2.0

• Human and vehicle classification

• Smart search by object or event type

• H.265 Pro+ compression technology

• Recording support up to 3K Lite / 5MP Lite / 4MP Lite / 1080p

• Audio over coaxial cable support

• 1-channel RCA audio input

• 32-channel audio via coaxial cable

• 1-channel RCA audio output

• Two-way audio support using the first audio input

• 4K HDMI output

• VGA output

• HDMI and VGA simultaneous output

• 16-channel synchronous playback

• 2 SATA interfaces

• Supports up to 10TB per HDD

• Gigabit Ethernet network interface

• Front USB 2.0 and rear USB 3.0

• RS-485 interface

• Compact 1U design

Ideal For

• Large CCTV systems

• Commercial buildings

• Warehouses and factories

• Schools and campuses

• Retail stores

• Residential complexes

• Office parks

• Multi-camera analogue CCTV upgrades

• Hybrid CCTV systems using analogue and IP cameras

• Sites requiring human and vehicle motion filtering

Technical Specifications

• Brand: HiLook

• Model: DVR-232Q-M2

• Product Type: 32-Channel Turbo HD DVR

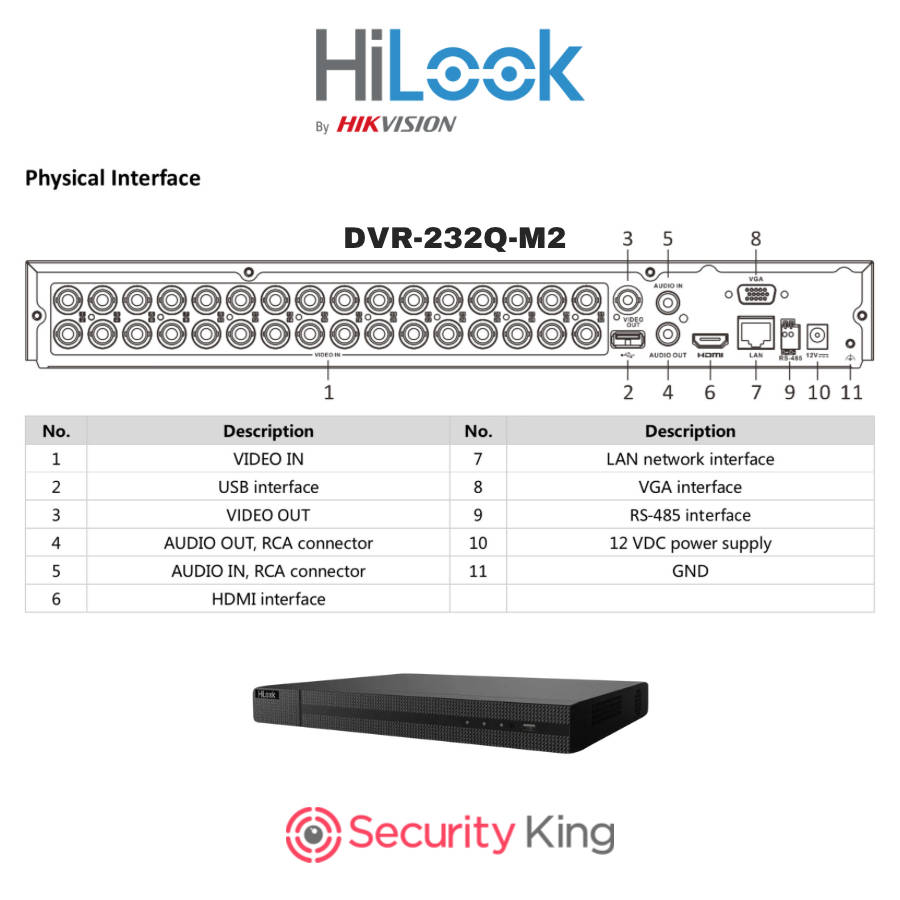

• Analogue Video Input: 32 × BNC

• IP Video Input: 2-channel, up to 34-channel; enhanced IP mode up to 40-channel

• IP Camera Resolution: Up to 6MP

• Supported Video Formats: HDTVI / AHD / CVI / CVBS / IP

• Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

• Encoding Resolution: 3K Lite / 5MP Lite / 4MP Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF

• HDMI Output: Up to 4K, 3840 × 2160 @ 30Hz

• VGA Output: Up to 1920 × 1080 @ 60Hz

• Audio Input: 1 × RCA, plus 32-channel audio via coaxial cable

• Audio Output: 1 × RCA

• Two-Way Audio: 1 × RCA using first audio input

• Synchronous Playback: 16-channel

• Network Interface: 1 × RJ45 10/100/1000Mbps Ethernet

• Total Bandwidth: 128Mbps

• Remote Connections: 128

• Storage: 2 × SATA interfaces

• HDD Capacity: Up to 10TB per HDD

• USB Interface: 1 × USB 2.0 front, 1 × USB 3.0 rear

• Serial Interface: RS-485 half-duplex

• Power Supply: 12V DC, 3.3A

• Power Consumption: 40W

• Working Temperature: -10°C to 55°C

• Dimensions: 384 × 315 × 52mm

• Weight: 2kg

Why Choose the HiLook DVR-232Q-M2?

The HiLook DVR-232Q-M2 is a strong choice for installers and users who need a high-capacity 32-channel CCTV recorder with hybrid camera support, smart human and vehicle detection, efficient H.265 Pro+ compression, dual HDD storage, and 4K display output. It is well suited for larger surveillance systems where reliability, scalability, and smart playback features are important.

Important Note

This DVR does not include built-in PoE ports. IP cameras must be powered using a separate PoE switch, PoE injector, or suitable power supply. Hard drives are usually sold separately unless included by the supplier.

Installation Note

Professional installation is recommended to ensure correct camera compatibility, HDD installation, recording setup, video format configuration, network setup, remote viewing, audio configuration, and smart motion detection programming.
