HiLook 4-Ch ColorVu CCTV Kit with Zatech Junction Boxes & ready-made Cables

HiLook 4-Channel ColorVu CCTV Kit provides a powerful, easy-to-install security solution ideal for residential and small commercial setups. This comprehensive package features four 2 MP ColorVu Mini Bullet Cameras that capture high-definition 1920 × 1080 video with vibrant, full-color imaging day and night, thanks to the F1.0 large aperture and white-light LEDs that reach up to 20 meters. Each camera is equipped with advanced 3D DNR for crystal-clear images and supports multiple signal formats for flexible compatibility. The system is powered by a compact 4-channel H.265 DVR efficient video compression, and support for up to five IP cameras. The kit also includes four 20-meter ready-made Zatech cables, four Zatech junction boxes, a Zatech 4-channel power supply, and a DCW4P splitter, making it a true plug-and-play solution for seamless and reliable surveillance.

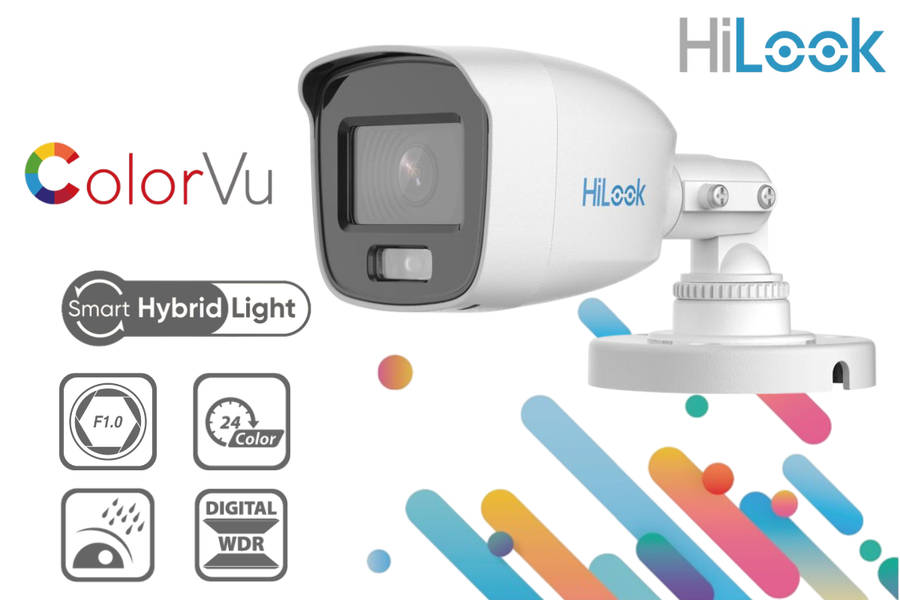

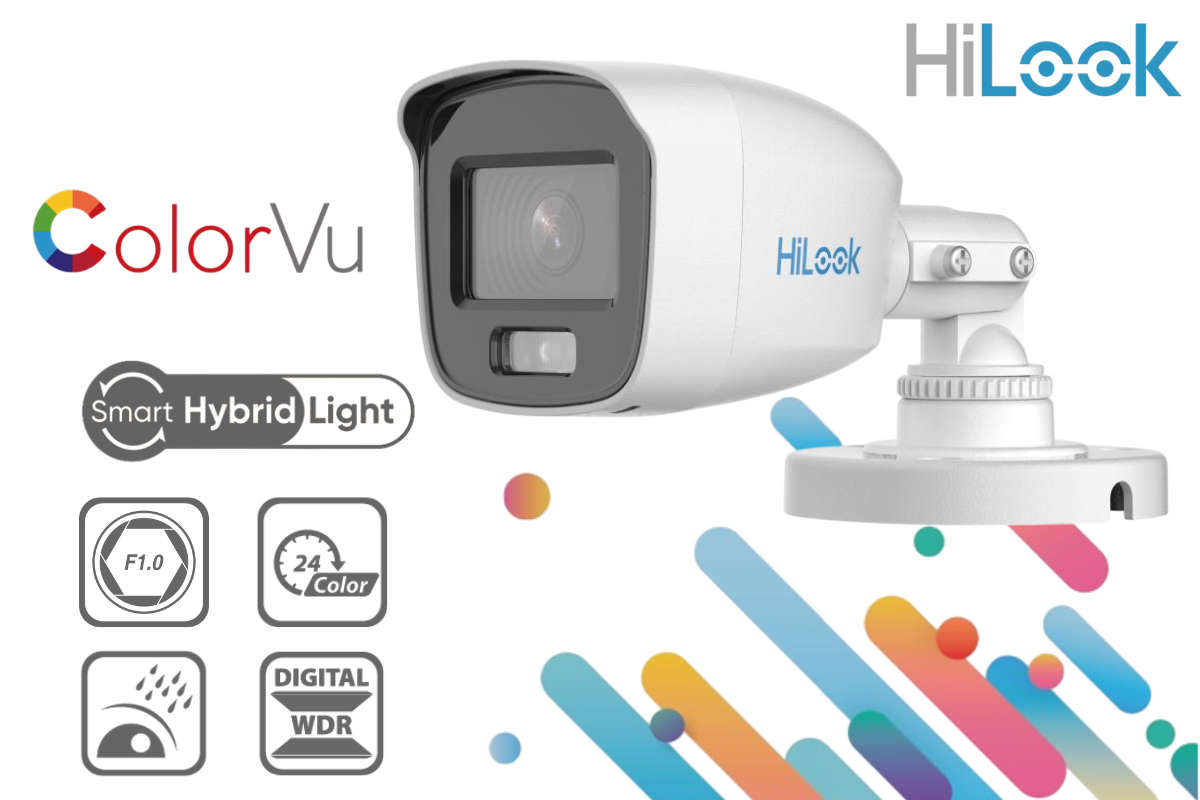

CAMERA

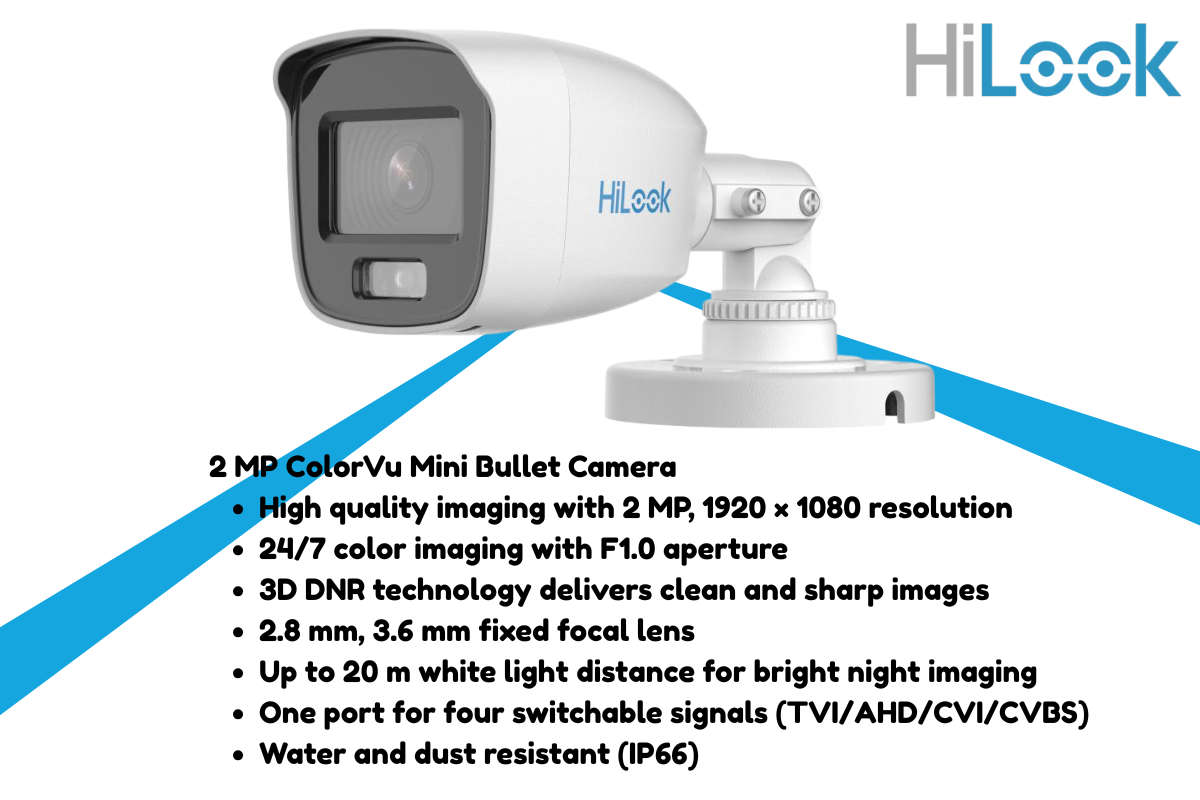

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Signal SystemPAL/NTSC
• Frame RateTVI: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsAHD:1080p@25fps/30fpsCVBS: PAL/NTSC
• Min. Illumination0.001 Lux @ (F1.0, AGC ON) 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360
• Lens
• Lens Type2.8 mm/3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 102 , vertical FOV: 54 , diagonal FOV: 121 3.6 mm, horizontal FOV: 80 , vertical FOV: 43 , diagonal FOV: 95
• Illuminator
• Supplement Light TypeWhite Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC;HLC;Global
• White LightAuto/Off
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• Noise Reduction3D DNR/2D DNR
• LanguageEnglish
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

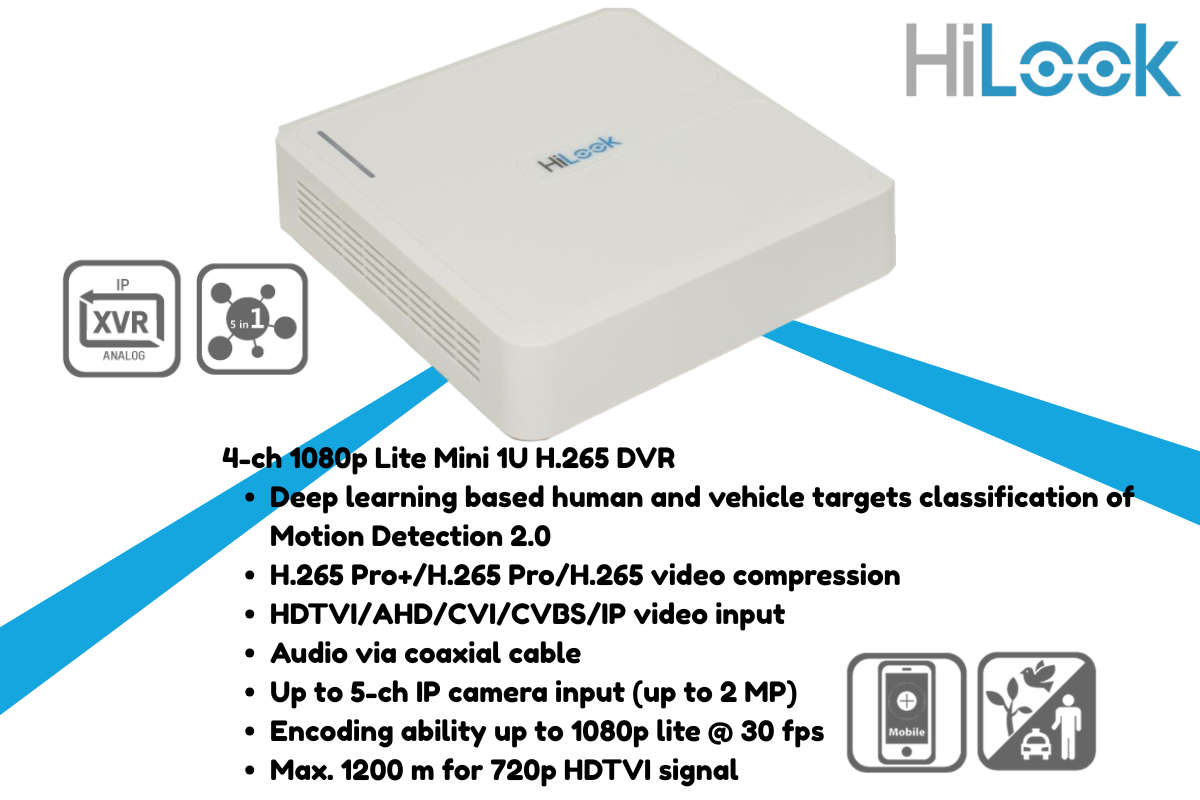

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
• Video and Audio
• IP Video Input1-ch (up to 5-ch)Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/Out N/A

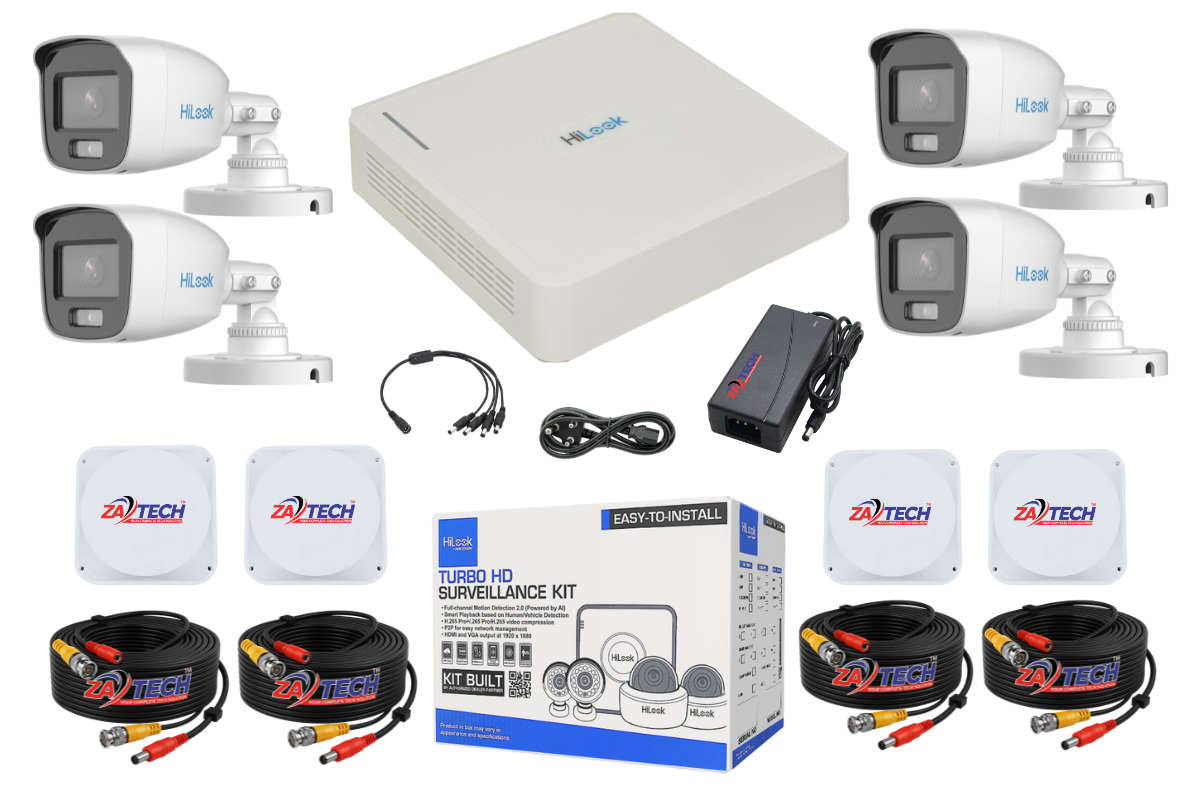

What's in the box
4 x 2 MP ColorVu Mini Bullet Camera
1 x 4-ch 1080p Lite Mini 1U H.265 DVR

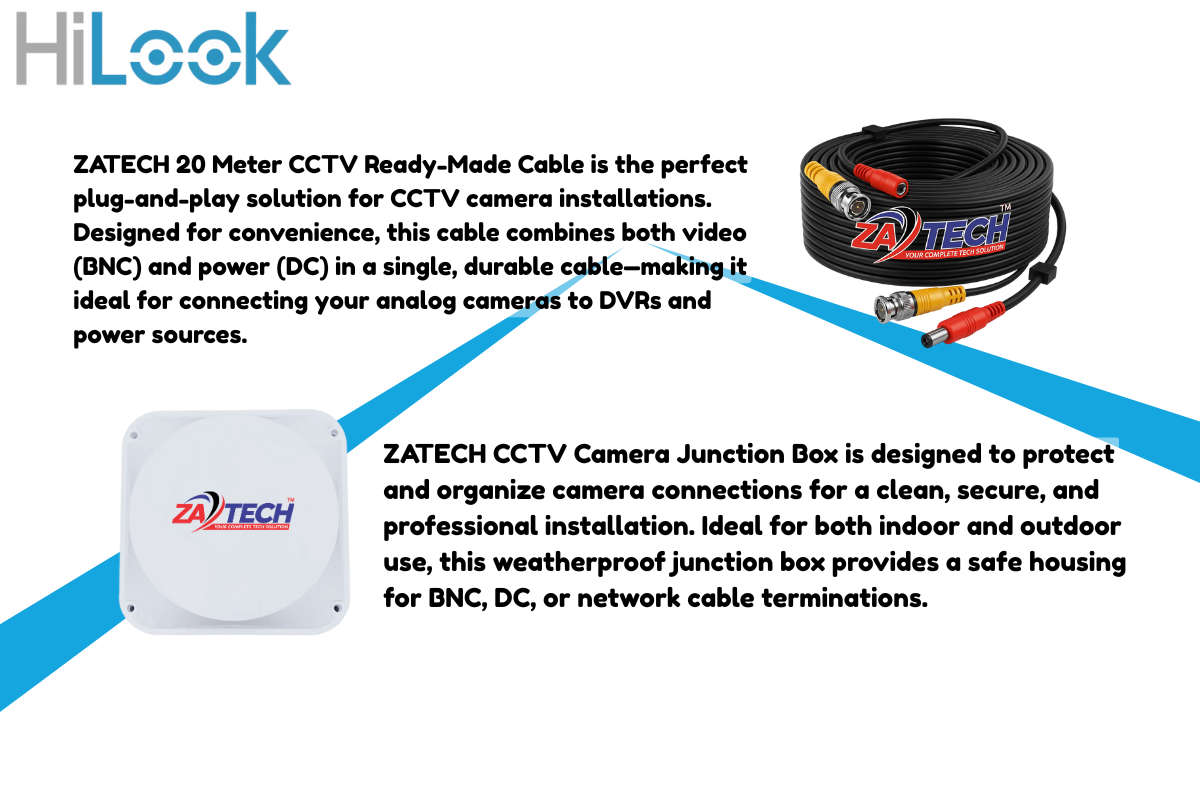

4 x Zatech ready-made 20m cables
4 x Zatech junction boxes
1 x Power supply
1 x dcw4p
