Recording
Video Compression
H.264+/H.264
Encoding Resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz
VGA Output
1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 K )
4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 K )
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 K ) (using the audio input)
Synchronous Playback
4-ch
Network
Remote Connection
32
Network Protocol
TCP/IP, PPPoE, DHCP, Holovision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP , HTTPS, ONVIF
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1, SATA interface
Capacity
Up to 6 TB capacity for each disk
USB Interface
Rear panel: 2 USB 2.0
Alarm In/Out
N/A
General

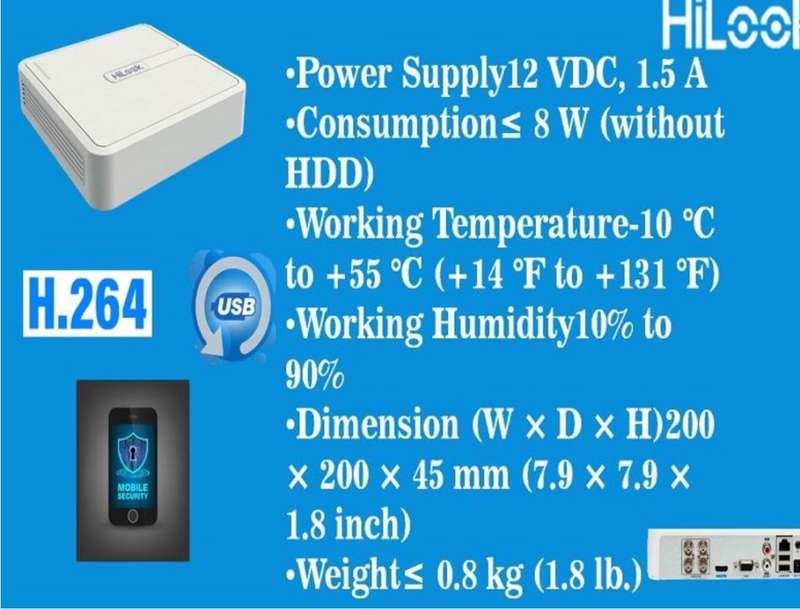

Power Supply
12 VDC, 1.5 A
Consumption
8 W (without HDD)
Working Temperature
-10 C to +55 C (+14 F to +131 F)
Working Humidity
10% to 90%
Dimension (W D H)
200 200 45 mm (7.9 7.9 1.8 inch)
Weight
0.8 kg (1.8 lb.)
What's in the box
1 x DVR
1 x Manual
1 x Mouse
1 x Power Cable
