Hilook 4CH 1080P Lite Mini 1U DVR

Recording

Video Compression

H.264+/H.264

Encoding Resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

When 1080p lite mode enabled:

1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

When 1080p lite mode not enabled:

For 720p stream access:

720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For SD stream access:

WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 4 Mbps

Dual-Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video And Audio

IP Video Input

1-ch (up to 5-ch)

Up to 1080p resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz

VGA Output

1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 K )

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 K )

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 K ) (using the audio input)

Synchronous Playback

4-ch

Network

Remote Connection

32

Network Protocol

TCP/IP, PPPoE, DHCP, Holovision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP , HTTPS, ONVIF

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1, SATA interface

Capacity

Up to 6 TB capacity for each disk

USB Interface

Rear panel: 2 USB 2.0

Alarm In/Out

N/A

General

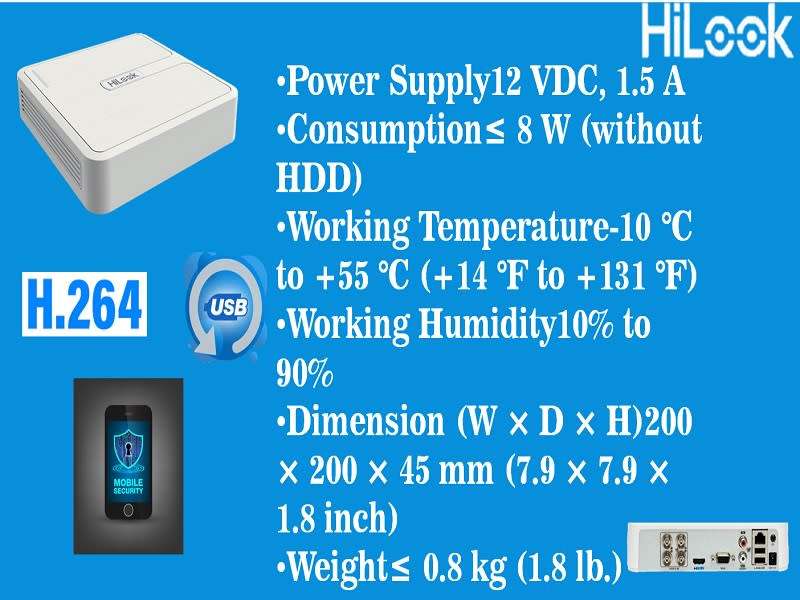

Power Supply

12 VDC, 1.5 A

Consumption

8 W (without HDD)

Working Temperature

-10 C to +55 C (+14 F to +131 F)

Working Humidity

10% to 90%

Dimension (W D H)

200 200 45 mm (7.9 7.9 1.8 inch)

Weight

0.8 kg (1.8 lb.
