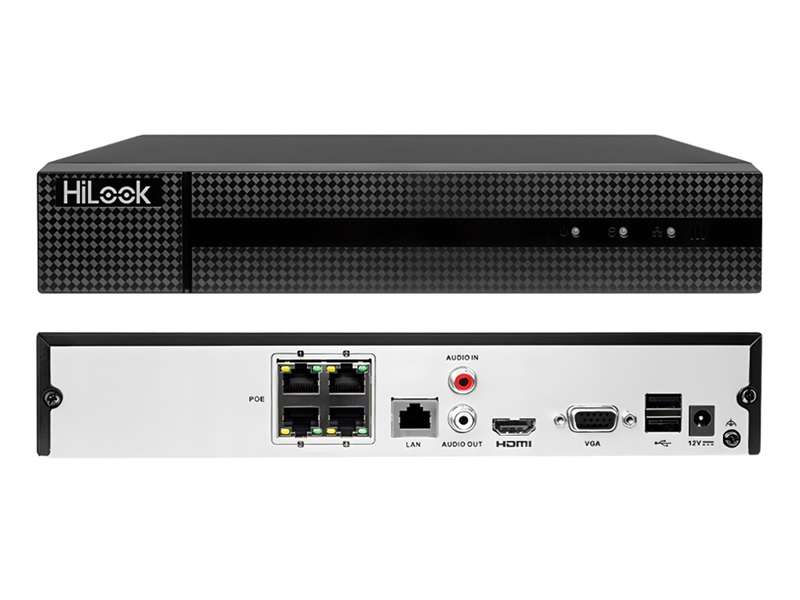

4-ch Mini 1U 4 PoE 4K NVR
Up to 4-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 40 Mbps incoming bandwidth
Video And Audio
IP Video Input
4-ch
HDMI Output
HDMI:,4K (3840 `d7 2160)/30Hz, 1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz,VGA: ,1920 `d7 1080/60Hz, 1600 `d7 1200/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz,
VGA Input
1920*1080/60Hz`a3`ac1280*1024/60Hz`a3`ac1280*720/60Hz
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80Mbps
Audio Output
1-ch, RCA (Linear, 1 K`d9)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1k`d9)
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264,MPEG4
Decoding Capability
1-ch @ 8 MP / 4-ch @ 1080p
Synchronous Playback
4-ch
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP`99, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
4-ch
Power
50 W
Standard
IEEE 802.3 af/at
RAID
RAID Type
No
Auxiliary Interface
SATA
1
Capacity
Up to 8TB capacity for each disk
USB Interface
2 `d7 USB 2.0
General
Power Supply
48 VDC, 1.35 A
Consumption
10 W (without enabling PoE)
Working Temperature
-10 to +55`b0 C (14 to 131`b0 F)
Working Humidity
10 to 90 %
Chassis
1U
Dimension (W `d7 D `d7 H)
265 `d7 225 `d7 48 mm (10.2" `d7 8.9" `d7 1.9")
Weight
1 kg (2.2 lb)
