HiLook 8CH Full CCTV Kit With 1TB HDD, Zatech Ready Cables, Junction Box

HiLook 8-channel full CCTV kit provides a complete HD analog surveillance setup, ideal for homes, shops, or small businesses. It includes 8 × 2MP fixed mini bullet cameras with 1080p resolution, smart IR up to 20m, IP66 weatherproof rating, . The 8CH DVR supports H.265 video compression, human and vehicle detection via Motion Detection 2.0, audio over coaxial, and up to 10 IP camera inputs (up to 5MP). Also included are a 1TB WD surveillance hard drive, 8 × Zatech ready-made RG59 cables, 8 × Zatech junction boxes, a Zatech 8CH power supply (DCW8P), and BNC/DC connectors-offering everything you need for a reliable and easy-to-install security system.

Camera

• Image Sensor2 MP CMOS image sensor
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 180 , Rotation: 0 to 360
• Lens
• Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
• Focal Length & FOV2.8 mm, horizontal FOV: 96.5 , vertical FOV: 48.9 , diagonal FOV: 120.5 3.6 mm, horizontal FOV: 76.9 , vertical FOV: 40.6 , diagonal FOV: 92.0
• Lens MountM12
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsAGC;Brightness;Smart IR;Mirror;Sharpness
• Frame RatePAL: 1080p @ 25 fpsNTSC: 1080p @ 30 fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC
• Noise Reduction2D DNR
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
• Video and Audio
• IP Video Input2-ch (up to 10-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )8-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback8-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth72 Mbps
• Remote Connection64
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

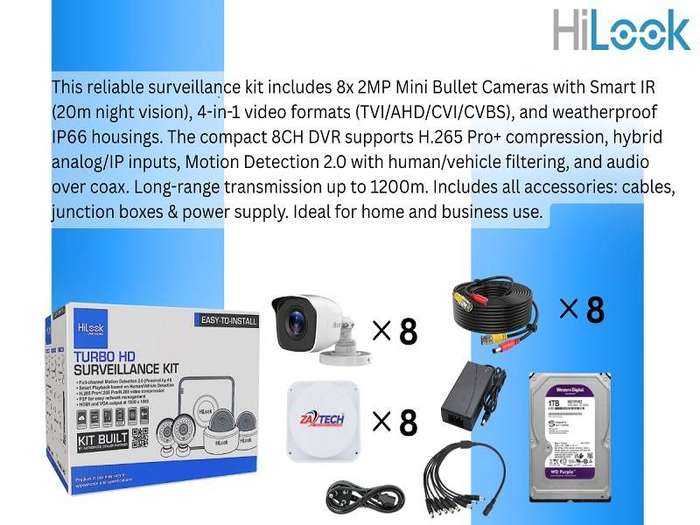

Whats in the box
8 x Hilook camera
1 x Hilook 8ch DVR
1 x 1 TB hdd

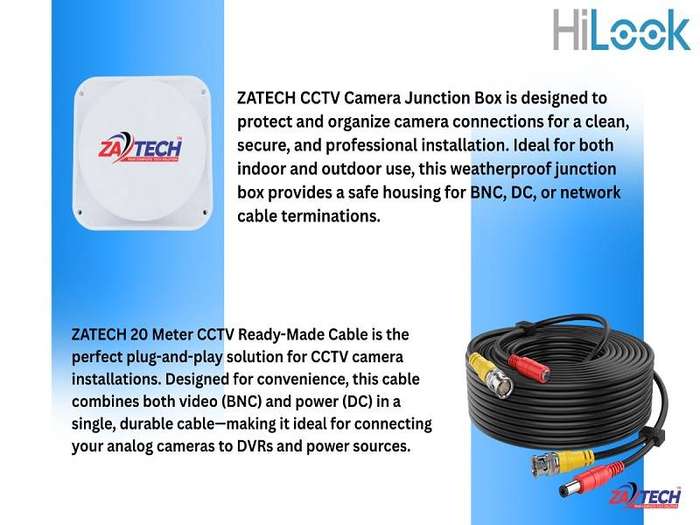

8 x Zatech Ready-made cable
8 x Zatech junction box
1 x Zatech power supply
1 x DCW8P
