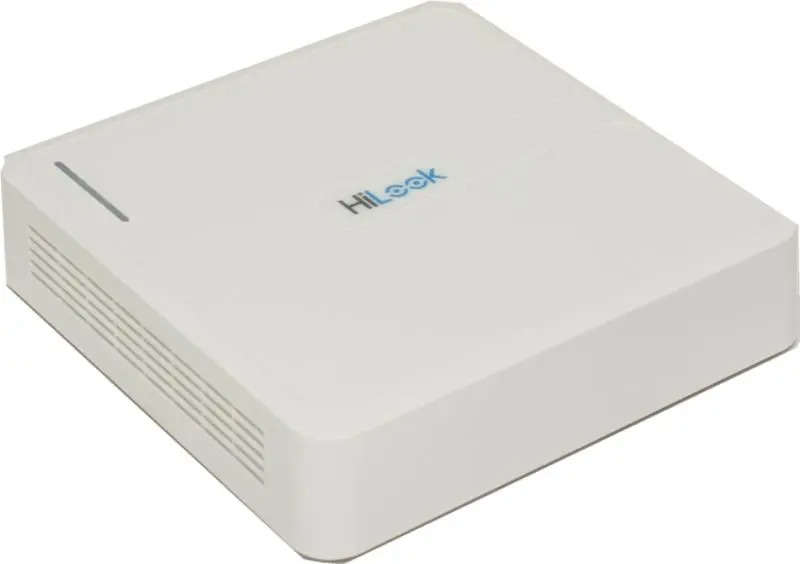

HiLook 8CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 ),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty Product OverviewHiLook 8CH Hybrid DVR High Definition Stand Alone DVR FeaturesH.265 Pro+/H.265 Pro/H.265 video compressionHDTVI/AHD/CVI/CVBS/IP video inputUp to 10-ch IP camera input (up to 5 MP) SpecificationsProduct code: DVR-108G-M1Description: HiLook 8CH Hybrid DVR High Definition Stand Alone DVRVideo Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIFMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)Support H.265+/H.265/H.264+/H.264 IP camerasBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connectionHDTVI Input:1080p25, 1080p30, 720p25, 720p30AHD Input: 1080p25, 1080p30, 720p25, 720p30HDCVI Input: 1080p25, 1080p30, 720p25, 720p30HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVideo Output Mode: HDMI/VGA simultaneous outputAudio Input: 1-ch RCA (2.0 Vp-p, 1 K)Audio Output: 1-ch, RCA (Linear, 1 K)TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS1, RJ45 10/100 Mbps self-adaptive Ethernet interfacePower Supply: 12 VDC, 1.5 A200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) 1 kg (without HDD, 2.2 lb.)
