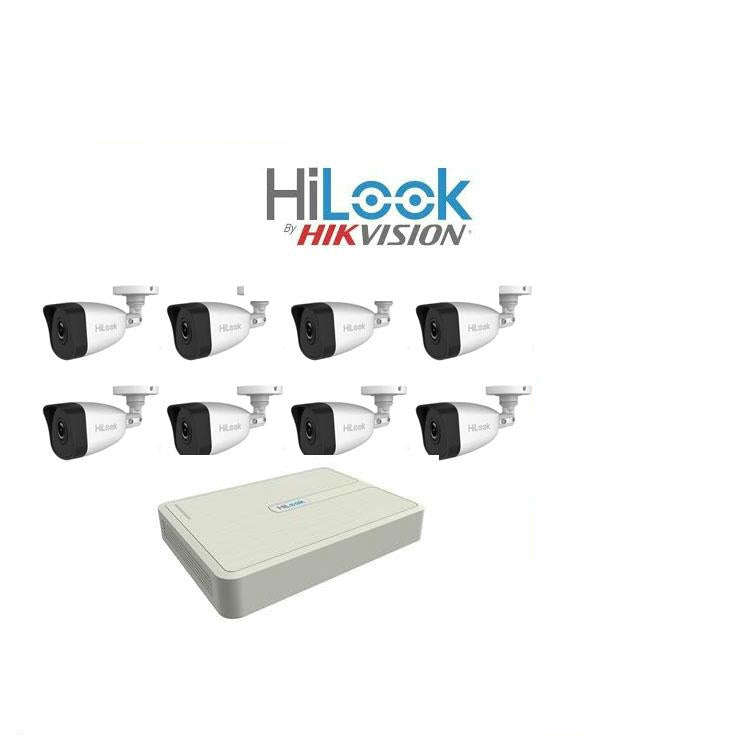

Kit contains

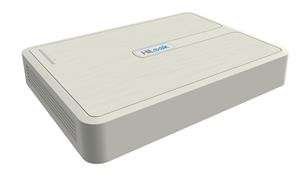

1 x Hilook 8ch NVR with 8 POE up to 4MP IP
8 x Hilook 2MP IP bullet cameras, 30m IR
1 x 2TB Hard drive
2 x 100m Cat5
2.0 MP CMOS Network Bullet Camera
Camera | ||
---|---|---|
Image Sensor: | 1/2.8" Progressive Scan CMOS | |
Min. Illumination: | Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR | |
Shutter time: | 1/3 s to 1/100, 000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm @F2.0, horizontal FOV 114, vertical FOV 62, diagonal FOV: 135 | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 to 360, tilt: 0 to 180, rotation: 0 to 360 | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | Digital WDR | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.264+/H.264/MJPEG | |
H.264 code profile: | Baseline profile/Main profile | |
Video bit rate: | 32Kbps~8Mbps |
Image | ||
---|---|---|
Max. Image Resolution: | 1920 x 1080 | |
Frame Rate: | 50Hz: 25fps @(1920 1080, 1280 960, 1280 720) 60Hz: 30fps @(1920 1080, 1280 960, 1280 720) | |
Sub Stream: | 50Hz: 25fps (640 480, 640 360, 320 240) 60Hz: 30fps (640 480, 640 360, 320 240) | |
Image Enhancement: | BLC, 3D DNR | |
Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
BLC: | Support | |
Day/Night Switch: | Day, Night, Auto, Scheduled |
Network | ||
---|---|---|
Alarm Trigger: | Motion detection, video tampering alarm, illegal login | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port |
Connectable to the third-party network cameras
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution
HDD quota and group modes; different capacity can be assigned to different channel
Supports multiple VCA(Video Content Analytics) events detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
8 independent 100 Mbps built-in switch network interfaces
Video/Audio Input | ||
---|---|---|
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1k) | |
IP video input: | 8-ch |
Network | ||
---|---|---|
Incoming bandwidth: | 60 Mbps | |
Outgoing bandwidth: | 40Mbps |
Video/Audio Output | ||
---|---|---|
HDMI/VGA output: | 1-ch, resolution: 1920 1080P /60Hz, 1600 1200 /60Hz, 1280 1024 /60Hz, 1280 720 /60Hz, 1024 768 /60Hz | |
Recording Resolution: | 4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF | |
Audio Output: | 1-ch, RCA (Linear, 1k) |
Decoding | ||
---|---|---|
Capability: | 2-ch@4 MP, 4-ch@1080p | |
Live view / Playback: | 4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF |
Hard Disk |
---|
