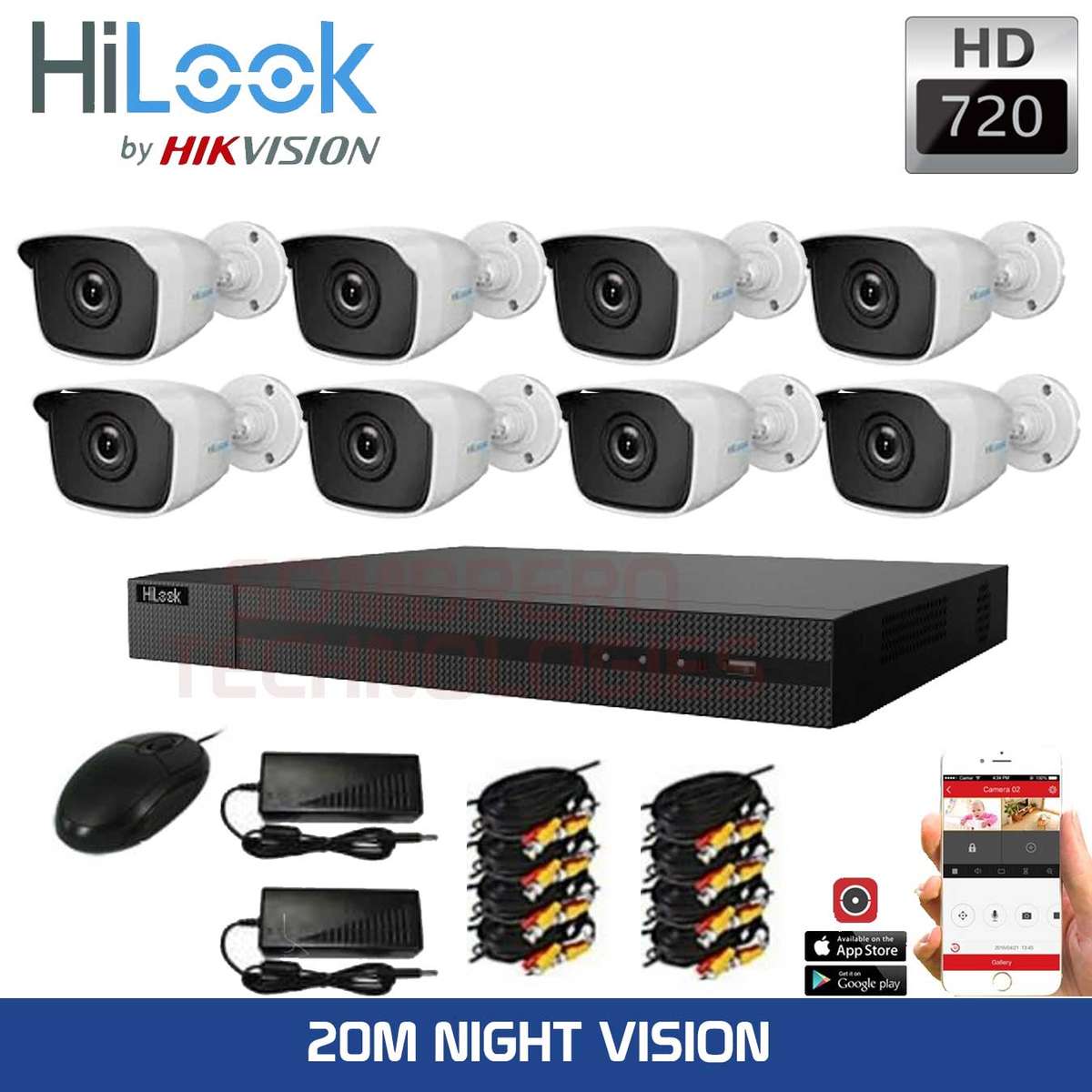

Kit Includes
1 x HiLook 8 channel TVI 1080P Lite Hydrid DVR With Smartphone and PC viewing
8 x HiLook 1 MP EXIR Bullet Camera, 20m IR Distance, IP66
8 x Cameras Brackets + Screws
8 x CCTV Cables
2 x Camera Power Supply + Splitter
1 x 8 Channel DVR
1 x DVR Power Supply
1 x DVR Mouse

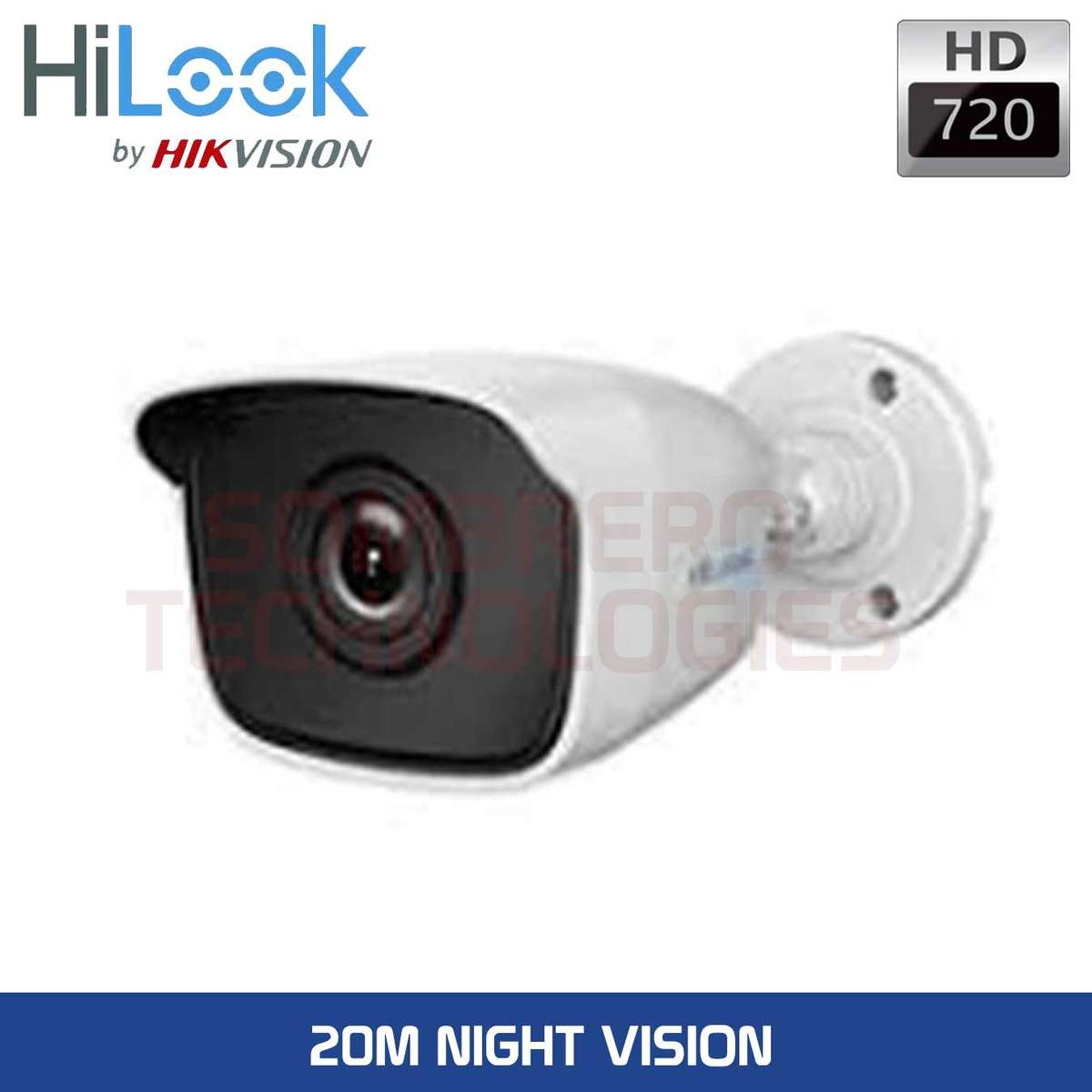

Camera | ||
---|---|---|
Image Sensor: | 1MP CMOS Image Sensor | |
Signal System: | PAL/NTSC | |
Effective Pixels: | 1280(H)*720(V) | |
Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 to 360, Tilt: 0 to 180, Rotation: 0 to 360 | |
Day& Night: | IR cut filter with auto switch | |
Video Frame Rate: | 720p@25fps/720p@30fps | |
HD Video Output: | 1 Analog HD output | |
Synchronization: | Internal Synchronization |
General | ||
---|---|---|
Operating Conditions: | -40 C - 60 C (-40 F - 140 F) Humidity 90% or less (non-condensing) | |
Power Supply: | 12 VDC15% | |
Weather Proof: | IP66 | |
IR Range: | Up to 20m | |
Dimension: | 165 mm 62 mm 58 mm (6.50" 2.44" 2.28") | |
Weight: | 400 g (0.88 lb.) |

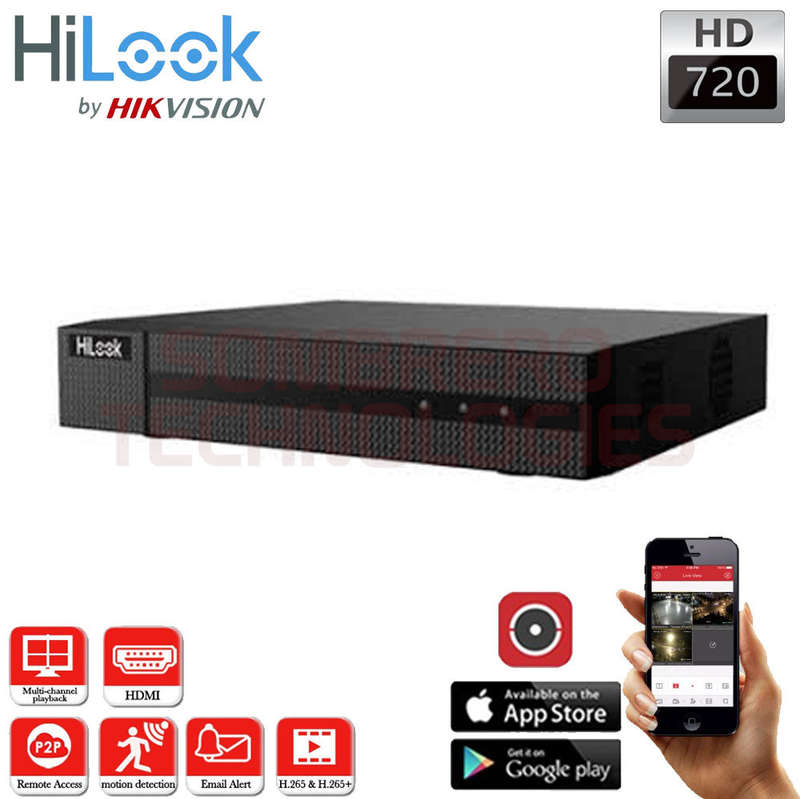

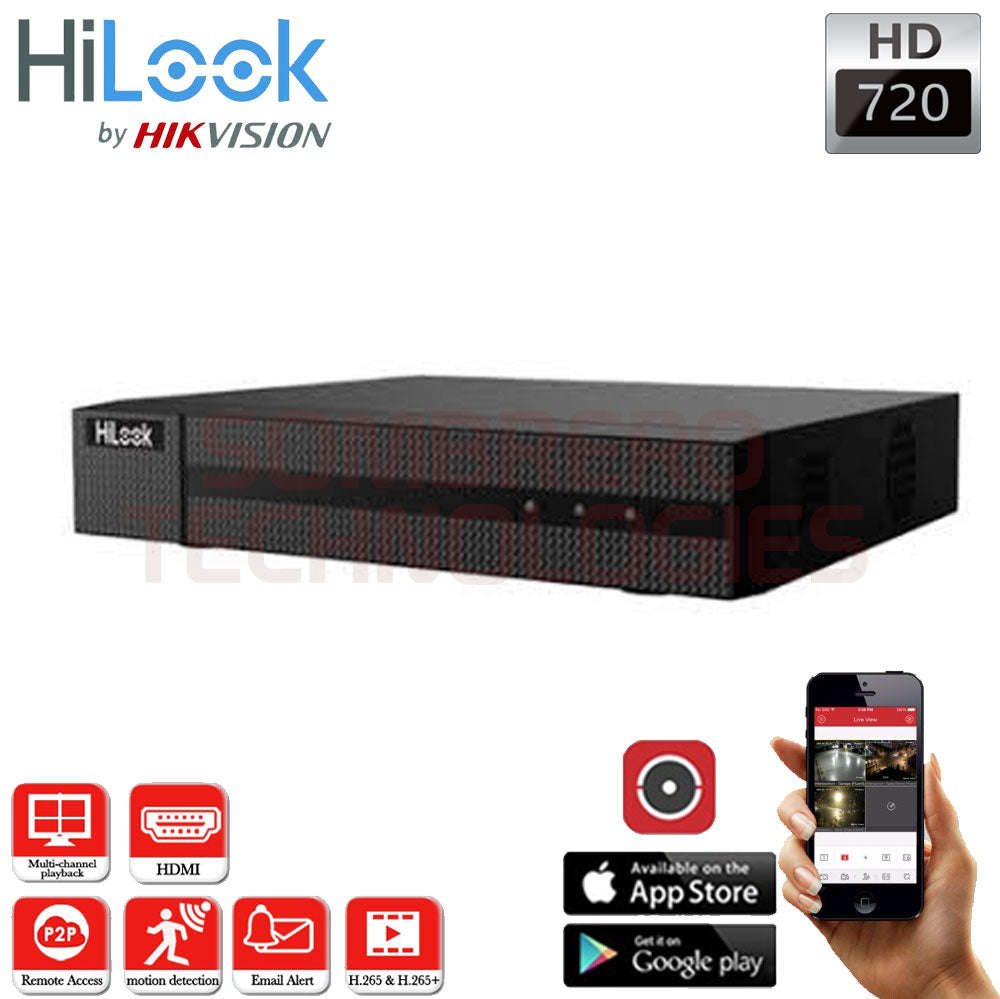

Turbo HD DVR
Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
Long distance transmission over UTP and coaxial cable
One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
HDMI/VGA output at up to 1920 1080 resolution
One SATA interface (up to 6 TB capacity per HDD)
4/8/16-ch synchronous playback
Smart search for efficient playback
Video/Audio Input | ||
---|---|---|
Audio Input: | 1-ch | |
Video Compression: | H.264,H.264+ | |
Analog Video Input: | 8-ch | |
Supported camera types: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input | |
IP Video Input: | 2-ch (up to 10-ch) | |
Video Input Interface: | BNC (1.0 Vp-p, 75) | |
IP Video Input Resolution: | Up to 960p resolution | |
Audio Compression: | G.711u | |
Audio Input Interface: | RCA (2.0 Vp-p, 1 k) | |
Two-way Audio: | 1-ch BNC(2.0Vp-p, 1k) |
Video/Audio Output | ||
---|---|---|
HDMI/VGA Output: | 1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz | |
Recording resolution: | When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
Frame Rate: | Main stream: When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
Stream Type: | Video/Video&Audio | |
Audio Output: | 1-ch RCA(Linear, 1k) | |
Dual Stream: | Support | |
Synchronous Playback: | 8-ch |
Network management | ||
---|---|---|
Remote connections: | 128 | |
Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS |
