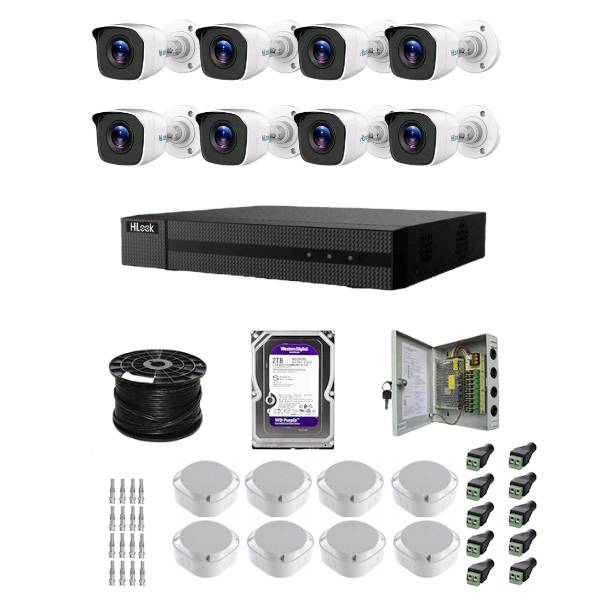

HiLook CCTV Camera Kit with 2TB HDD / 8 Cameras / 8 Junction Boxes / 100M Cable / Connectors / PSU
Kit Includes:
1 x HiLook DVR-208G-F1 DVR with Mouse and PSU

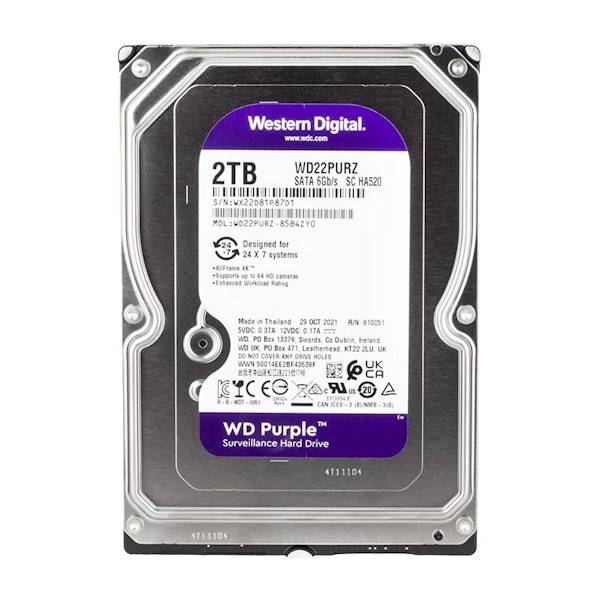

1 x 2TB Western Digital Hard Drive - WD Purple
8 x HiLook THC-B120-PC Analog 2MP 1080P Bullet Cameras

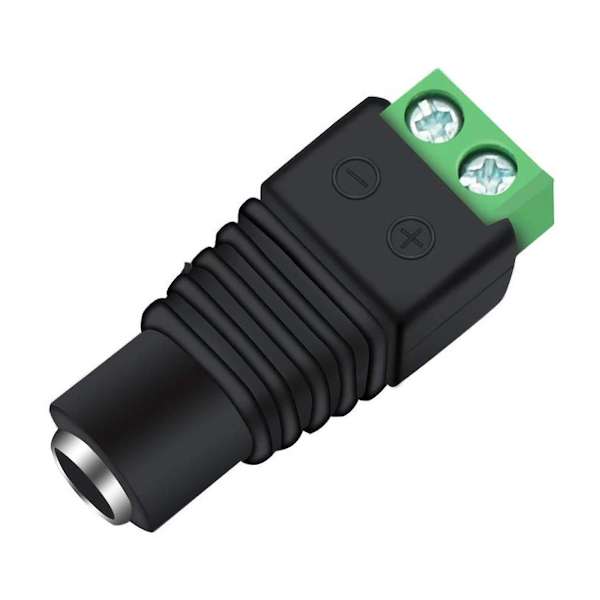

8 x DC Connectors

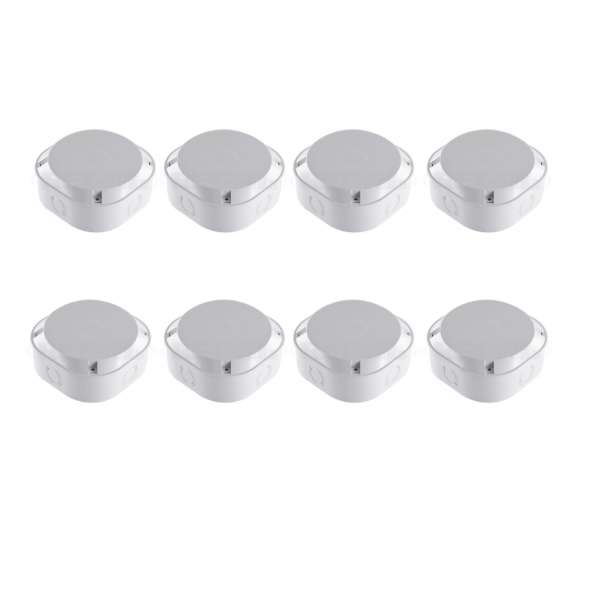

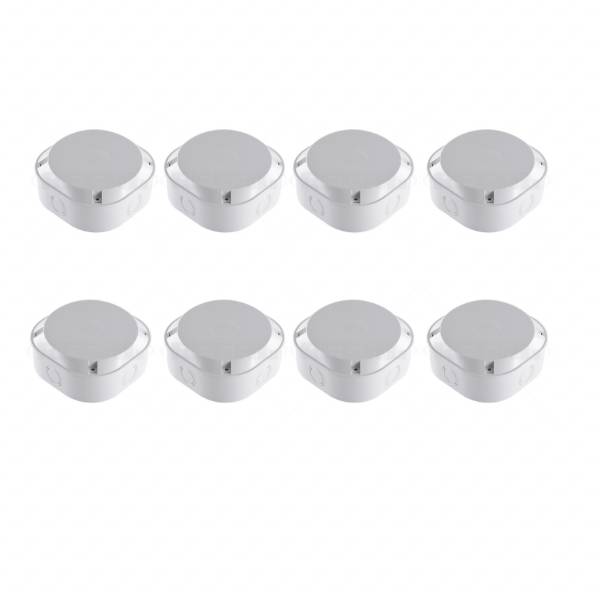

8 x Junction Boxes - 122MM x 122MM x 50MM

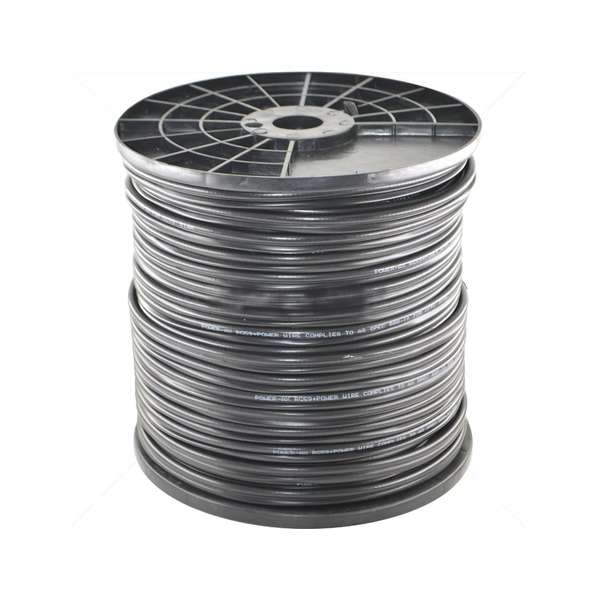

1 x 100M RG59 Coaxial Cable

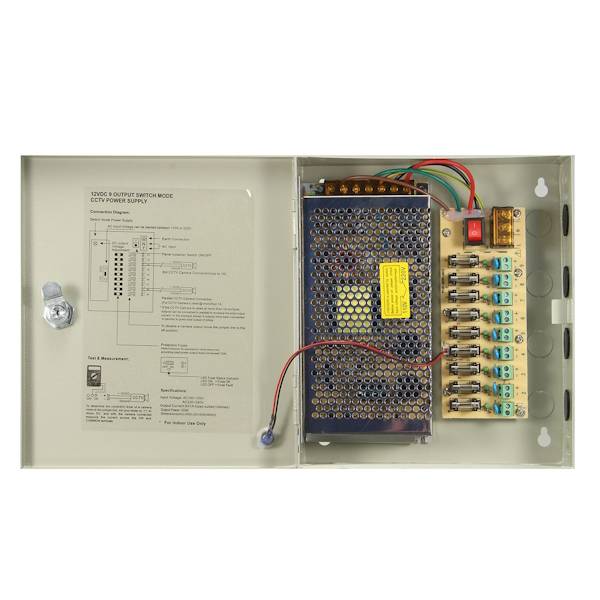

1 x 8 Channel Power Supply Box - 10A

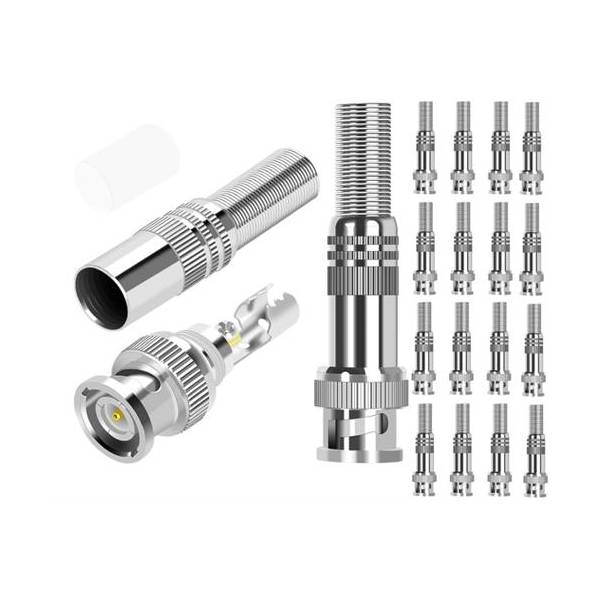

16 x BNC Connectors

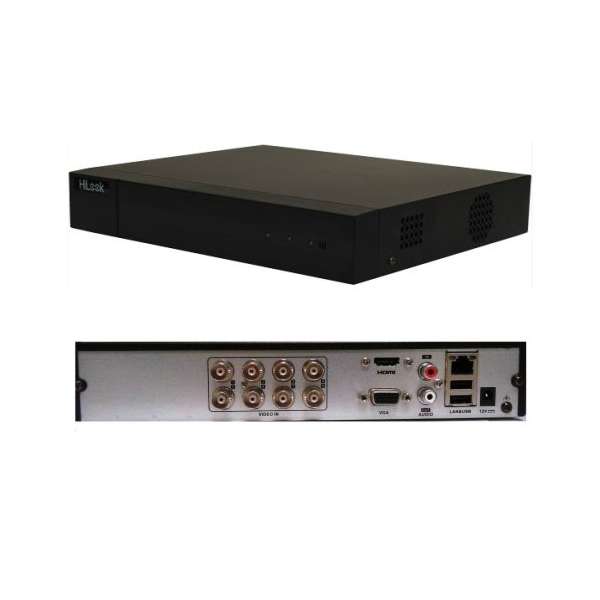

HiLook DVR-208G-F1 DVR:
Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
Long distance transmission over UTP and coaxial cable
One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
HDMI/VGA output at up to 1920 × 1080 resolution
One SATA interface (up to 6 TB capacity per HDD)
4/8/16-ch synchronous playback
Smart search for efficient playback
Video/Audio Input
Audio Input: 1-ch
Video Compression: H.264,H.264+
Analog Video Input: 8-ch
Supported camera types: Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30
Support AHD input: 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
IP Video Input: 2-ch (up to 10-ch)
Video Input Interface: BNC (1.0 Vp-p, 75)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 k)
Two-way Audio: 1-ch BNC(2.0Vp-p, 1k)
Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate:
Main stream:
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1k)
Dual Stream: Support
Synchronous Playback: 8-ch
Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12 VDC
Consumption: 12 W
Working Temperature: -10 °C to +55 °C
Working Humidity: 10% to 90%
Dimensions: 260 × 222 × 45 mm
Weight: Less than 1 kg

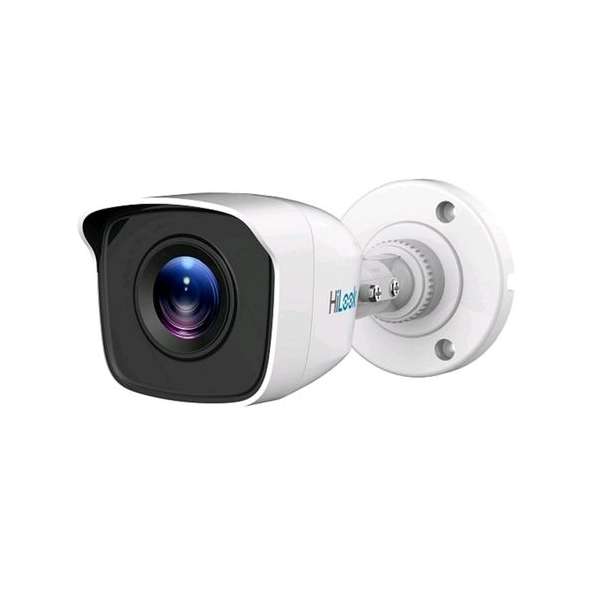

THC-B120-PC Analog 2MP 1080P Bullet Cameras:
Camera
Lens Mount M12
Day & NightIR cut filter
Synchronization Internal synchronization
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Effective Pixels 1920 (H) × 1080 (V)
Image Sensor 2 MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Menu
AGC High/Medium/Low/Off
Day/Night Mode Auto/Color/BW (Black and White)
Backlight Compensation Support
DWDR (Digital Wide Dynamic Range) Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Condition -40 °C to 60 °C, Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions 165 mm × 62 mm × 58 mm
